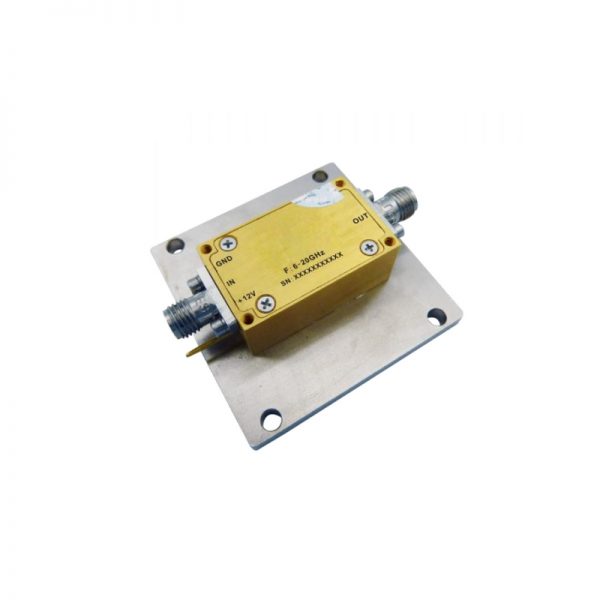

Ultra Wide Band Low Noise Amplifier From 6GHz to 20GHz With a Nominal 45dB Gain NF 2.5dB SMA-Female Connectors

Ultra Wide Band Low Noise Amplifier From 6GHz to 20GHz With a Nominal 45dB Gain NF 2.5dB SMA-Female Connectors

0 out of 5

• Gain: 45dB Typical
• Noise Figure: 2.5dB Typical
• P1dB Output Power: 22dBm Typical
• Supply Voltage: 12V

SKU: OLNA306002000A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 45dB Typical
• Noise Figure: 2.5dB Typical
• P1dB Output Power: 22dBm Typical
• Supply Voltage: 12V



Data Sheet ( Download Datasheet PDF )

180-OLNA306002000A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

6

Max. Pass Band Frequency (GHz)

20

Gain (dB)

45

NF (dB)

2.5

P1dB (dBm)

22

IP3 (dBm)

26

VSWR

1.8

"Voltage (VDC)"

12

"Current (mA)"

250

Connection Type

SMA-Female
