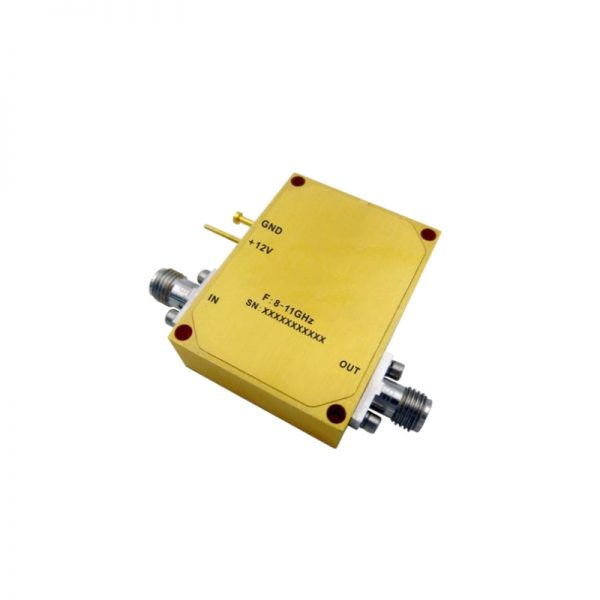

Ultra Wide Band Low Noise Amplifier From 8GHz to 11GHz With a Nominal 45dB Gain NF 4dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 8GHz to 11GHz With a Nominal 45dB Gain NF 4dB SMA Connectors

• Gain: 45dB Typical
• Noise Figure:2.5dB Typical
• P1dB Output Power: +29dBm Typical
• Supply Voltage: +12V
• 50Ohm Matched

SKU: OLNA208001100A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 45dB Typical
• Noise Figure:2.5dB Typical
• P1dB Output Power: +29dBm Typical
• Supply Voltage: +12V
• 50Ohm Matched



Data Sheet ( Download Datasheet PDF )

007-OLNA208001100A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

8

Max. Pass Band Frequency (GHz)

11

Gain (dB)

45

NF (dB)

4

P1dB (dBm)

27

IP3 (dBm)

37

VSWR

2

"Voltage (VDC)"

12

"Current (mA)"

390

Connection Type

SMA
