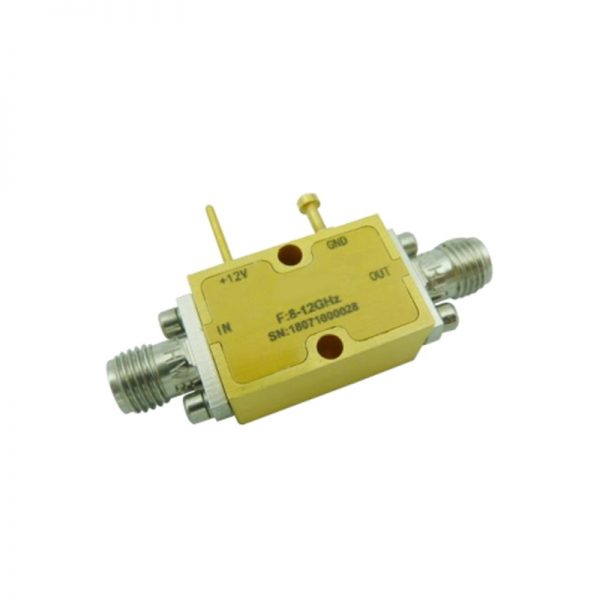

Ultra Wide Band Low Noise Amplifier From 8GHz to 12GHz With a Nominal 32dB Gain NF 2dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 8GHz to 12GHz With a Nominal 32dB Gain NF 2dB SMA Connectors

0 out of 5

• Gain: 31dBtypical
• Noise Figure: 2.0dB typical
• High P1dB: +19.5dBmtypical
• Supply Voltage: +12V

SKU: OLNA208001200C Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 31dBtypical
• Noise Figure: 2.0dB typical
• High P1dB: +19.5dBmtypical
• Supply Voltage: +12V



Data Sheet ( Download Datasheet PDF )

013-OLNA208001200C



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

8

Max. Pass Band Frequency (GHz)

12

Gain (dB)

32

NF (dB)

2

P1dB (dBm)

19.5

IP3 (dBm)

28

VSWR

1.5

"Voltage (VDC)"

12

"Current (mA)"

200

Connection Type

SMA
