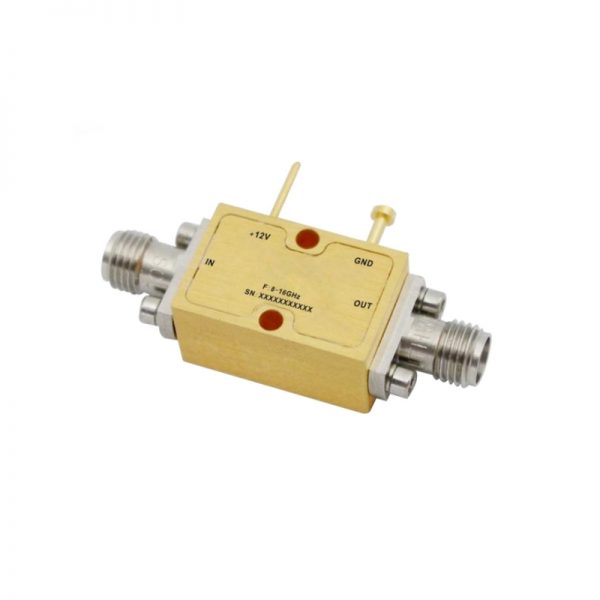

Ultra Wide Band Low Noise Amplifier From 8GHz to 16GHz With a Nominal 35dB Gain NF 1.5dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 8GHz to 16GHz With a Nominal 35dB Gain NF 1.5dB SMA Connectors

0 out of 5

• Gain: 40dB Typical
• Noise Figure: 1.7dB Typical
• Output P1dB: +16dBm Typical
• Supply Voltage: +12V

SKU: OLNA208001600A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 40dB Typical
• Noise Figure: 1.7dB Typical
• Output P1dB: +16dBm Typical
• Supply Voltage: +12V



Data Sheet ( Download Datasheet PDF )

019-OLNA208001600A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

8

Max. Pass Band Frequency (GHz)

16

Gain (dB)

35

NF (dB)

1.5

P1dB (dBm)

16

IP3 (dBm)

26

VSWR

1.6

"Voltage (VDC)"

12

"Current (mA)"

160

Connection Type

SMA
