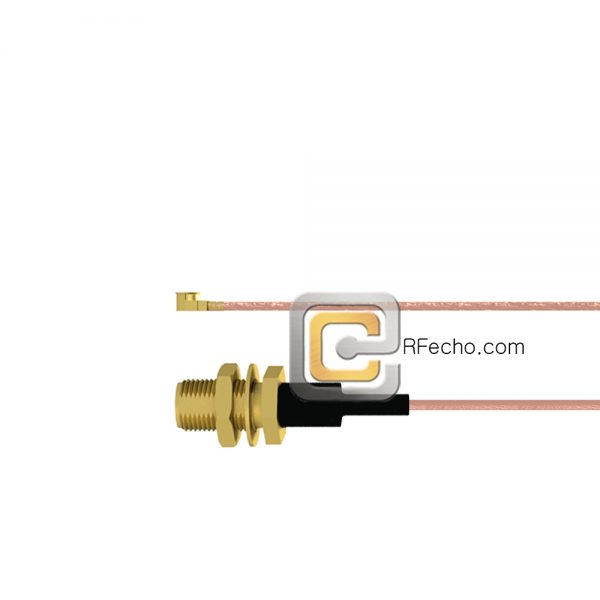

UMCX 2.5 Plug to SMA Female Bulkhead RG-178DS Coax and RoHS F075-451S0-320S1-30-N

UMCX 2.5 Plug to SMA Female Bulkhead RG-178DS Coax and RoHS F075-451S0-320S1-30-N

0 out of 5

RFecho UMCX 2.5 (also known as 2.5mm UMCX) ultra-miniature cable assemblies have a mated connection height of 2.5mm. They are constructed using a flexible micro-coax cable and are comparable in design to Hirose U.FL®, IPEX MHF® as well as other UMCX connector and cable manufactures. Fairview’s other UMCX 2.1, WMCX 1.6 and HMCX32 1.2 connectors are also available for use on our 0.81mm in-series micro-coax jumpers.

These UMCX 2.5 are available in the following coax types; 0.81mm, 1.13mm, RG178 and RG178-DS.Custom lengths are also available upon request with slightly longer lead times

SKU: F075-451S0-320S1-30-N Categories: E-System FLEX, RF Cables, RG-178-DS

Description

PDF

Additional information

Cable Type

RG-178DS

Cable Coax Type

Flexible

Cable Armour

None

Connector 1

UMCX 2.5

Connector 1 Gender

Male

Connector 1 Body Style

Straight

Connector 1 Mounting Method

None

Connector 1 Connection Method

Standard

Connector 2

SMA

Connector 2 Gender

Female

Connector 2 Body Style

Straight

Connector 2 Mounting Method

Bulkhead

Connector 2 Connection Method

Standard
