Solid State Power Amplifier vs. Traditional Amplifiers: What’s the Difference?

Introduction to Amplifiers

What Is an Amplifier?

An amplifier is a key component in communication and RF systems that increases the power of a signal without altering its information. It can be observed from broadcasting to satellite communications and radar systems, where amplifiers help signals to stay constant over long distances or through complex systems. Amplifiers need to be used to increase signal-to-noise ratio, improve transmission quality, and permit devices to operate effectively within a frequency band.

Types of Amplifiers in RF Systems

RF amplifiers exist in various forms based on their application. They are Low Noise Amplifiers (LNAs), Power Amplifiers (PAs), and Solid State Power Amplifiers (SSPAs). LNAs, as the name suggests, amplify weak signals with minimal added noise, whereas PAs are utilized to increase signals to high power for transmission. SSPAs, discussed in detail below, are a novel replacement for the conventional vacuum tube-based amplifiers.

What is a Solid State Power Amplifier (SSPA)?

Solid State Power Amplifiers (SSPAs) are high-performance amplifying devices using semiconductor technology—typically gallium nitride (GaN) or gallium arsenide (GaAs)—to deliver high output power with high reliability and efficiency. SSPAs do not contain moving parts or filaments compared to vacuum tubes and are made of solid-state components only.

Key Features of RFecho SSPAs

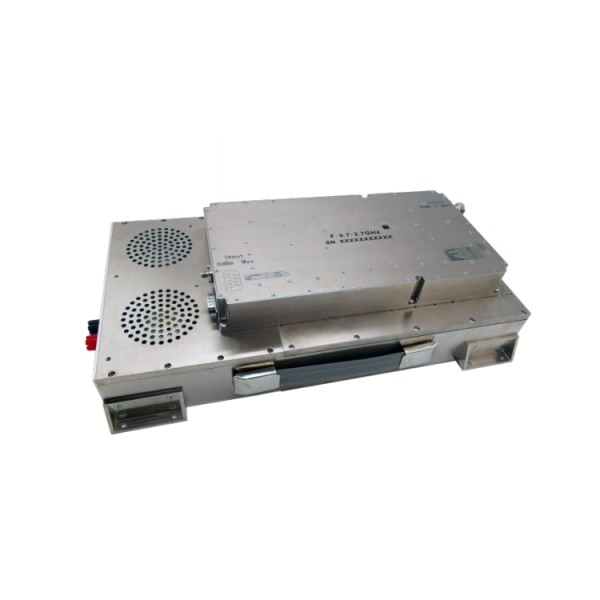

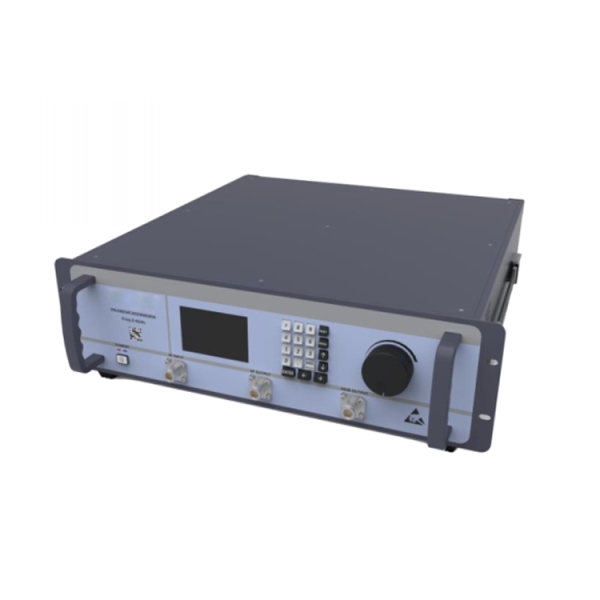

RFecho Ultra Wide Band Power Amplifiers and EMC Benchtop Power Amplifiers have varied specifications for demanding RF applications. EMC Power Amplifier – 6GHz~18GHz , for instance, has an output power of 100W in a frequency range of 0.8GHz to 3GHz. The products are aimed at high linearity and reliability for continuous usage. RFecho’s active device product line includes not only power amplifiers, but also low noise amplifiers, signal generators, spectrum test products, and switches, in a full line of RF system integration solutions.

How SSPAs Work

SSPAs function by the method of transforming DC power into RF energy using transistors in gain stages. The signal is built up step by step at every stage to the level of output desired. It is engineered to deliver equal amplification across wide frequency ranges with as little distortion and thermal stress as possible.

Amplifiers Described as Traditional

Vacuum Tube Amplifiers Description

Before solid-state technology was invented, vacuum tube amplifiers were the norm. They work by amplifying signals with electron tubes by controlling electron flow between electrodes in a vacuum-sealed glass bulb. While they were sufficient at the time, they suffer from various disadvantages such as size, brittleness, and high maintenance.

Common Features of Old Models

Classical amplifiers typically employ bulkier cooling systems due to the generation of heat from filaments. They also require shorter operational lifetimes and are more susceptible to vibrations. Their efficiency is also poorer compared to newer technologies like SSPAs.

Main Differences between SSPA and Classical Amplifiers

Technology and Devices Used

SSPAs employ solid-state semiconductors such as GaN or GaAs transistors to perform the amplifying, whereas traditional models employ vacuum tubes with hot cathodes and high voltage.

Size Comparison and Weight

One of the greatest advantages of SSPAs is compactness. RFecho benchtop units require less space with their small form factors that are best suited for use in labs or mobile field applications—compared to tube-based units, which require much space and large housings.

Efficiency and Power Consumption

SSPAs also consume less power with less heat generated and greater efficiency in the conversion of DC input to RF output power. That means lower operating cost in the long run than traditional amplifiers that waste a lot of power as heat.

Reliability and Maintenance Requirements

Because there are no glass filaments or tubes that burn out or become broken, SSPAs withstand more rugged conditions. RFecho designs solid-state with a concentration on long-term reliability, and maintenance and downtime are considerably reduced.

Advantages of Using RFecho Solid State Power Amplifiers

Low Heat Emission and High Efficiency

RFecho Ultra Wide Band Power Amplifiers are tailored for efficient thermal management, with stable operation even through prolonged maximum rated power use.

Compact Size for Space Conservation

Benchtop design facilitates easy incorporation of such amplifiers in installed communications systems or test benches without the requirement of support infrastructure—a welcome feature in space-constrained or field-deployed environments.

Reliability and Long-Term Durability

With rugged material construction and advanced circuit protection schemes, RFecho SSPAs like Model-OACPA18002800A–18GHz~28GHz experience extended life even when subjected to harsh environmental conditions typical of military or industrial applications.

Applications of RFecho SSPAs

Application in Communication Systems

Solid-state power amplifiers play their part in wireless communication infrastructure in the form of amplification of transmission signals in cellular networks, Wi-Fi networks, and broadcasting stations. RFecho’s products have a wideband to cater to different frequency standards across the world.

Role in Radar and Military Equipment

Requirements of fast response and high peak power output that are easily met by RFecho’s rugged SSPA designs with assured operation under harsh conditions of swift pulsing characteristic of defense applications.

Integration in Satellite Ground Stations

Satellite uplinks demand reliable high-power RF signals; SSPAs deliver these without the upkeep issues of older tube-based systems. With products for a broad frequency range coverage, RFecho serves both commercial satellite providers and government space programs with equal ease.

Selecting the Appropriate Amplifier for Your Application

Factors to Consider Before Buying

In selecting an amplifier, output power requirements, frequency operating range, linearity needs (especially for digital modulations), cooling needs, size and space constraints, and cost must be considered. Environmental considerations like exposure to temperature extremes or vibration affecting life must also be considered.

Comparing Performance Metrics

They include some of the most important parameters like gain flatness over bandwidths, total harmonic distortion (THD), mean time between failures (MTBF), VSWR ratings for input/output, noise figure (for low-noise types), P1dB compression point (for linearity), and full load operation efficiency ratings. RFecho provides full datasheets on all the models available so that customers can reasonably compare them against application-specific requirements.

FAQ

Q: Why are SSPAs more reliable than vacuum tube SSPAs?

A: SSPAs contain no moving parts or fragile elements like glass envelopes; they use rugged semiconductors that last longer under harsh conditions with minimal maintenance.

Q: Can RFecho’s SSPA products be utilized in EMC test applications?

A: Indeed! RFecho offers EMC Benchtop Power Amplifier types that are particularly designed for electromagnetic compatibility testing of wide bandwidths with stability of the output characteristics.

Q: Are these amplifiers suitable for portable field use?

A: Yes—because of their compact benchtop size and efficient cooling design, RFecho models fit most mobile labs or field installations where the amount of space to install is limited but the need for performance isn’t.

Q: Where do I find more information on specific amplifier models?

A: You may browse the complete range of products like power amplifiers at the website of RFecho, where you will be able to access data sheets, technical datasheets, user manuals, and even custom solutions if needed!
