What Are Standard Gain Horn Antennas and Their Accessories?

Standard gain horn antenna are key for sending and receiving signals in microwave and millimeter-wave systems. They’re great for tasks like 5G testing or building radar for aerospace projects. So, what makes standard gain horn antennas so special? They’re reliable, give steady performance, and work across many frequencies.

This blog will explain what standard gain horn antennas are, their main features, useful add-ons, and why RFecho is a top choice for these products. We’ll also answer common questions to help you pick the best antenna for your needs. Let’s dive in!

Key Features of Standard Gain Horn Antennas

Standard gain horn antennas are built for accuracy and top-notch results. Let’s look at what makes them so effective.

Frequency Range and Waveguide Compatibility

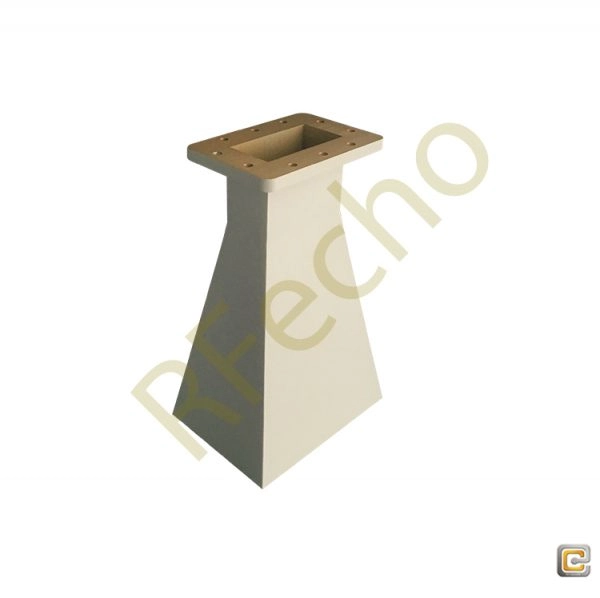

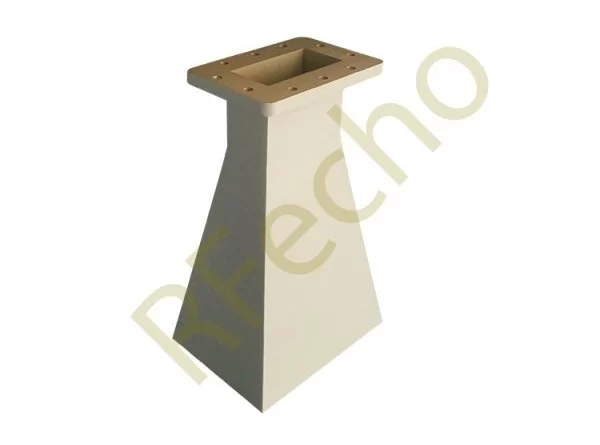

A big strength of a standard gain horn antenna is its ability to work across a wide range of frequencies, from 1 GHz to over 40 GHz. This makes them super flexible for jobs like low-frequency radar or high-frequency 5G testing. For example, RFecho’s WR-340 model handles 2.2–3.3 GHz. Meanwhile, the WR-28 model works at 26.5–40 GHz, perfect for 5G or satellite tasks.

These antennas connect easily to standard waveguide flanges like UG or CPR. This means you can hook them up to your RF setup without hassle. It saves time and effort during installation.

Gain and Directivity Performance

Standard gain horn antennas are known for steady gain and great focus. They usually offer gains from 10 dBi to 25 dBi. Need something stronger? Higher-gain options exist. For example, RFecho’s 10 dBi WR-159 antenna works well for mid-range frequencies.

Their narrow beamwidth, often 30° to 50° in the E-plane and H-plane, keeps signals tight and clear. This focus is great for tasks like radar or EMC testing, where you want to avoid interference.

Durability and Design

Standard gain horn antennas are tough and built to last. Many, like RFecho’s models, use lightweight aluminum for easy carrying. Others use brass for handling high power. If you need them outdoors, you can add weatherproof coatings or radomes for protection against rain and dust. These features make the antennas strong for both lab and field work.

Low VSWR and High Efficiency

A low VSWR, usually below 1.5:1, means less signal bounce-back. This keeps your system running smoothly. Plus, most standard gain horn antennas are up to 95% efficient. That’s great for getting the most out of your RF setup.

Popular Standard Gain Horn Antenna Accessories

To make your standard gain horn antenna work even better, you’ll need some add-ons. These tools improve performance, make setup easier, and keep your equipment safe. Here’s a quick look at the top accessories.

Waveguide Adapters and Flanges

Waveguide adapters and flanges help your standard gain horn antenna connect to other RF gear. Common types include UG-387 and CPR-137. You can also get custom ones. These let your antenna work with different waveguide sizes. For example, if you’re using RFecho’s WR-28 antenna for millimeter-wave tests, a matching flange makes the connection smooth and secure.

Mounting Solutions

Good mounting is key for accurate tests. Tripods with adjustable heights work well in labs or out in the field. They keep your antenna steady. Gimbals let you tweak the antenna’s position for perfect alignment. This ensures your standard gain horn antenna performs at its best.

Protective Accessories

If you’re using your antenna outdoors or in tricky settings, protective gear is a must. Radomes, made of materials like polycarbonate, shield your antenna from dust and water. RF absorbers help cut down on signal interference, giving you cleaner results during tests.

Polarization Converters

For jobs like satellite communication, polarization converters are super helpful. They let you switch between linear and circular polarization. This makes your standard gain horn antenna more versatile, especially for advanced projects like 5G or satellite systems.

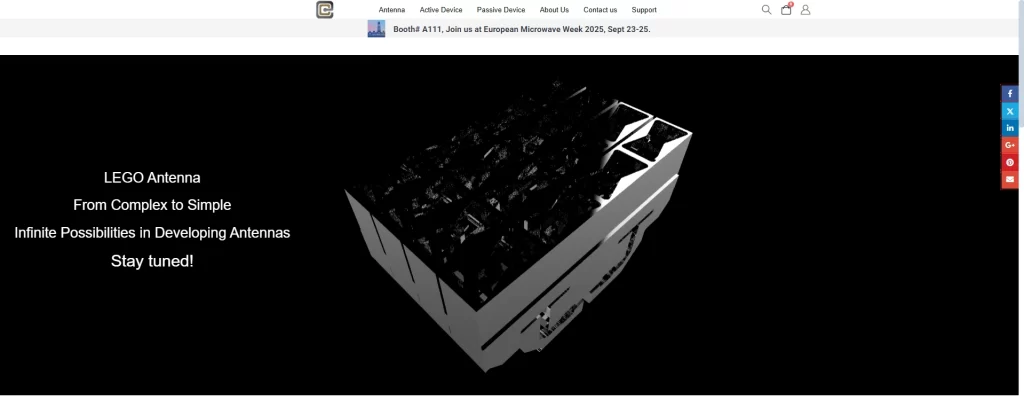

About RFecho: Your Trusted Horn Antenna Supplier

When you need a standard gain horn antenna, RFecho is a name you can trust. They focus on making high-quality antennas with super precise designs.

Their products have tight tolerances, meaning the gain stays steady (within ±0.1 dB). Whether you want a standard model like the 10 dBi WR-340 antenna or a custom one for a specific frequency (1–110 GHz), gain (up to 30 dBi), or connector (SMA, N-type, or waveguide), RFecho can deliver.

RFecho’s antennas meet tough global standards like MIL-STD-810, ISO 9001, and RoHS. This makes them reliable for aerospace, defense, and commercial projects. They keep popular models in stock for quick shipping. Plus, their RF experts are ready to help with technical questions or custom orders.

Why Choose RFecho for Your Horn Antenna Needs?

RFecho stands out in the RF world for good reasons. Here’s why engineers and buyers pick RFecho for their standard gain horn antenna needs:

• Careful Manufacturing: RFecho makes antennas with great attention to detail. This ensures steady performance every time.
• Custom Options: They offer antennas tailored to your frequency, gain, or connector needs.
• Global Standards: Their products meet strict rules, making them safe for big projects.
• Quick Shipping: RFecho stocks popular models for fast delivery.
• Expert Help: Their RF team is always ready to answer questions or design custom solutions.

FAQs About Standard Gain Horn Antennas

What is a standard gain horn antenna?

A standard gain horn antenna is a focused antenna for microwave and millimeter-wave tasks. It has steady gain, low VSWR, and high efficiency. It’s perfect for EMC testing, radar, or 5G research.

What frequencies do standard gain horn antennas cover?

They work from 1 GHz to over 40 GHz.

What add-ons do I need for a standard gain horn antenna?

You’ll want waveguide adapters, mounting tools like tripods or gimbals, radomes for protection, and polarization converters for special tasks like satellite work.

How do I pick the right standard gain horn antenna?

Think about your frequency needs, gain goals, and project type (like 5G or EMC testing). RFecho’s team can help you choose or build a custom antenna.

Explore RFecho’s Standard Gain Horn Antenna Solutions

Ready to boost your RF testing or communication setup with a standard gain horn antenna? RFecho offers a wide range of SGHAs and add-ons for engineers, researchers, and buyers. Whether you’re working on 5G, radar, or EMC testing, RFecho has the right tools for you.

• Shop Now: Check out RFecho’s standard gain horn antenna collectionto find the perfect model.
• Need Help?Reach out to RFecho’s RF experts for custom quotes or support at https://www.rfecho.com/.
• Stay Informed: Sign up for RFecho’s newsletter for guides, whitepapers, and tips on 5G and RF testing.

Choose RFecho for quality, reliability, and top performance in your RF projects!
