Which Satellite Antenna Can Meet Your Communications Requirements?

Learning About Satellite Antennas

What is a Satellite Antenna?

A satellite antenna is a device that is employed to receive and transmit radio frequency signals to and from space-based satellites orbiting around the Earth. Satellite antennas are the essential link between satellite-based systems in space and earth-based communications networks, and enable anything from television broadcasting to internet availability and GPS navigation to function. It takes electromagnetic waves from satellites and converts them into electric signals, which may be processed by receivers, or it takes electric signals and converts them into radio waves in order to send them to satellites.

How Do Satellite Antennas Work?

Satellite antennas operate based on the fundamental principles of electromagnetic wave propagation. A satellite, when it transmits a signal, radiates electromagnetic energy through a frequency band. The antenna on the ground must be precisely pointed in the direction the satellite is located to efficiently receive the signals. The reflector surface or radiating elements of the antenna focus incident radio waves onto a feed horn or receiver, which transforms the electromagnetic energy into electrical signals for processing.

The process efficiency depends on several parameters such as the size of the antenna, shape, and material. RF horn antennas use Al or Cu, which is very good in terms of conductivity as well as signal quality. Furthermore, the horn antenna has 50 ohm impedance, with maximum signal transfer and minimum reflection losses.

Why Choose RFecho Satellite Antennas?

RFecho is a haven for tailor-made and custom-designed RF antennas to meet the high-demanding requirements of satellite communication applications. We at RFecho are committed to providing the highest quality RF Horn antennas for any likely requirement, ensuring consistent performance in all satellite communication scenarios. What sets RFecho apart is its commitment to quality and accurate engineering. RFecho RF antennas are people-oriented and offer customized solutions for specific uses. Our RF antennas employ linear polarization, allowing for clear signals and minimal interference in satellite communications systems.

RFecho Satellite Antennas Types

Parabolic Dish Antennas

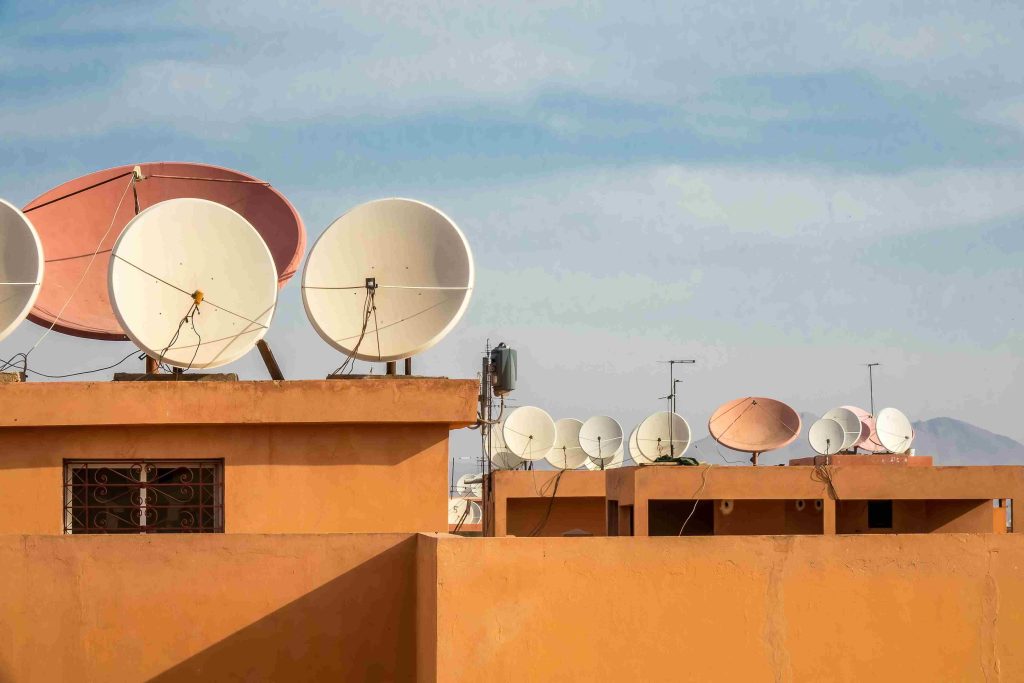

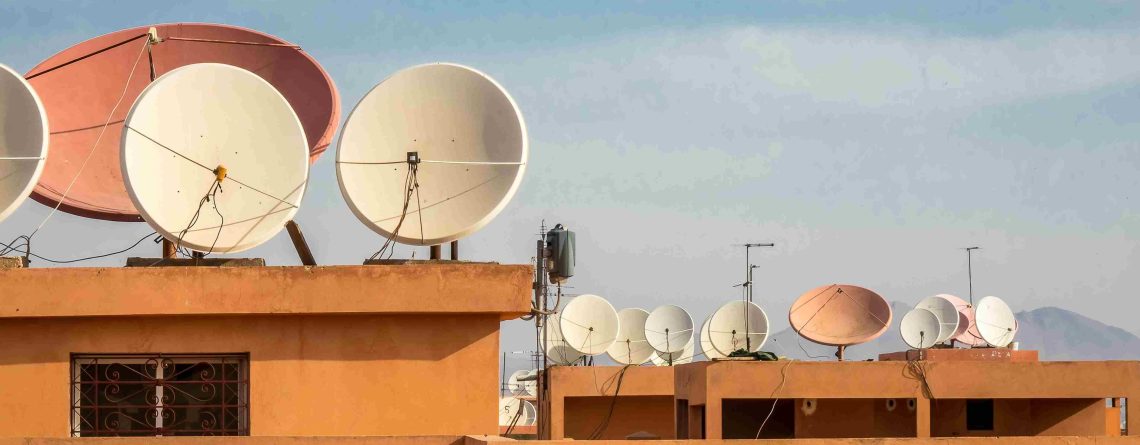

The most popular satellite antenna type is the parabolic dish antenna, and they possess a curved surface of the reflector that focuses incoming signals to a central feed point. They are particularly ideal for directional specificity and high-gain applications, and hence are fully apt for long-distance satellite communications and fixed installations.

Flat Panel Antennas

Flat panel antennas are a compact, better-looking alternative to the traditional parabolic dish. High-tech phased array technology is used in the antennas to deliver directional gain in a low-profile antenna, and therefore, they are best suited to be used in situations where space or appearance is a factor.

Horn Antennas

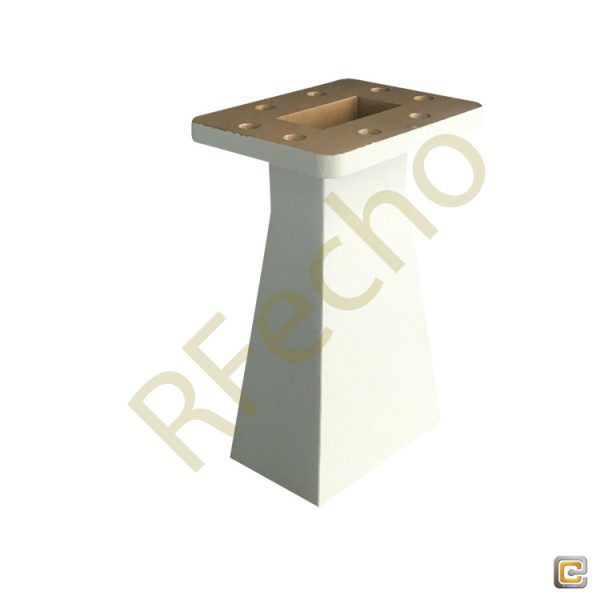

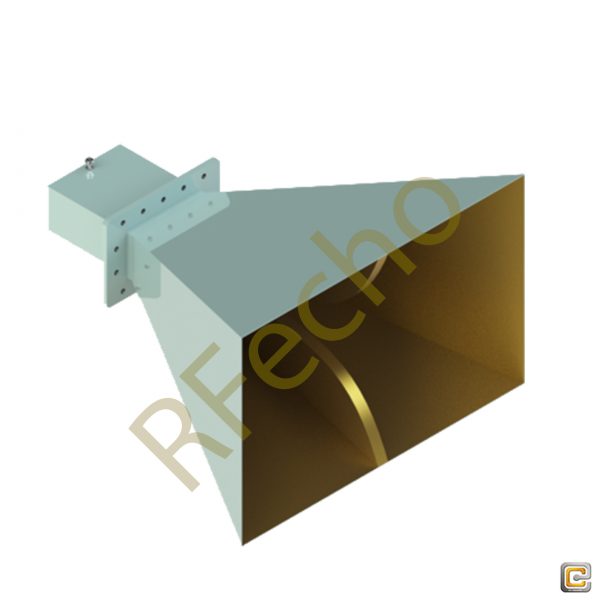

RFecho provides a variety of horn antenna designs, with some specialized varieties for satellite communication. Standard Gain Horn Antenna has uniform performance for overall satellite usage, while Multi Octave Horn Antenna offers support for larger bandwidths for broadband satellite systems. The Dual Polarized Horn Antenna offers transmit and receive capability for both horizontal and vertical polarizations simultaneously, and doubles the information capacity of the satellite link. Where an application requires precise beamwidth control, the Conical Horn Antennas offer narrow radiation patterns that are appropriate in point-to-point satellite communications.

Helical Antennas

Helical antennas are spiral in nature and inherently create circular polarization and are a great choice for satellite communications, where the signal polarization may be changing. They are best suited for use in mobile satellites and use cases in which precise antenna alignment is not feasible.

Selection Based on Communication Requirements

For Individual or Home Use

Home satellite antenna systems will typically emphasize easy installation, compact size, and good performance. The Luneburg Lens Antenna takes home applications in a new direction with its good gain performance in a still comparatively small package. For users requiring GPS capability, RFecho’s GPS Antenna offers the accurate positioning capability required by navigation systems.

For Commercial or Industrial Use

Commercial applications demand heavy-duty, high-capacity antennas that can handle repeated use and fluctuating environmental conditions. Commercial satellite communications are well-suited to the Broadband Dual Ridged Horn Antenna because of its broad frequency range and high gain performance. Industrial application customers prefer to use the Cavity Backed Spiral Antenna for its reliable performance across a number of different frequency ranges.

For Remote or Mobile Applications

Mobile and remote satellite communications require portable antennas, yet perform well. Log Periodic Antenna has excellent bandwidth coverage in a relatively small package and is an excellent choice for mobile satellite terminals. Where accuracy and mobility are essential, the Probe Antennas offer beam-directed properties without extreme size and weight.

Key Features to Consider

Frequency Range and Bandwidth

Satellite communication takes place in many frequency bands, ranging from L-band through Ka-band and higher. RFecho antennas have a wide frequency range, which makes them compatible with many satellite systems and communications protocols.

Gain and Beamwidth

Antenna gain specifies the increase in the signal strength, and beamwidth specifies the directional nature of the antenna. Antennas of higher gain have stronger reception of the signal but need more accurate pointing, whereas antennas of higher beamwidth give simpler alignment with the downside of lesser gain.

Size and Portability

Physical size is one of the factors in choosing the antenna, particularly in space-limited or mobile installations. RFecho provides antenna solutions that balance performance with practical size limitations.

Weather Resistance and Durability

The satellite antenna is subjected to severe environmental conditions, including temperature extremes, moisture, and mechanical stress. RFecho antennas employ weather-resistant construction practices and materials for long-term durability in harsh environments.

Installation and Maintenance Tips

General Installation Guidelines

Good mounting of antennas begins with a good site survey to determine a clear line-of-sight to the target satellite. The mounting structure must be rigid and allow for fine-tuning of orientation. Grounding systems provide safety and operation as they protect equipment from electrical surges and reduce interference.

Maintenance Best Practices

Regular maintenance includes visual inspections for physical damage, cleaning of connectors, and checks for alignment. Extreme weather could call for adjustments, particularly after severe weather or high winds. Scheduled performance measurements identify degradation before it compromises the quality of communication.

Comparing RFecho Models by Use Case

Fixed Location Solutions

For fixed deployments, the most suitable Standard Gain Horn Antenna with Curve Edge is utilized because it provides greater beam performance. They are optimally utilized in fixed satellite terminals and ground station applications where beam performance takes precedence over portability.

Mobile and Vehicle-Mounted Solutions

Mobile apps are best served by the Biconical Antenna with omnidirectional characteristics useful to mobile systems. It is the shortest in size and provides broad frequency operation and is thus well-suited to vehicle-mounted satellite communication systems.

High-Gain Long-Distance Models

Long-distance satellite communications need high-gain antennas. High-gain is achieved by using large aperture antennas and precise feed systems.

FAQ

Q: Which frequency bands are RFecho satellite antennas compatible with?

A: RFecho satellite antennas are compatible with a broad spectrum of frequencies, ranging from low-frequency bands up to microwave frequencies, depending on the antenna type and the specifications of the intended application.

Q: How do I select among the various types of horn antennas?

A: Select according to your specific requirements: Standard Gain Horn Antennas for general use, Dual Polarized for increased capacity, and Multi-Octave for wide bandwidth coverage.

Q: Are RFecho antennas weatherproof?

A: Yes, RFecho antennas are weatherproof and durable, utilizing materials and constructions that exceed environmental requirements.

Q: Will RFecho produce special-order antennas?

A: RFecho offers custom-made solutions to address specific application requirements for optimal performance in special communications.

Q: How much maintenance do satellite antennas require?

A: Periodic visual inspection, connector readjustment, alignment check, and performance test allow satellite antenna systems to remain trouble-free in use.
