0.5-6GHz Insertion Loss 1.80dB SMA Connector 0° Power Divider
A-series power dividers are 0° power dividers with SMA connectors, covering the 0.5-18GHz range.
Features include small size, low loss, low VSWR, and high isolation.
Manufactured using batch production control for consistent quality and high-volume supply capability.
Primarily used in electronic warfare, test and measurement applications for 4-way microwave signal distribution and combination.
Standardized product with customization available; other
spectrum and military standard products are also available.
- Description
- Datasheet

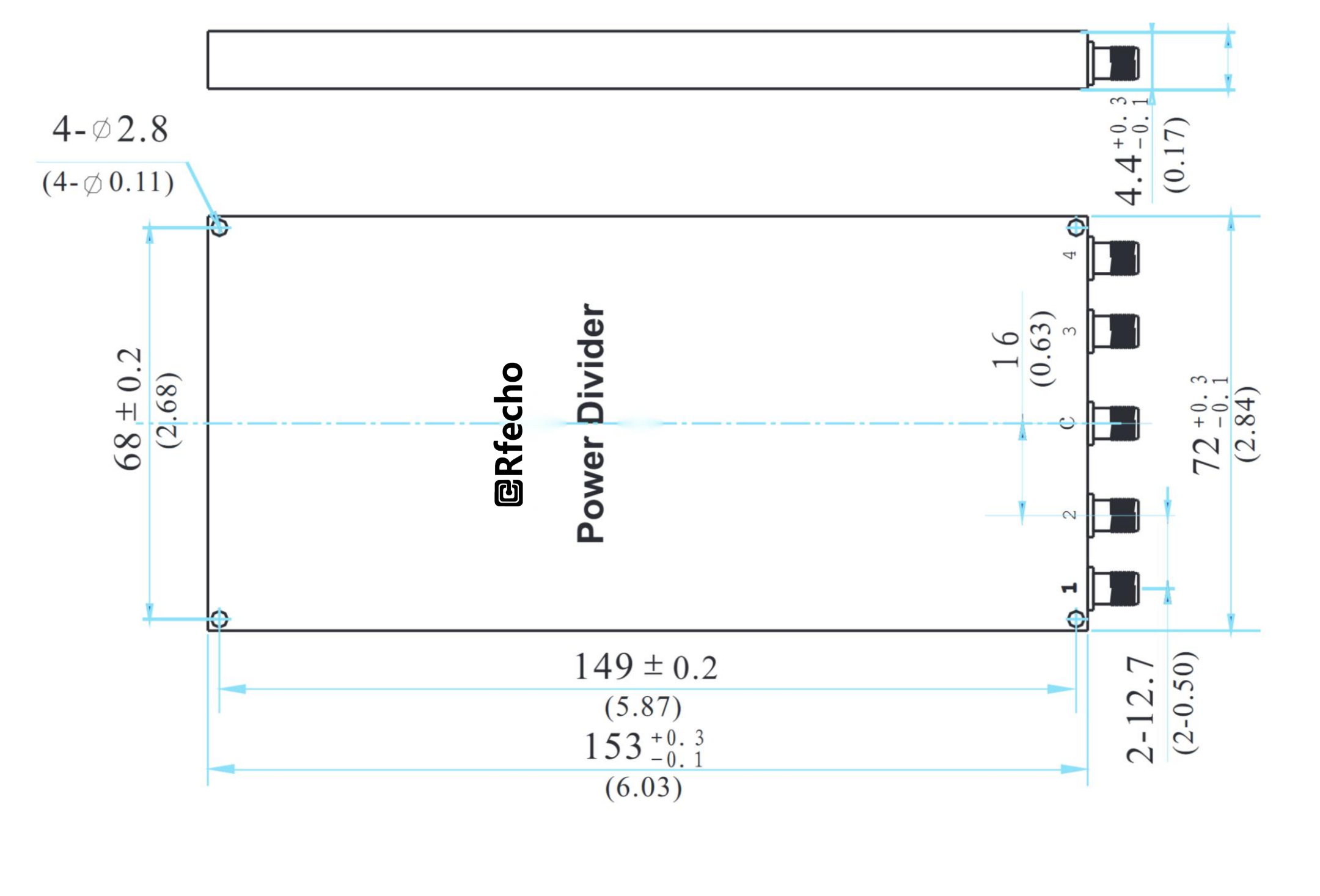

- Outline
- Reviews (0)
Description

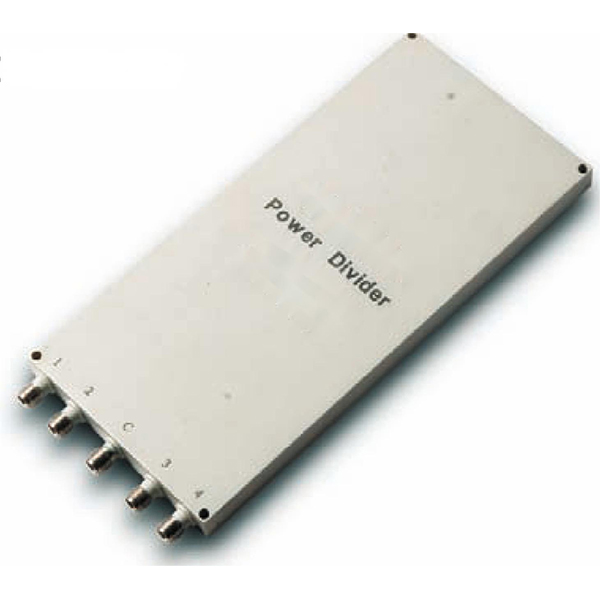

The OPD-A0414 is a broadband 4-way power divider operating from 0.5 to 6 GHz. Part of the OPD-A series, it features acompact design with SMA-Female connectors. Ideally suitedfor electronic warfare and precision measurement systems,this divider offers excellent performance stability with low insertion loss (1.80dB) and high isolation (16dB).
OPD-A0414 | |
| 0.5-6GHz Insertion Loss 1.80dB SMA Connector 0° Power Divider | |
Property | Value |
| Frequency Range | 0.5-6GHz |
| Insertion Loss | 1.80dB |
| Isolation | 16dB |
| Power Handling | 30W |
| Connector | SMA-F |
| Amplitude Balance | ±0.30dB |
| Phase Balance | ±4° |
| Operating Temperature | -55~+85°C |
| Storage Temperature | -55~+100°C |
| Input VSWR | 1.6 |
| Output VSWR | 1.5 |
| Compliance | Meets ‘GJB-1426-92’ test requirements |
Features | |
| A-series power dividers are 0° power dividers with SMA connectors, covering the 0.5-18GHz range. | |
| Features include small size, low loss, low VSWR, and high isolation. | |
| Manufactured using batch production control for consistent quality and high-volume supply capability. | |
| Primarily used in electronic warfare, test and measurement applications for 4-way microwave signal distribution and combination. | |
| Standardized product with customization available; other | |
| spectrum and military standard products are also available. | |
Applications | |
| Electronic Countermeasures, Testing and Measurement | |
