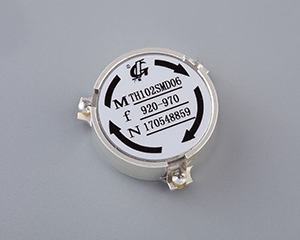

0.8 GHz to 2.2 GHz, 0.3 dB Insertion Loss, 23 dB Isolation, SMD Series Isolator-TH102SMD06
SMD Series isolator with 0.8-2.2 GHz frequency range, 0.3 dB insertion loss, 23 dB isolation
- Description
- Datasheet
- Reviews (0)
Description
The TH102SMD06 is a high-performance smd series designed for RF and microwave applications. It operates in the frequency range of 0.8-2.2 GHz with 0.3 dB maximum insertion loss and 23 dB minimum isolation.
TH102SMD06 |
|
|
0.8 GHz to 2.2 GHz, 0.3 dB Insertion Loss, 23 dB Isolation, SMD Series Isolator-TH102SMD06 |
|
Property |
Value |
|
Frequency (GHz) |
0.8-2.2 |
|
Bandwidth |
10% |
|
Return Loss (dB) |
|
|
Isolation (dB) |
23 |
|
Insertion Loss (dB) |
0.3 |
|
VSWR |
1.2 |
|
IMD3 (dBc) |
|
|
Power (W) |
|
|
Reverse Power (W) |
|
|
Peak Power |
|
|
Power note |
|
|
Connector |
SMD |
|
Impedance(Ohm) |
50 |
|
Size |
|
|
Operating Temp (degC) |
-40 to 85 |
|
Structure |
surface-mount |
Features |
|
|
Frequency Range: 0.8-2.2 GHz |
|
|
Insertion Loss: 0.3 dB Max |
|
|
Isolation: 23 dB Min |
|
|
VSWR: 1.2 Max |
|
|
Power: / W |
|
Applications |
|
|
Wireless communication, Radar systems, Test and measurement equipment |
|
