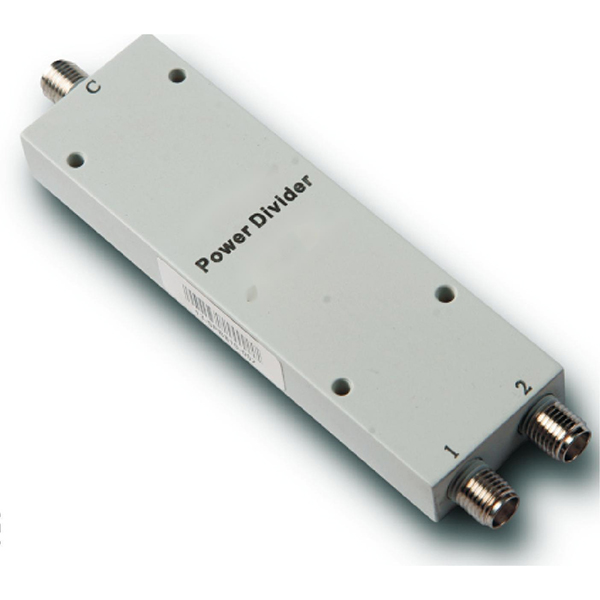

1-12.4GHz Insertion Loss 1.50dB SMA Connector 0° Power Divider
A-series power dividers are 0° power dividers with SMA
connectors, covering the full 0.5-18GHz range.
Features include small size, low loss, low VSWR, and high isolation.
The series employs batch production control methods,
ensuring high product consistency to meet large-volume supply requirements.
The OPD-A0213 is mainly used in ultra-wideband systems
such as electronic warfare, testing, and measurement for
the distribution and combination of 2-way microwave signals.
- Description
- Datasheet

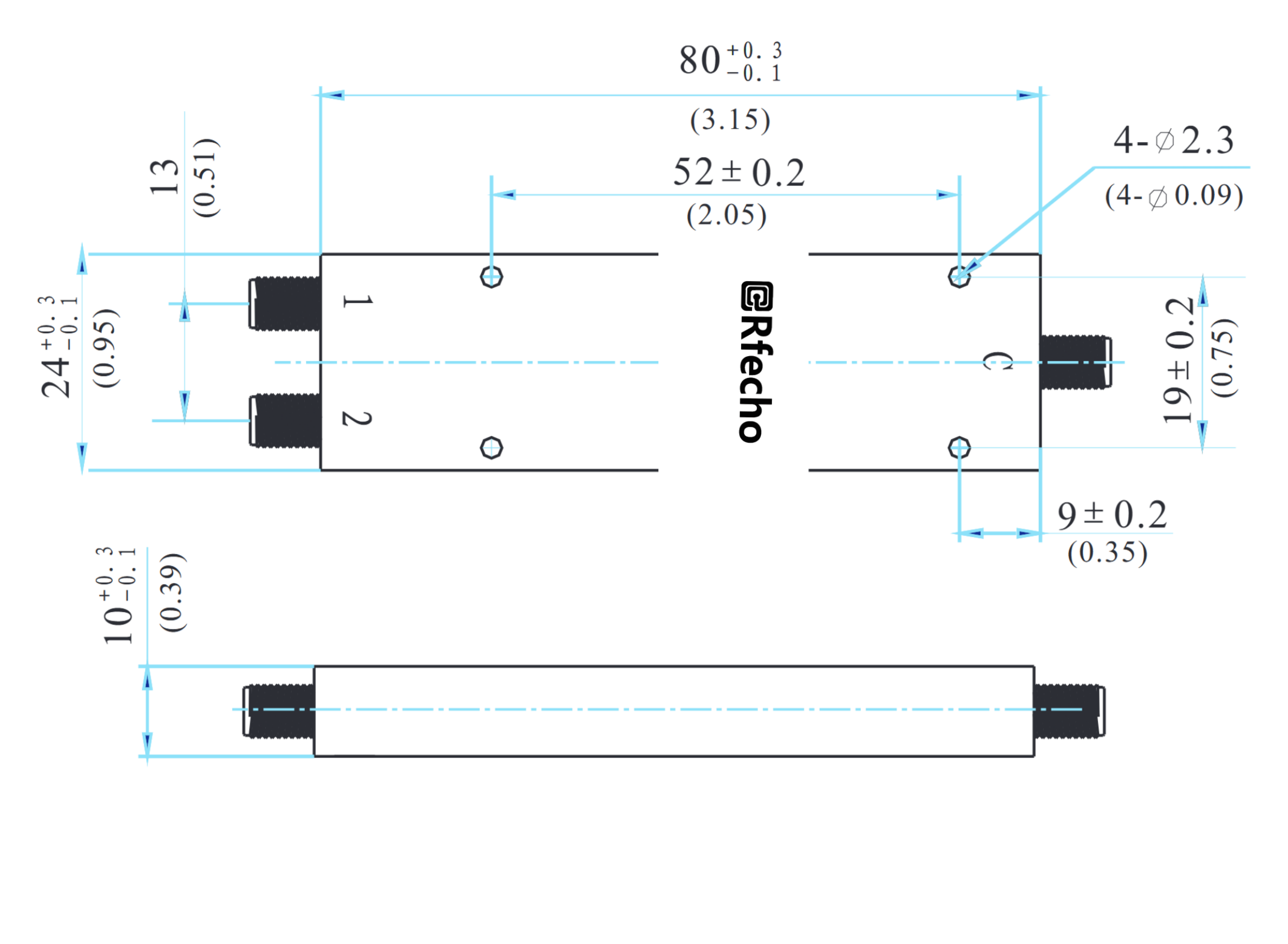

- Outline
- Reviews (0)
Description
Standardized OPD product, customizable based on user requirements. Other catalog products and military-grade prod-ucts are also available for selection.
OPD-A0213 | |
| 1-12.4GHz Insertion Loss 1.50dB SMA Connector 0° Power Divider | |
Property | Value |
| Frequency Range | 1-12.4GHz |
| Insertion Loss | 1.50dB |
| Isolation | 16dB |
| Power Handling | 30W |
| Connector | SMA-F |
| Amplitude Balance | ±0.40dB |
| Phase Balance | ±6° |
| Operating Temperature | -55~+85°C |
| Storage Temperature | -55~+100°C |
| Input VSWR | 1.45 |
| Output VSWR | 1.35 |
| Compliance | Complies with ‘GJB-1426-92’ testing requirements |
Features | |
| A-series power dividers are 0° power dividers with SMA | |
| connectors, covering the full 0.5-18GHz range. | |
| Features include small size, low loss, low VSWR, and high isolation. | |
| The series employs batch production control methods, | |
| ensuring high product consistency to meet large-volume supply requirements. | |
| The OPD-A0213 is mainly used in ultra-wideband systems | |
| such as electronic warfare, testing, and measurement for | |
| the distribution and combination of 2-way microwave signals. | |
Applications | |
| Electronic Countermeasures, Testing and Measurement | |
