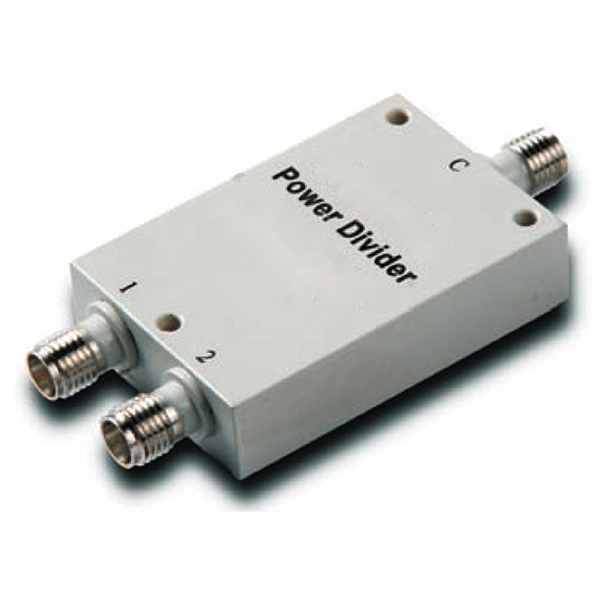

1-8GHz Insertion Loss 1.20dB SMA Connector 0° Power Divider
SMA connector 0° power divider
Small size, low loss, low VSWR, high isolation
High batch production consistency
Suitable for large volume delivery requirements
Used in electronic warfare, test & measurement, and ultra-wideband systems
- Description
- Datasheet

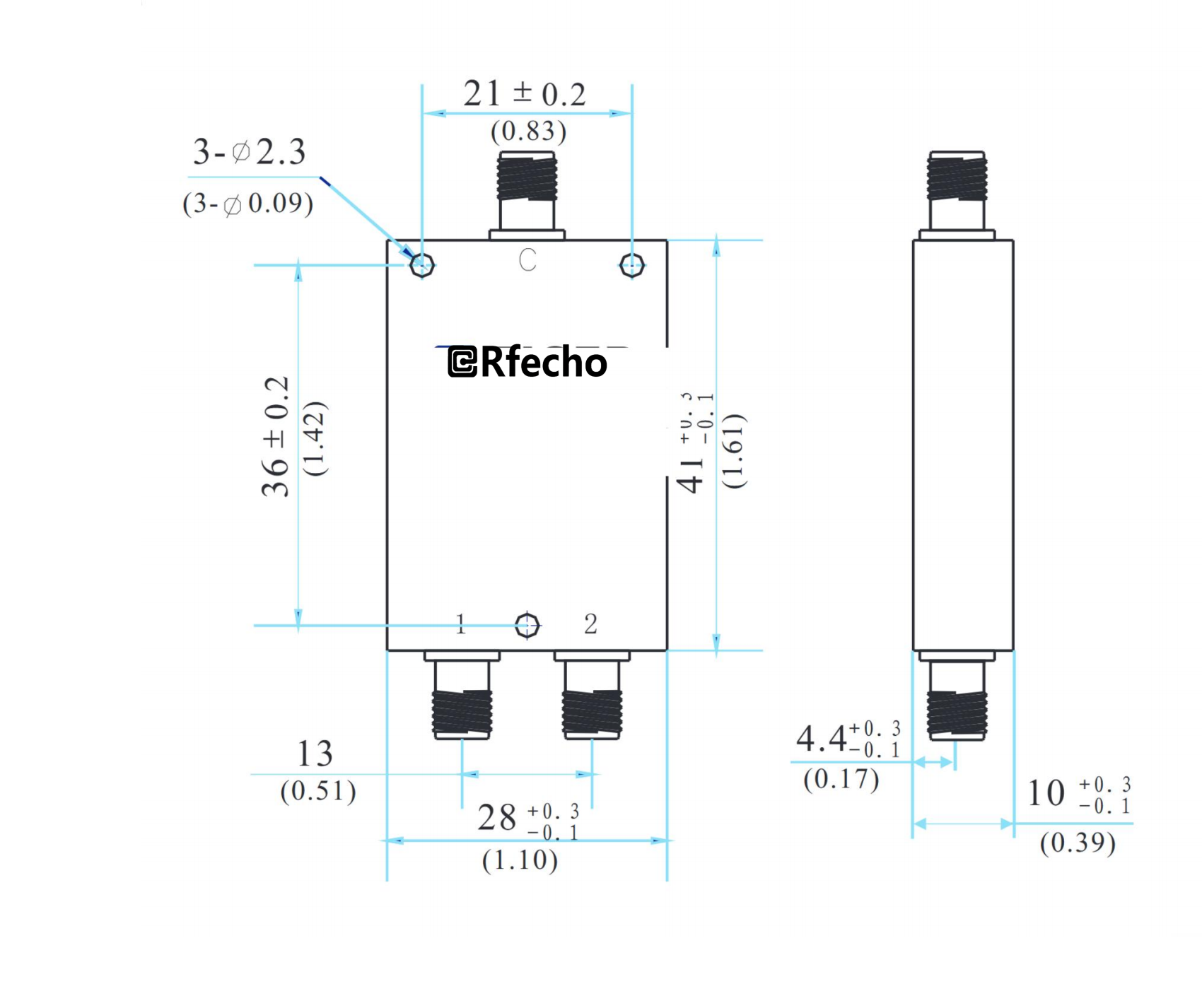

- Outline
- Reviews (0)
Description
The A-series power dividers are 0° power dividers with SMAconnectors, covering the full 0.5-18GHz range. Features include small size, low loss, low VSWR, high isolation, and highconsistency in batch production. The OPD-A0215 is mainly used in electronic warfare, testing and measurement, andother ultra-wideband systems for the distribution and synthesis of microwave signals. Standardized products allow forcustomization based on user needs, and penetrator productsare available for selection.
OPD-A0215 | |
| 1-8GHz Insertion Loss 1.20dB SMA Connector 0° Power Divider | |
Property | Value |
| Frequency Range | 1-8GHz |
| Insertion Loss | 1.20dB |
| Isolation | 16dB |
| Power Handling | 30W |
| Connector | SMA-F |
| Amplitude Balance | ±0.30dB |
| Phase Balance | ±6° |
| Operating Temperature | -55~+85°C |
| Storage Temperature | -55~+100°C |
| Input VSWR | 1.4 |
| Output VSWR | 1.35 |
| Compliance | Compliant with GJB-1426-92 test requirements |
Features | |
| SMA connector 0° power divider | |
| Small size, low loss, low VSWR, high isolation | |
| High batch production consistency | |
| Suitable for large volume delivery requirements | |
| Used in electronic warfare, test & measurement, and ultra-wideband systems | |
Applications | |
| Electronic Countermeasures, Testing and Measurement | |
