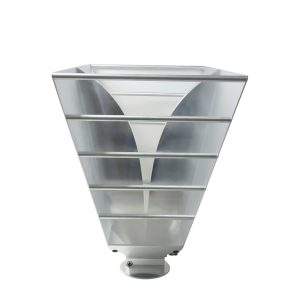

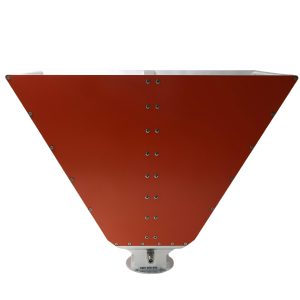

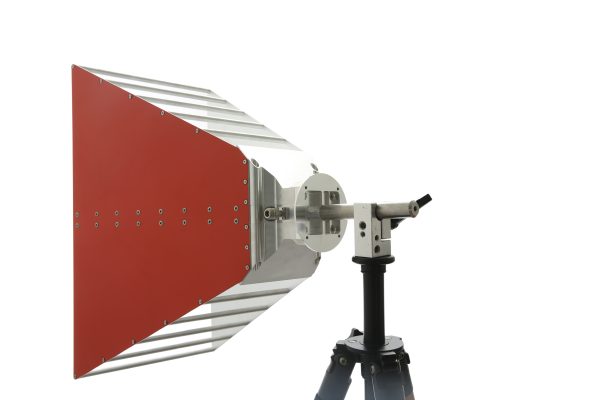

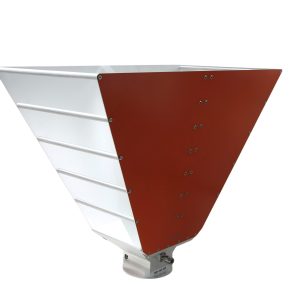

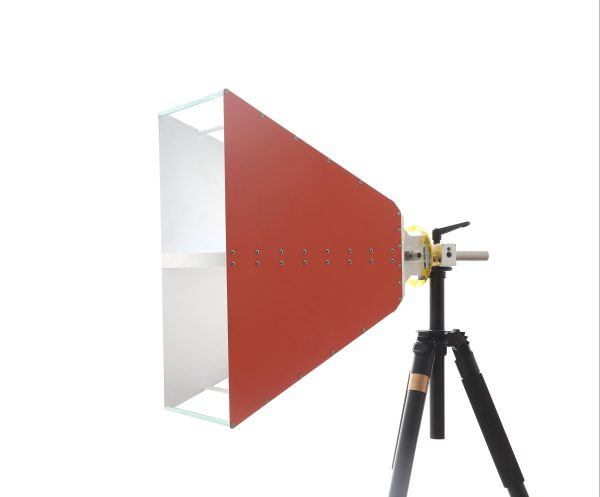

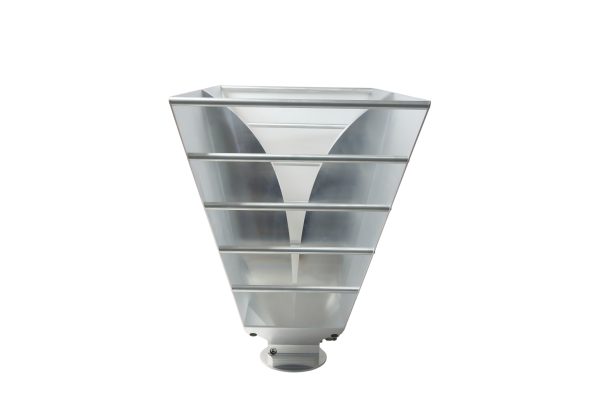

Ultra wide-band dual ridged horn antenna 0.4-6GHz
Gain: 6-15dBi.
VSWR: 2:1 Typ.
Power handling: 1000W Max.
Incredibly lightweight
Combined with a convenient roller-equipped box
Perfect for a wide range of applications
OBH-460 Ultra wide-band dual ridged horn antenna also excels in TV broadcasting within the 400MHz to 700MHz range
This Ultra wide-band dual ridged horn antenna is effective for EMC testing systems
- Description
- Datasheet

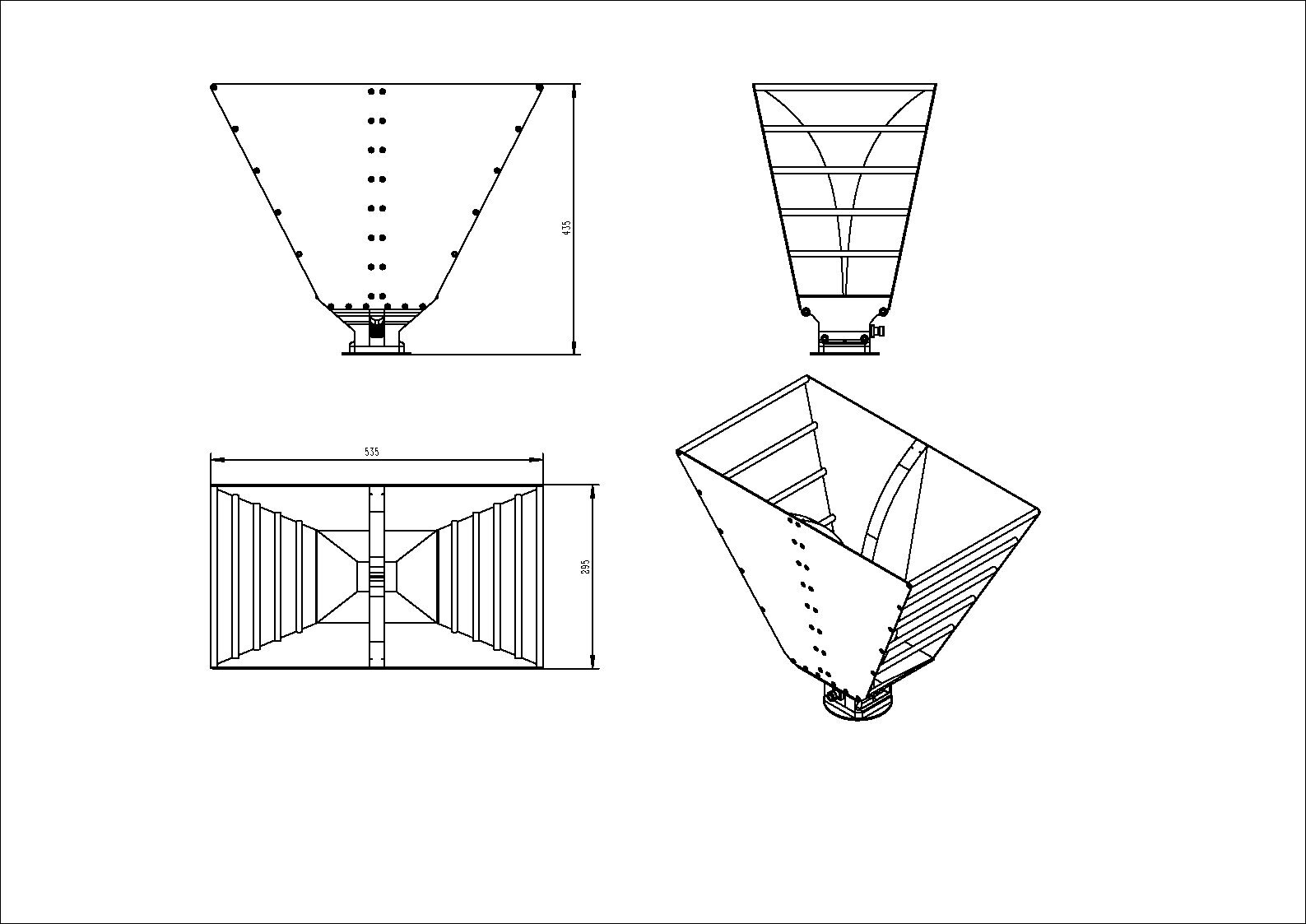

- Outline
- Data
- Certificates & Reports
- Reviews (3)
Description
The OBH-460 Dual-Ridged Horn Antenna, another stellar product from RFecho, is meticulously crafted to redefine standards in the RF landscape. Operating over an expansive frequency range, this antenna stands out with its bandwidth which is 50% more expansive than its counterparts and offers an exceptional frequency range from 400MHz to 6GHz.
The OBH-460 is incredibly lightweight (just 4.3kg), making it 15kg lighter than similar antennas. This antenna is also ideal for portable and field operations. In addition, its unique coaxial structure is another feather in its cap, allowing it to handle a whopping transmission power of up to 1000w.
This Broadband Dual-Ridged Horn Antenna is perfect for a wide range of applications. First of all, it is commonly used in the wireless communication spectrum. Its broad frequency range supports key technologies such as Wi-Fi, Bluetooth, and 4G LTE, making it ideal for wireless communication testing. Moreover, this antenna also excels in TV broadcasting within the 400MHz to 700MHz range, supporting over-the-air television signals and digital TV transmissions. In cellular communications, it covers the frequency bands used by GSM, UMTS, and LTE networks, making it a reliable solution for testing cellular infrastructure and base stations. Furthermore, it's highly effective in EMC testing, providing a thorough evaluation of electromagnetic interference and ensuring compliance across lower frequencies. Lastly, this antenna also supports IoT devices and Low Power Wide Area Networks (LPWAN) like LoRa and NB-IoT, making it a vital tool for IoT testing and system validation .Dual-Ridged Horn Antenna https://www.rfecho.com/product-category/emc-antenna/emc-broadband-dual-ridged-horn-antenna/
Broadband Horn Antenna Specifications | |
| 5-14.2dBi Gain, 0.4 GHz to 6 GHz | |
| OBH-460 | |
Property | Value |
| Min. Frequency (GHz) | 0.4 |
| Max. Frequency (GHz) | 6 |
| Gain(dBi) | 5-14.2 |
| VSWR (Max.) | 2 |
| Polarization | Single Linear |
| Cross Polar Isolation (dB) | 50 |
| Impedance (Ω) | 50 |
Features | |
| Linear polarized with high polarization purity | |
| Frequency from 0.4 GHz to 6 GHz | |
| Low return loss / VSWR | |
| Wide bandwidth | |
| Uniform Gain | |
| High Power Handling Capability | |
| Radiation pattern contains only one main lobe over the entire frequency range | |
| Each antenna is calibrated individually in line with ANSI C63.5-2006 | |
