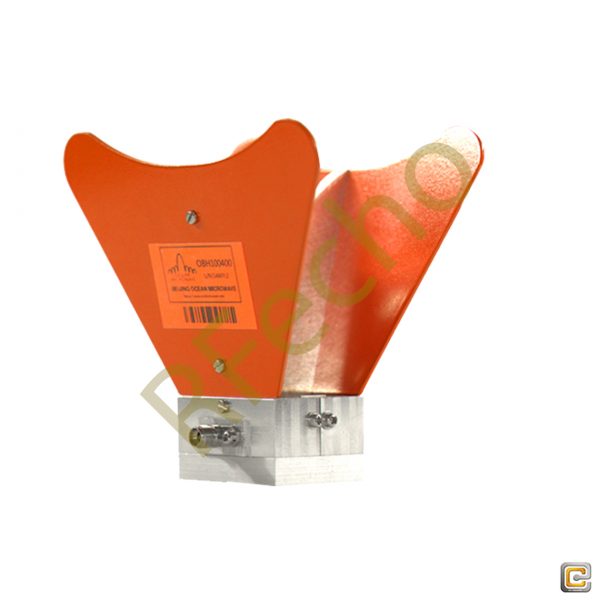

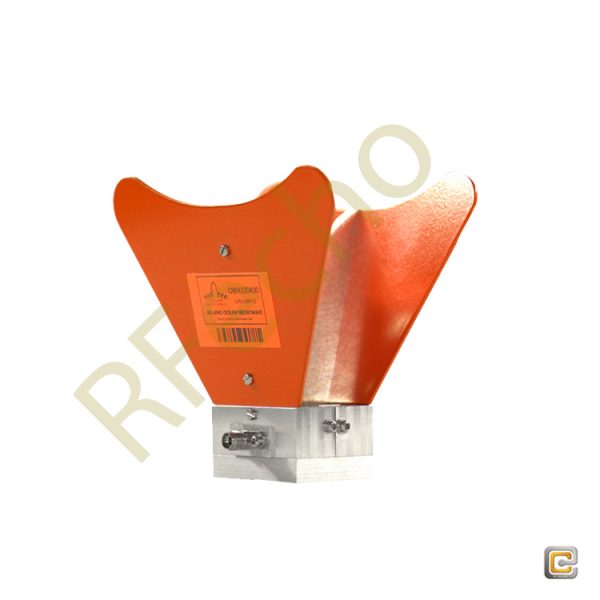

The OBH-100400 Dual-Ridged Horn Antenna offers an expansive frequency range from 10GHz to 40GHz, delivering exceptional communication capabilities across a wide spectrum. With a focus on lightweight efficiency, this antenna weighs only 138 grams. Equipped with a 2.92mm interface, the OBH-100400 can handle power exceeding 200W. Users can rely on comprehensive test data, including antenna factors, Gain, VSWR, and radiation patterns, ensuring reliable performance and ease of integration into specific systems. The option to input antenna factors further enhances its adaptability.

The OBH-100400 is designed for advanced applications in high-frequency telecommunications, satellite communication, microwave and millimeter-wave testing, and EMC compliance. Firstly, this antenna is essential for 5G testing in the millimeter-wave (mmWave) bands, supporting the higher frequencies used in advanced 5G and telecommunications systems. In satellite communication, this antenna also excels in Ku-band and Ka-band applications, making it ideal for high-frequency satellite uplink and downlink testing. The extended frequency range also ensures optimal performance in microwave and millimeter-wave testing, maintaining signal integrity at higher frequencies. Additionally, the 10GHz to 40GHz range makes this antenna highly effective for advanced radar systems, particularly those operating in Ku-band, Ka-band, and other high-frequency bands used in military, space, and airborne radar systems. For EMC testing, this antenna is designed to meet high-frequency compliance standards, making it a versatile tool for testing equipment in the 10GHz to 40GHz range.Dual-Ridged Horn Antenna:ttps://www.rfecho.com/product-category/emc-antenna/emc-broadband-dual-ridged-horn-antenna/

Description

The OBH-100400 Dual-Ridged Horn Antenna offers an expansive frequency range from 10GHz to 40GHz, delivering exceptional communication capabilities across a wide spectrum. With a focus on lightweight efficiency, this antenna weighs only 138 grams. Equipped with a 2.92mm interface, the OBH-100400 can handle power exceeding 200W. Users can rely on comprehensive test data, including antenna factors, Gain, VSWR, and radiation patterns, ensuring reliable performance and ease of integration into specific systems. The option to input antenna factors further enhances its adaptability.

The OBH-100400 is designed for advanced applications in high-frequency telecommunications, satellite communication, microwave and millimeter-wave testing, and EMC compliance. Firstly, this antenna is essential for 5G testing in the millimeter-wave (mmWave) bands, supporting the higher frequencies used in advanced 5G and telecommunications systems. In satellite communication, this antenna also excels in Ku-band and Ka-band applications, making it ideal for high-frequency satellite uplink and downlink testing. The extended frequency range also ensures optimal performance in microwave and millimeter-wave testing, maintaining signal integrity at higher frequencies. Additionally, the 10GHz to 40GHz range makes this antenna highly effective for advanced radar systems, particularly those operating in Ku-band, Ka-band, and other high-frequency bands used in military, space, and airborne radar systems. For EMC testing, this antenna is designed to meet high-frequency compliance standards, making it a versatile tool for testing equipment in the 10GHz to 40GHz range .Dual-Ridged Horn Antenna:ttps://www.rfecho.com/product-category/emc-antenna/emc-broadband-dual-ridged-horn-antenna/

SPEC

Broadband Horn Antenna Specifications

10.5 dBi Gain, 10 GHz to 40 GHz

OBH-100400

Property

Value

Min. Frequency (GHz)

10

Max. Frequency (GHz)

40

Gain(dBi)

10.5

VSWR (Max.)

2.7

Polarization

Single Linear

Cross Polar Isolation (dB)

50

Impedance (?)

50

Features

Linear polarized with high polarization purity

Frequency from 10 GHz to 40 GHz

Low return loss / VSWR

Wide bandwidth

Uniform Gain

High Power Handling Capability with 200W CW power input

Radiation pattern contains only one main lobe over the entire frequency range

Each antenna is calibrated individually in line with ANSI C63.5-2006

PDF

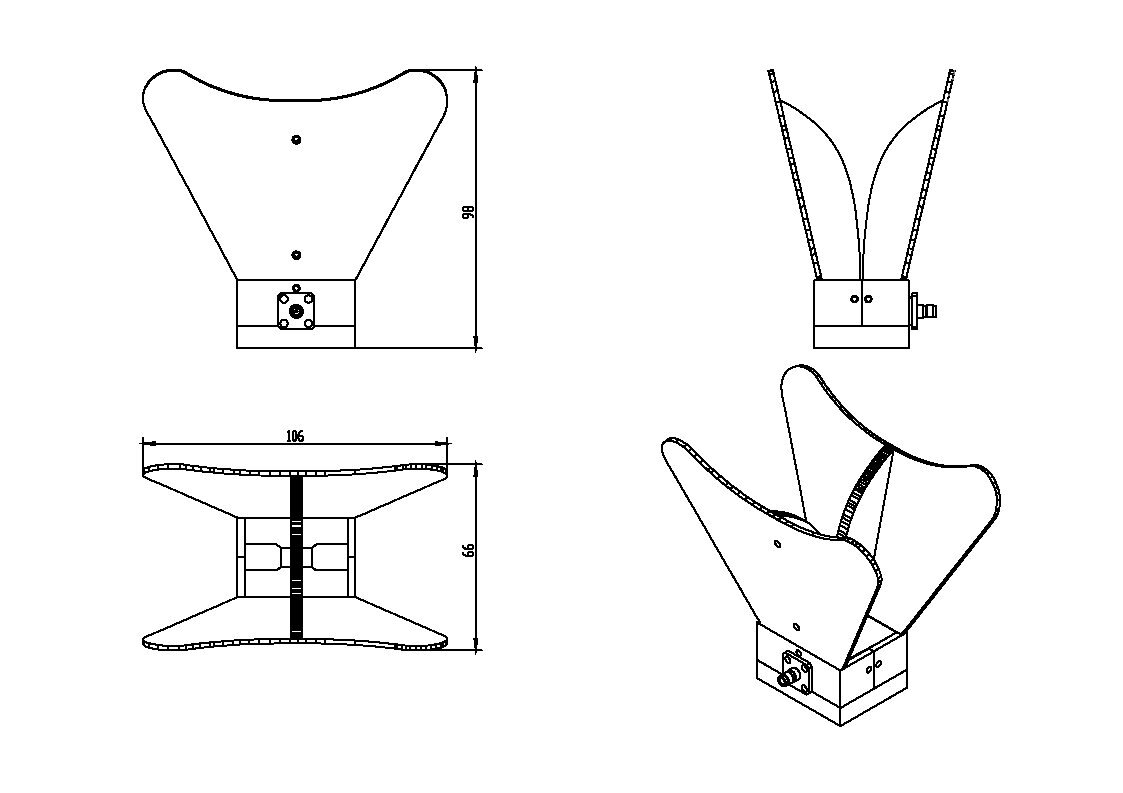

Outline

Additional information

Min. Frequency (GHz)

10

Max. Frequency (GHz)

40

Gain (dBi)

10.5

VSWR (Max.)

2.7

Cross Polar Isolation (dB)

50

Polarization

Single Linear

Impedance (Ω)

50
