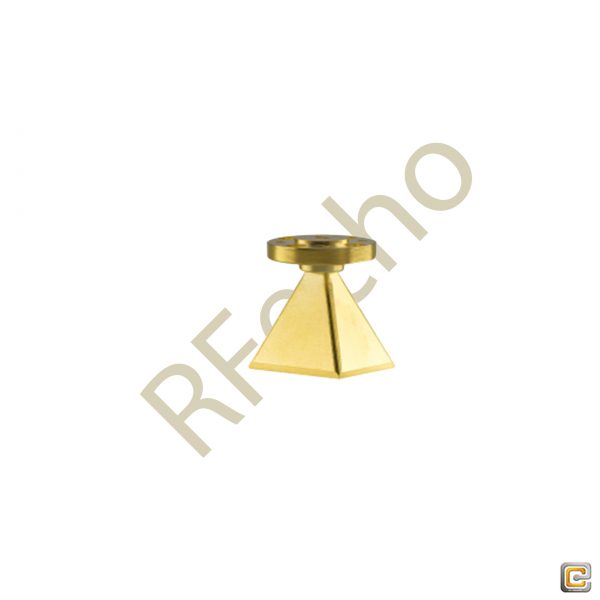

10 dBi Gain, 40 GHz to 60 GHz, WR-19 Waveguide Millimeter SGH Antenna

HOT

10 dBi Gain, 40 GHz to 60 GHz, WR-19 Waveguide Millimeter SGH Antenna

$705

This model OLB-19-10 is a Millimeter SGH Antenna, operating frequency range is 40 GHz to 60 GHz. Millimeter SGH Antenna offers nominal gain 10dBi and typical half power beam width on the E-plane and H-plane is H 55° / V 55°.

Millimeter SGH Antenna supports linear polarized waveforms Linear. The input of this antenna is a WR-19 waveguide withUG-383/U-M Flange. The Impedance used Standard gain horn antenna is 50 Ohms.

SKU: OLB-19-10 Categories: Millimeter SGH Antenna, RF Antenna

Description

SPEC

Millimeter SGH Antenna

10 dBi Gain, 40 GHz to 60 GHz, WR-19 Waveguide Millimeter SGH Antenna

OLB-19-10

This model OLB-19-10 is a Millimeter SGH Antenna, operating frequency range is 40 GHz to 60 GHz. Millimeter SGH Antenna offers nominal gain 10dBi and typical half power beam width on the E-plane and H-plane is H 55° / V 55°.

Millimeter SGH Antenna supports linear polarized waveforms Linear. The input of this antenna is a WR-19 waveguide withUG-383/U-M Flange. The Impedance used Standard gain horn antenna is 50 Ohms.

Property

Value

Min. Frequency (GHz)

40

Max. Frequency (GHz)

60

Gain(dBi)

10

HPBW 3 dB Beamwidth

H 55° / V 55°

Waveguide

WR-19

Flange

UG-383/U-M Flange

Material

Cu

Polarization

Linear

Impedance (?)

50

Features

Precisely Machined and Gold Plated

Low VSWR

Light Weight

Linear Polarization

Low Return Loss

Rectangular Waveguide Interface

Lower sidelobes and symmetrical radiation patterns

Applications

Antenna Ranges

Antenna Gain Measurements

System Setup

PDF

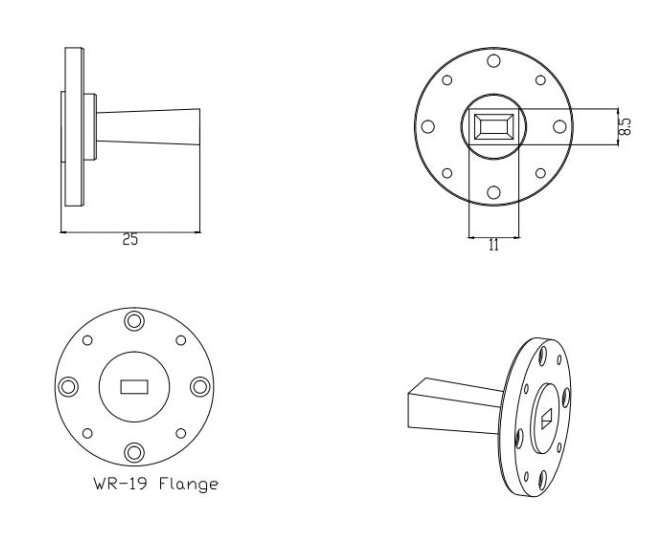

Outline

10 dBi Gain, 40 GHz to 60 GHz, WR-19 Waveguide Millimeter SGH Antenna

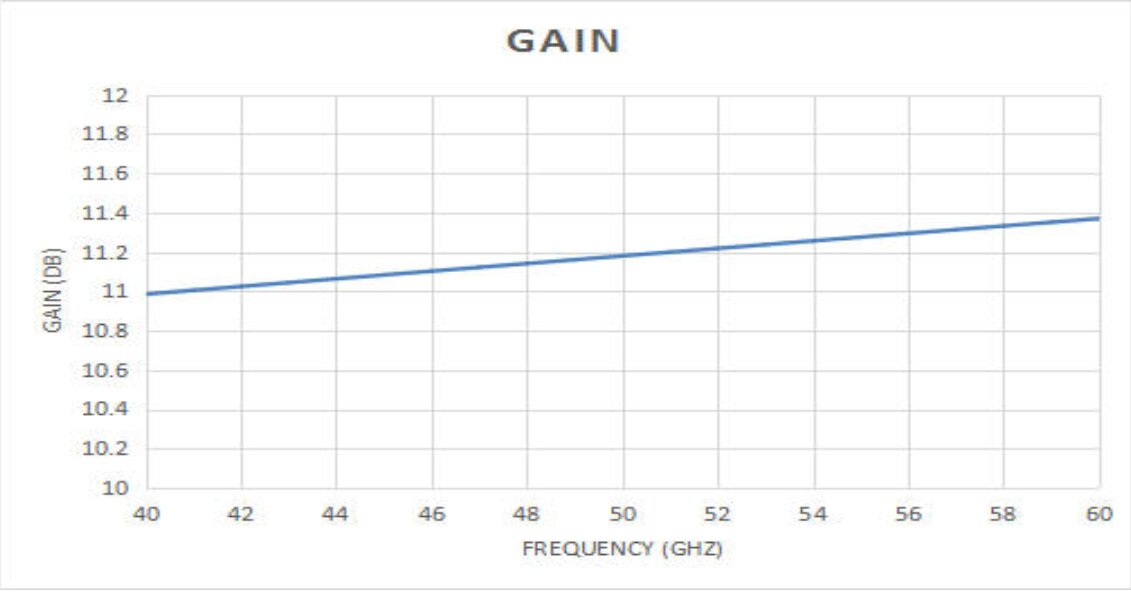

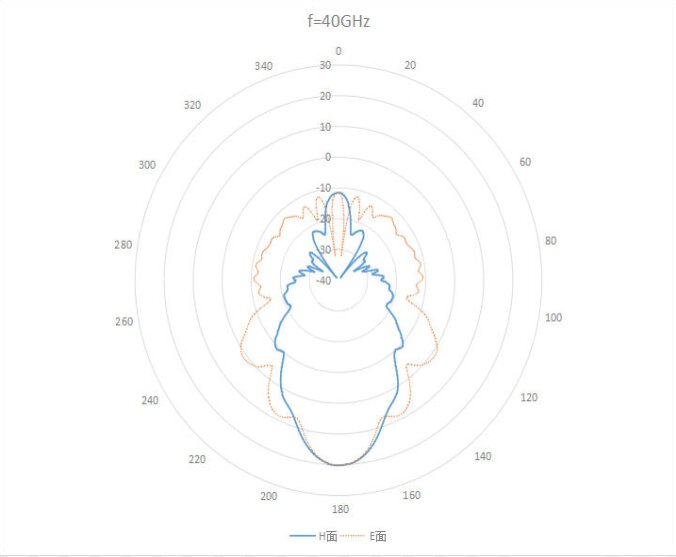

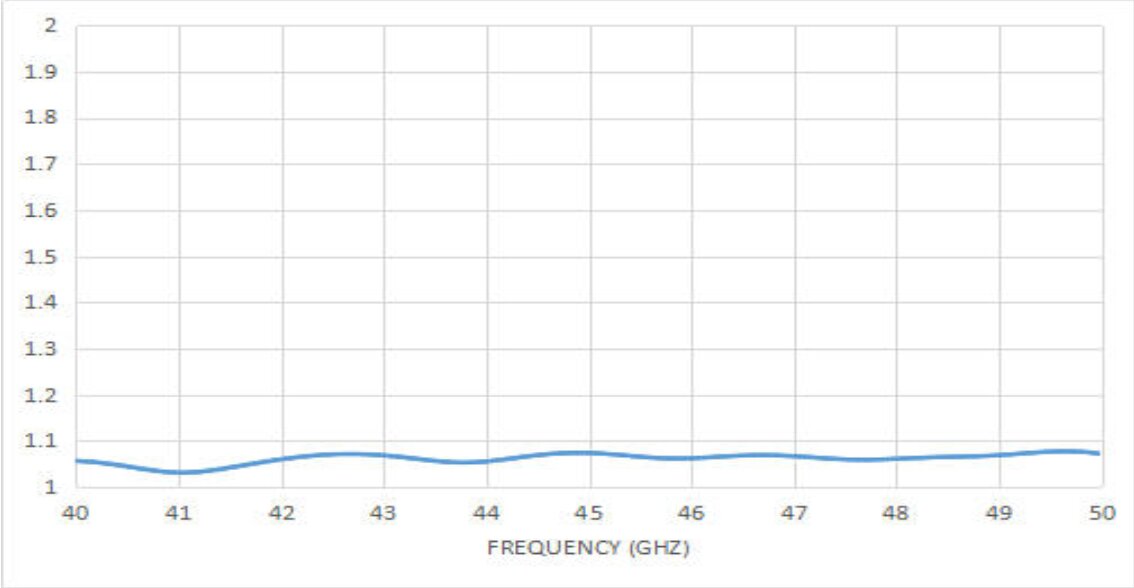

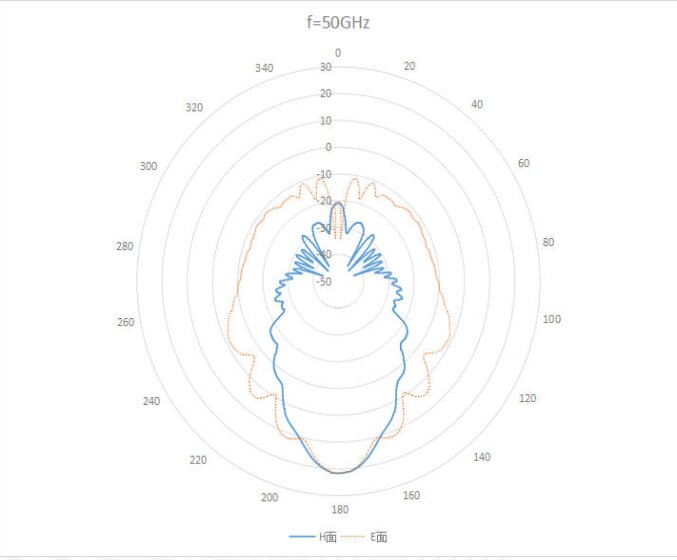

Plot

10 dBi Gain, 40 GHz to 60 GHz, WR-19 Waveguide Millimeter SGH Antenna10 dBi Gain, 40 GHz to 60 GHz, WR-19 Waveguide Millimeter SGH Antenna10 dBi Gain, 40 GHz to 60 GHz, WR-19 Waveguide Millimeter SGH Antenna10 dBi Gain, 40 GHz to 60 GHz, WR-19 Waveguide Millimeter SGH Antenna

Additional information

Min. Frequency (GHz)

40

Max. Frequency (GHz)

60

Gain (dBi)

10

Flange

UG-383/U-M Flange

HPBW 3 dB Beamwidth

H 55° / V 55°

Waveguide

WR-19

Material

Cu

Polarization

Linear

Impedance (Ω)

50
