10 dBi Gain, 5.9 GHz to 8.2 GHz, WR-137 Waveguide Standard Gain Horn Antenna

HOT
-15%

10 dBi Gain, 5.9 GHz to 8.2 GHz, WR-137 Waveguide Standard Gain Horn Antenna

$540 $459

This model OLB-137-10 is a Standard gain horn antenna that offers the gain of 10 dBi across the band and a square cover flange. It covers the frequency range from 5.9 GHz to 8.2 GHz. Standard gain horn antenna OLB-137-10 is known as a waveguide horn having the waveguide of WR-137.

It is manufactured using the precision electrode cut copper sections providing accurate, consistent, and reliable performance.
This antenna is suitable for Antenna Ranges, Antenna Gain Measurements, System Setups. HPBW of OLB-137-10 has an H-plane & V-Plane beamwidth of H 55° / V 55°. Standard gain horn antenna has a Linear polarization. The material in standard gain horn antenna is AI. The Impedance used Standard gain horn antenna is 50 ohms.

Description

This model OLB-137-10 is a Standard gain horn antenna that offers the gain of 10 dBi across the band and a square cover flange. It covers the frequency range from 5.9 GHz to 8.2 GHz. Standard gain horn antenna OLB-137-10 is known as a waveguide horn having the waveguide of WR-137.

It is manufactured using the precision electrode cut copper sections providing accurate, consistent, and reliable performance.
This antenna is suitable for Antenna Ranges, Antenna Gain Measurements, System Setups. HPBW of OLB-137-10 has an H-plane & V-Plane beamwidth of H 55° / V 55°. Standard gain horn antenna has a Linear polarization. The material in standard gain horn antenna is AI. The Impedance used Standard gain horn antenna is 50 ohms.

SPEC

WR-137 Waveguide Standard Gain Horn Antenna

10 dBi Gain, 5.9 GHz to 8.2 GHz

OLB-137-10



Property

Value

Min. Frequency (GHz)

5.9

Max. Frequency (GHz)

8.2

Gain(dBi)

10

HPBW 3 dB Beamwidth

H 55° / V 55°

Waveguide

WR-137

Material

AI

Polarization

Linear

Impedance (?)

50

Cover Flange

square

Features

Precisely Machined and Gold Plated

Low VSWR

Light Weight

Linear Polarization

Low Return Loss

Rectangular Waveguide Interface

Lower sidelobes and symmetrical radiation patterns

Applications

Antenna Ranges

Antenna Gain Measurements

Array Elements

PDF

Outline

WR-137 Waveguide - Standard Gain Horn Antenna - 10dBi

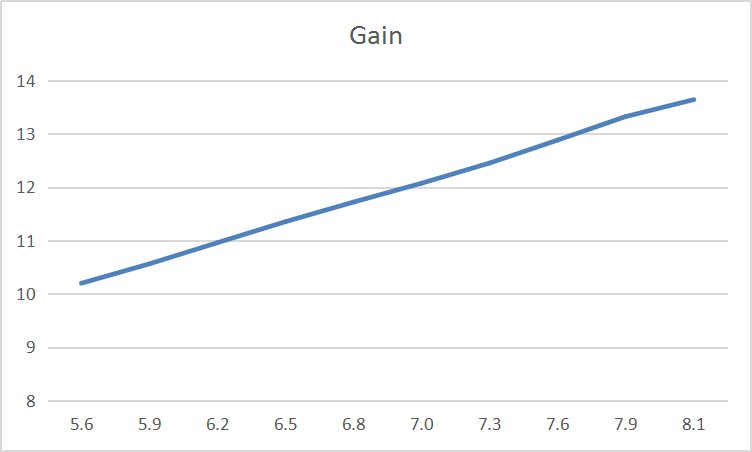

Plot

WR-137 Waveguide - 5.9GHz - 8.2GHz - 10dBi - Standard Gain Horn Antenna 1WR-137 Waveguide - 5.9GHz - 8.2GHz - 10dBi - Standard Gain Horn Antenna 2OLB 137 10 plot3 10 dBi Gain, 5.9 GHz to 8.2 GHz, WR-137 Waveguide Standard Gain Horn AntennaOLB 137 10 plot4 10 dBi Gain, 5.9 GHz to 8.2 GHz, WR-137 Waveguide Standard Gain Horn Antenna

Additional information

Min. Frequency (GHz)

5.9

Max. Frequency (GHz)

8.2

Gain (dBi)

10

Flange

HPBW 3 dB Beamwidth

Waveguide

Material

Polarization

Impedance (Ω)
