15 dBi Gain, 40 GHz to 60 GHz, WR-19 Waveguide Millimeter SGH Antenna

$705 $599

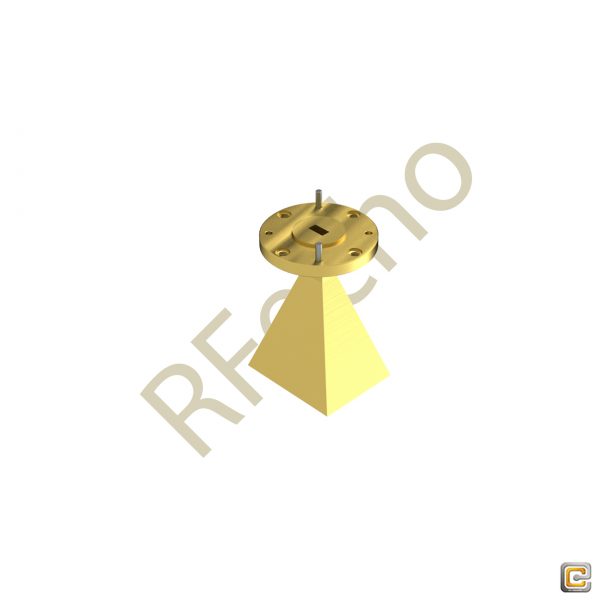

This model OLB-19-15 is a Millimeter SGH Antenna, operating frequency range is 40 GHz to 60 GHz. Millimeter SGH Antenna offers nominal gain 15dBi and typical half power beam width on the E-plane and H-plane is H 30° / V 30°.

Millimeter SGH Antenna supports linear polarized waveforms Linear. The input of this antenna is a WR-19 waveguide withUG-383/U-M Flange. The Impedance used Standard gain horn antenna is 50 Ohms.

Description

SPEC

Millimeter SGH Antenna

15 dBi Gain, 40 GHz to 60 GHz, WR-19 Waveguide Millimeter SGH Antenna

OLB-19-15

This model OLB-19-15 is a Millimeter SGH Antenna, operating frequency range is 40 GHz to 60 GHz. Millimeter SGH Antenna offers nominal gain 15dBi and typical half power beam width on the E-plane and H-plane is H 30° / V 30°.

Millimeter SGH Antenna supports linear polarized waveforms Linear. The input of this antenna is a WR-19 waveguide withUG-383/U-M Flange. The Impedance used Standard gain horn antenna is 50 Ohms.

Property

Value

Min. Frequency (GHz)

40

Max. Frequency (GHz)

60

Gain(dBi)

15

HPBW 3 dB Beamwidth

H 30° / V 30°

Waveguide

WR-19

Flange

UG-383/U-M Flange

Material

Cu

Polarization

Linear

Impedance (?)

50

Features

Rectangular Waveguide Interface

Precisely Machined and Gold Plated

Linear Polarization

High Return Loss

Applications

Antenna Ranges

Antenna Gain Measurements

System Setup

PDF

Outline

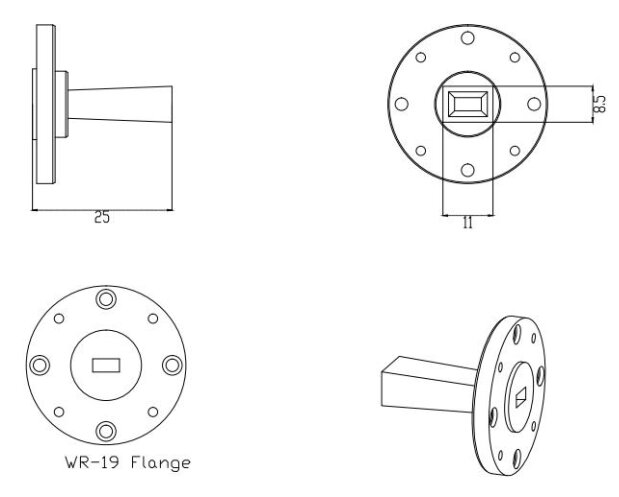

OLB 19 15 outline 15 dBi Gain, 40 GHz to 60 GHz, WR-19 Waveguide Millimeter SGH Antenna

Plot

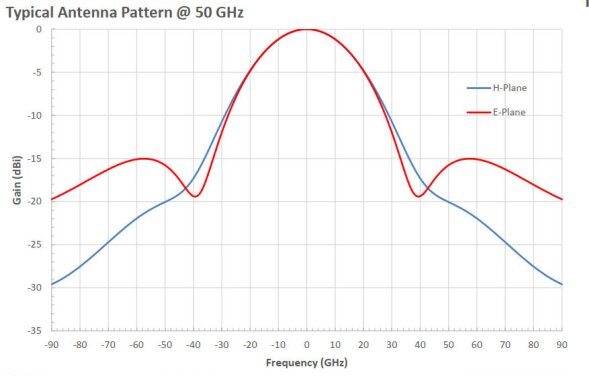

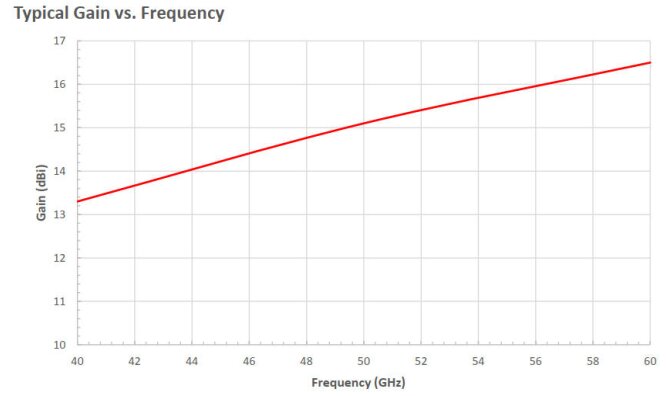

OLB 19 15 plot1 15 dBi Gain, 40 GHz to 60 GHz, WR-19 Waveguide Millimeter SGH AntennaOLB 19 15 plot2 15 dBi Gain, 40 GHz to 60 GHz, WR-19 Waveguide Millimeter SGH Antenna

Additional information

Min. Frequency (GHz)

40

Max. Frequency (GHz)

60

Gain (dBi)

15

Flange

HPBW 3 dB Beamwidth

Waveguide

Material

Polarization

Impedance (Ω)
