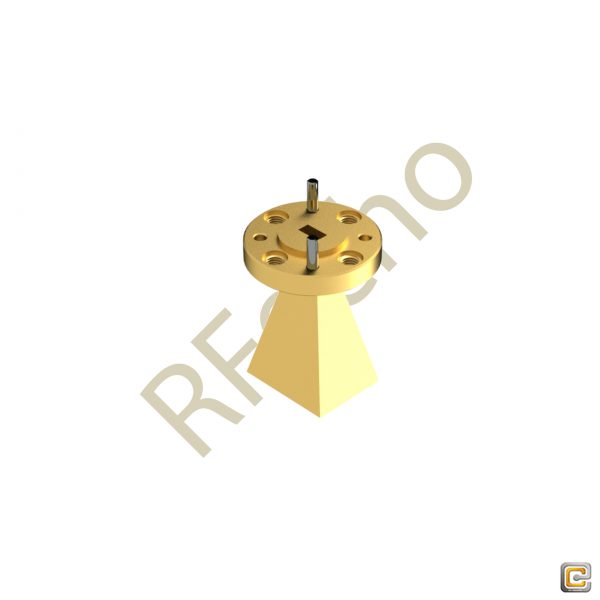

17 dBi Gain, 50 GHz to 75 GHz, WR-15 Waveguide Millimeter SGH Antenna OLB-15-17
Original price was: $812.$690Current price is: $690.
Frequency: 50-75GHz
Gain: 17dBi.
VSWR: 1.3Typ.
HPBW 3 dB Beamwidth: E 26° / H 25°
Waveguide: WR-15
Material: Cu
High Return Loss
Flange: UG-385/U
This Millimeter SGH Antenna supports linear polarized waveforms Linear.
- Description
- Datasheet

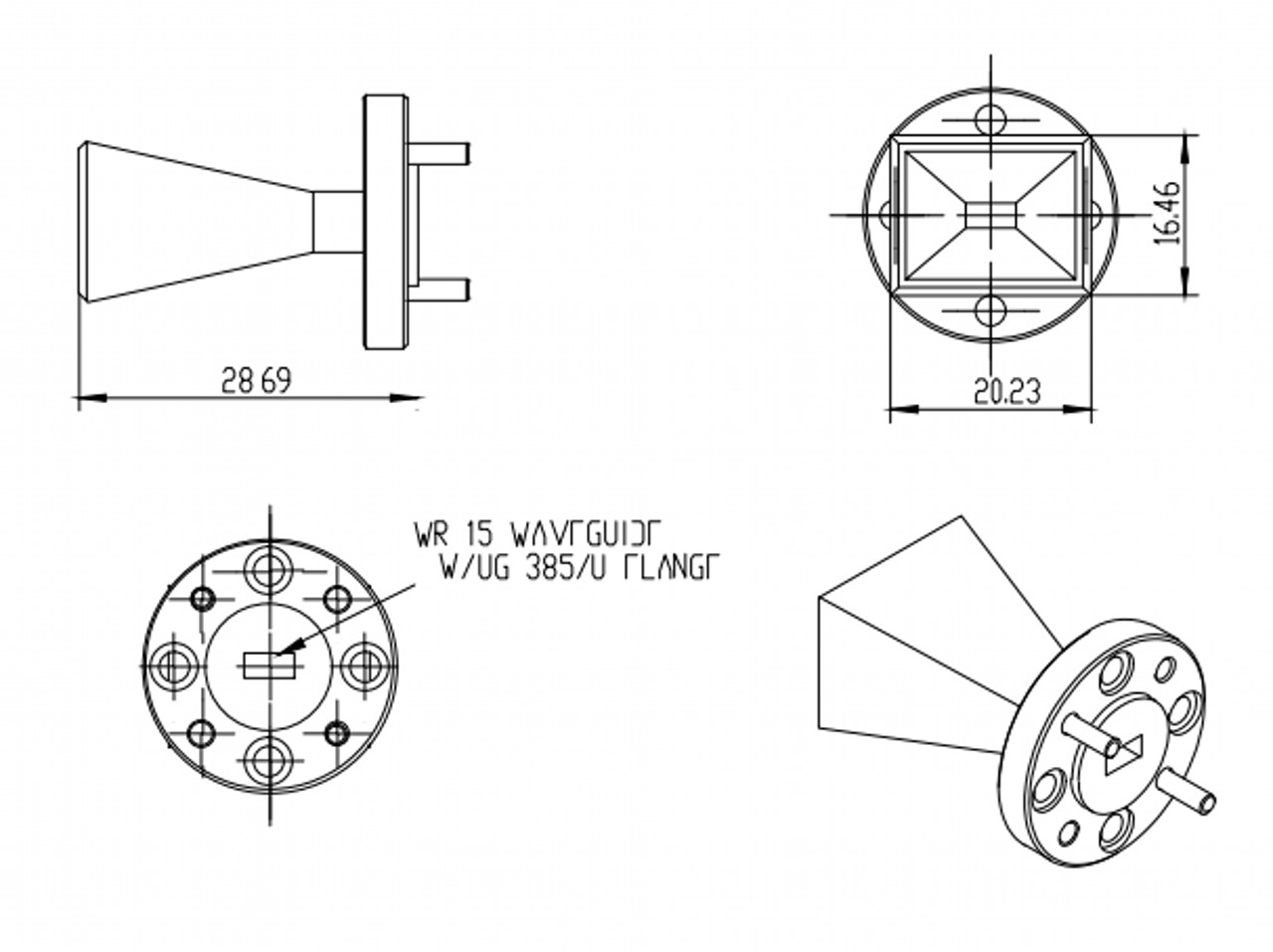

- Dimensions

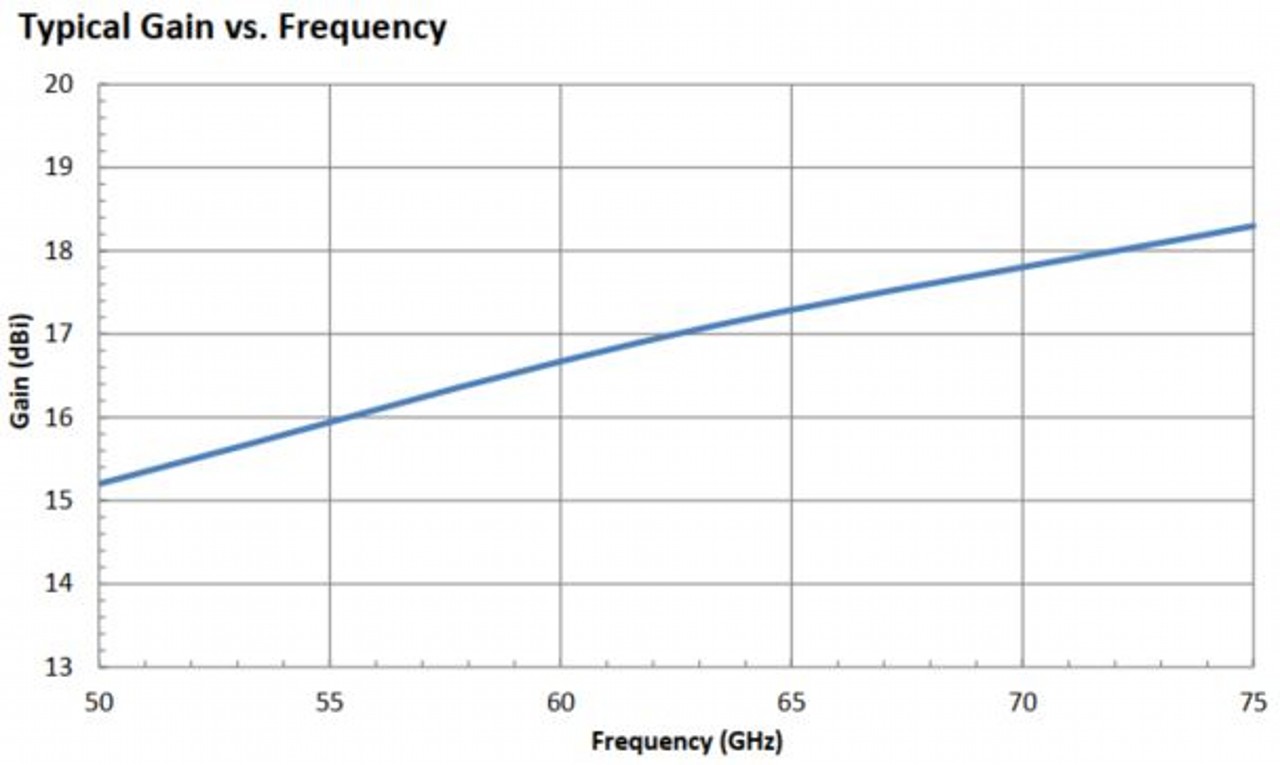

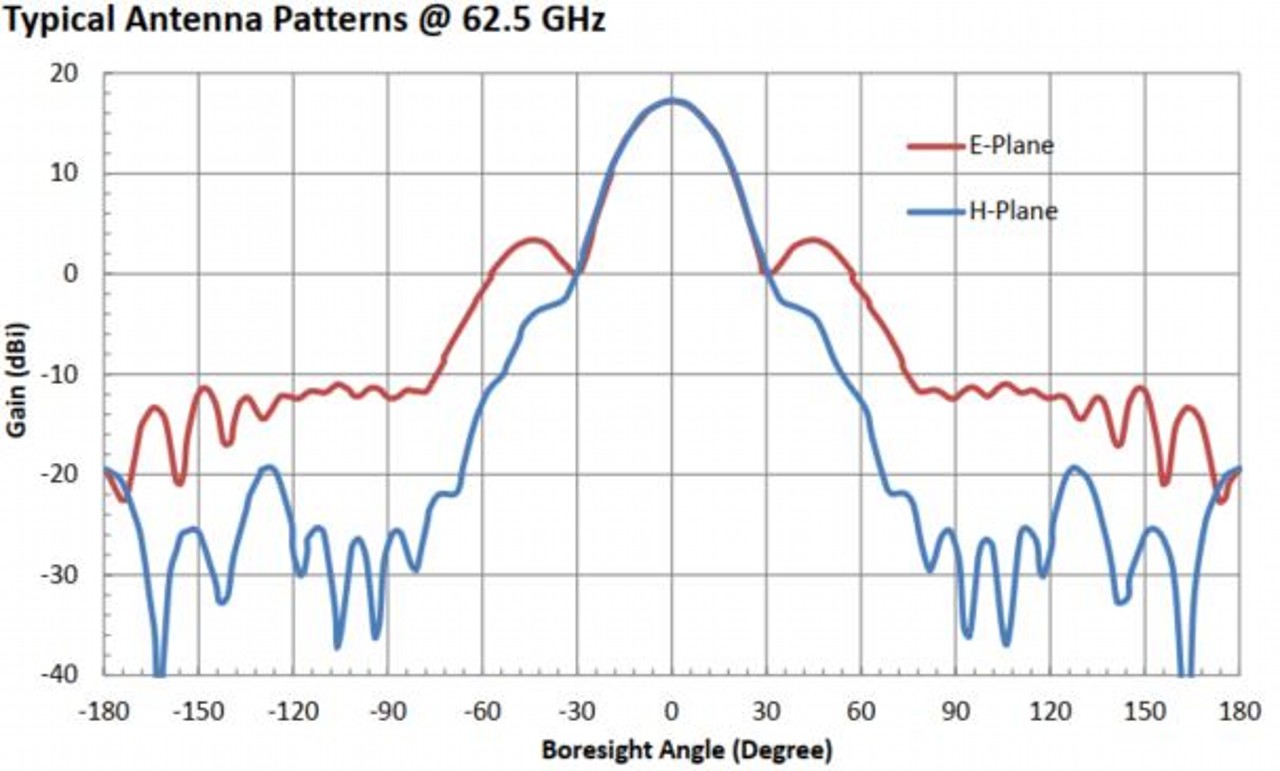

- Plot
- Additional information
- Reviews (0)
Description
Millimeter SGH Antenna |
|
17 dBi Gain, 50 GHz to 75 GHz, WR-15 Waveguide Millimeter SGH Antenna |
|
OLB-15-17 |
|
This model OLB-15-17 is a Millimeter SGH Antenna, operating frequency range is 50 GHz to 75 GHz. Millimeter SGH Antenna offers nominal gain 17dBi and typical half power beam width on the E-plane and H-plane is E 26° / H 25°. Millimeter SGH Antenna supports linear polarized waveforms Linear. The input of this antenna is a WR-15 waveguide withUG-385/U Flange. The Impedance used Standard gain horn antenna is 50 Ohms. |
|
Property |
Value |
Min. Frequency (GHz) |
50 |
Max. Frequency (GHz) |
75 |
Gain(dBi) |
17 |
HPBW 3 dB Beamwidth |
E 26° / H 25° |
Waveguide |
WR-15 |
Flange |
UG-385/U Flange |
Material |
Cu |
Polarization |
Linear |
Impedance (Ω) |
50 |
Features |
|
Rectangular Waveguide Interface |
|
Precisely Machined and Gold Plated |
|
Linear Polarization |
|
High Return Loss |
|
Applications |
|
Antenna Ranges |
|
Antenna Gain Measurements |
|
System Setup |
Additional information
Weight | 1 kg |
---|---|
Dimensions | 26 × 11.5 × 14.5 cm |
Min. Frequency (GHz) | 50 |
Max. Frequency (GHz) | 75 |
Gain (dBi) | 17 |
Flange | |
HPBW 3 dB Beamwidth | |
Waveguide | |
Material | |
Polarization | |
Impedance (Ω) |
