20 dBi Gain, 18 GHz to 40 GHz Broadband Horn Antenna

HOT

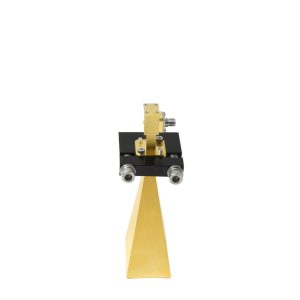

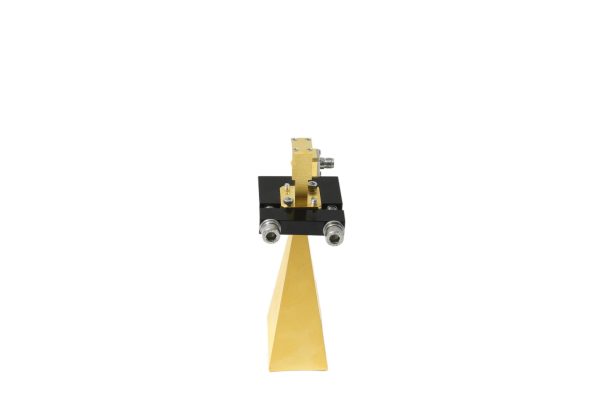

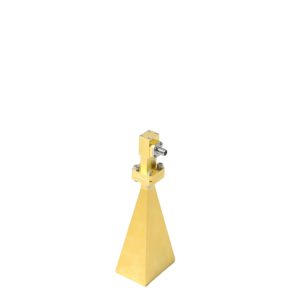

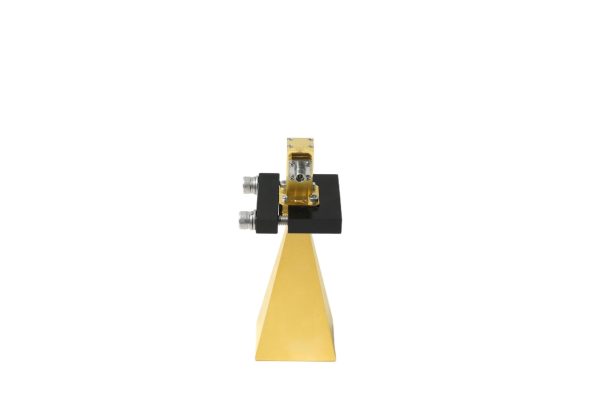

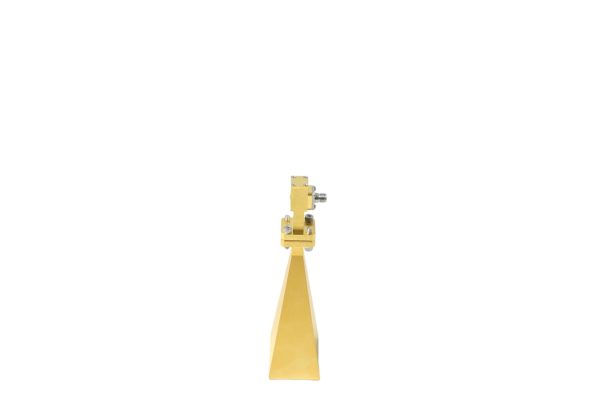

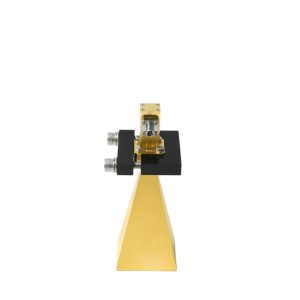

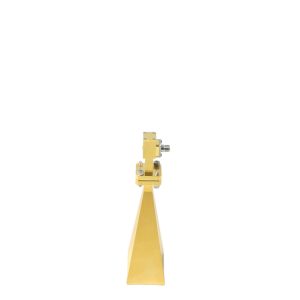

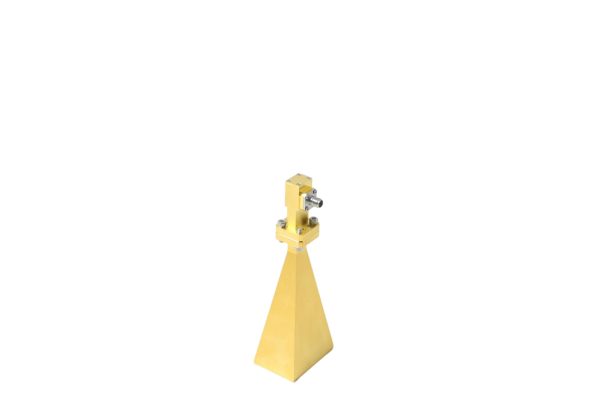

20 dBi Gain, 18 GHz to 40 GHz Broadband Horn Antenna

$2,175

OBH-180400 double ridge horn antennas operate broadband from 18GHz to 40GHz. The antenna supports linear polarized waveforms. This antenna is appropriate for the test of wireless and telecom communication antennas. High gain and low VSWR permit the measurement of weak signals and the generation of high field strengths without any significant return loss.

OBH-180400 is calibrated individually in line with ANSI C63.5-2006, making the antennas ideal for EMC/RF measurements. OBH-180400's radiation pattern contains only one single main lobe over the entire frequency range without any other side lobes. The antenna is low weight within 0.5kg and has a rugged construction.

SKU: OBH-180400 Categories: Broadband Horn Antenna, RF Antenna

Description

OBH-180400 double ridge horn antennas operate broadband from 18GHz to 40GHz. The antenna supports linear polarized waveforms. This antenna is appropriate for the test of wireless and telecom communication antennas. High gain and low VSWR permit the measurement of weak signals and the generation of high field strengths without any significant return loss.

OBH-180400 is calibrated individually in line with ANSI C63.5-2006, making the antennas ideal for EMC/RF measurements. OBH-180400's radiation pattern contains only one single main lobe over the entire frequency range without any other side lobes. The antenna is low weight within 0.5kg and has a rugged construction.

SPEC

Broadband Horn Antenna Specifications

20 dBi Gain, 18 GHz to 40 GHz

OBH-180400-20

Property

Value

Min. Frequency (GHz)

18

Max. Frequency (GHz)

40

Gain(dBi)

20

VSWR (Max.)

1.8

Polarization

Linear

Cross Polar Isolation (dB)

30

Impedance(Ohm)

50

Features

Broad Frequency Range of 18 GHz to 40 GHz

Linearly Polarized High Gain, Low VSWR

Individually Calibrated

Linear polarized with high polarization purity

Applications OBH-180400-20

FCC, MIL-STD, VDE, and TEMPEST Testing

Transmission and receiving applications

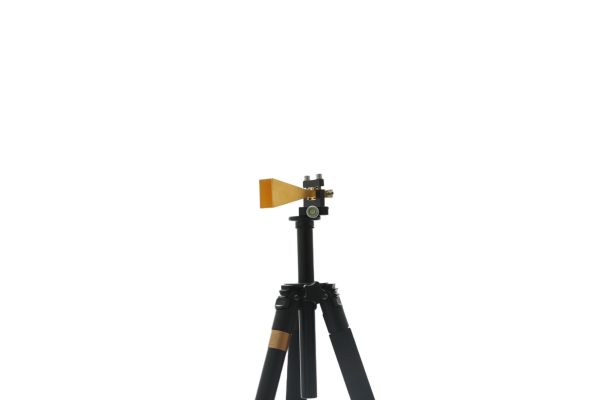

System Setup

PDF

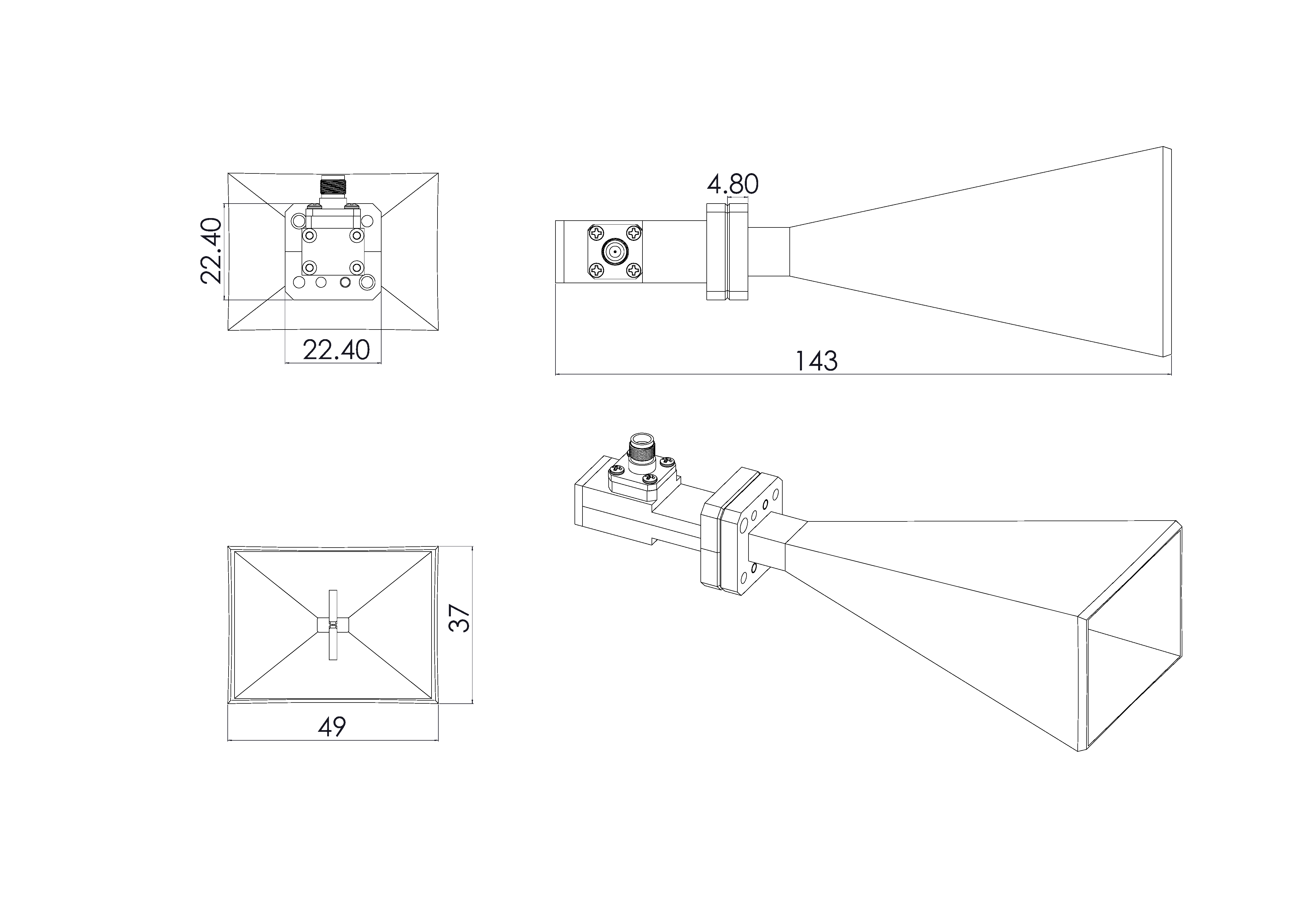

Outline

20 dBi Gain, 18 GHz to 40 GHz Broadband Horn Antenna

Additional information

Min. Frequency (GHz)

18

Max. Frequency (GHz)

40

Gain (dBi)

10

VSWR (Max.)

2

Cross Polar Isolation (dB)

50

Polarization

Single Linear

Impedance (Ω)

50
