20 dBi Gain, 58 GHz to 68 GHz, 0.15″ Diameter Circular Waveguide WR-15 Waveguide V Band Conical Horn Antennas

20 dBi Gain, 58 GHz to 68 GHz, 0.15″ Diameter Circular Waveguide WR-15 Waveguide V Band Conical Horn Antennas

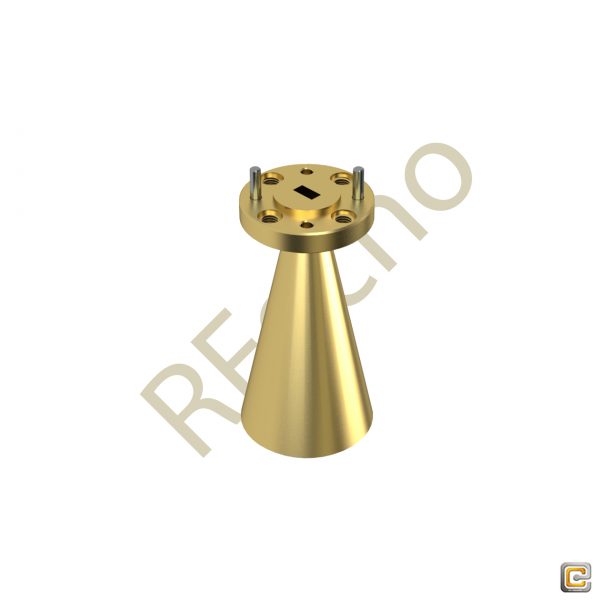

Model OCN-15-20 is a V Band conical horn antenna that operates from 58 GHz to 68 GHz. The antenna offers 20 dB nominal gain and a typical half power beamwidth of 16 degrees on the E-plane and 20 degrees on the H-plane.

The horn also offers typical side lobes of 20 dB on the E-plane and 28 dB on the H-plane. The conical horn can support linear and circular polarization. The input of this antenna is a 0.15 diameter circular waveguide with UG-385/U-M flange.

Description

SPEC

Conical Horn Antennas

20 dBi Gain, 58 GHz to 68 GHz, 0.15″ Diameter Circular Waveguide WR-15 Waveguide V Band Conical Horn Antennas

OCN-15-20

Model OCN-15-20 is a V Band conical horn antenna that operates from 58 GHz to 68 GHz. The antenna offers 20 dB nominal gain and a typical half power beamwidth of 16 degrees on the E-plane and 20 degrees on the H-plane.

The horn also offers typical side lobes of 20 dB on the E-plane and 28 dB on the H-plane. The conical horn can support linear and circular polarization. The input of this antenna is a 0.15 diameter circular waveguide with UG-385/U-M flange.

Property

Value

Min. Frequency (GHz)

58

Max. Frequency (GHz)

68

Gain(dBi)

20

3 dB Beamwidth, E-plane (?)

16

3 dB Beamwidth, H-plane (?)

20

Side Lobes, E-Plane (dB)

20

Side Lobes, H-Plane (dB)

28

Return Loss (dB)

23

Waveguide

WR-15

Band Type

V Band

Flange

UG-385/U-M flange

Diameter (Inch)

0.15

VSWR

NA

Features

Circular Waveguide Interface

Precisely Machined and Gold Plated

High Return Loss

Linear and Circular Polarization

Applications

Antenna Ranges

Feed Horns

System Setups

PDF

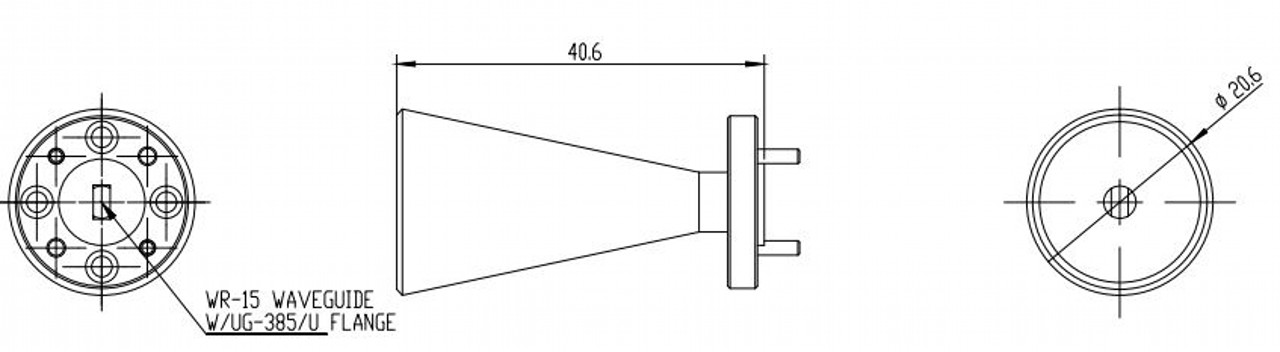

Outline

OCN 15 20 outline 20 dBi Gain, 58 GHz to 68 GHz, 0.15" Diameter Circular Waveguide WR-15  Waveguide V Band Conical Horn Antennas

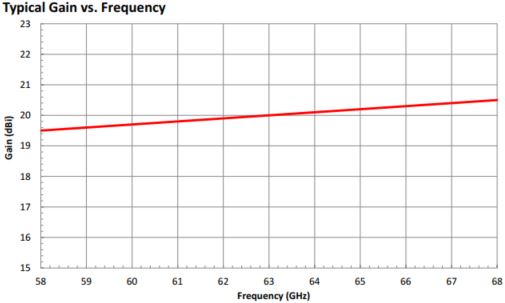

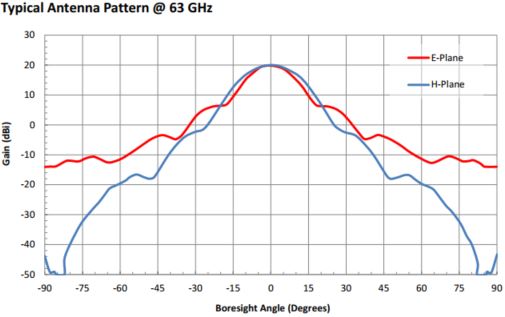

Plot

OCN 15 20 plot1 20 dBi Gain, 58 GHz to 68 GHz, 0.15" Diameter Circular Waveguide WR-15  Waveguide V Band Conical Horn AntennasOCN 15 20 plot2 20 dBi Gain, 58 GHz to 68 GHz, 0.15" Diameter Circular Waveguide WR-15  Waveguide V Band Conical Horn Antennas

Additional information

Min. Frequency (GHz)

58

Max. Frequency (GHz)

68

Gain (dBi)

20

Waveguide

VSWR

NA

Side Lobes, H-Plane (dB)

Side Lobes, E-Plane (dB)

Flange

Band Type

Return Loss (dB)

Diameter (inch)
