200 MHz to 15 GHz, SPI Surface-Mount Frequency Synthesizer – OTFS10-15
- Output frequency range: 200 MHz–15 GHz
- Frequency step: 10 MHz
- Frequency switching time: ≤500 µs
- Output power: 3 ±5 dBm (200 MHz–14 GHz); -5 ±5 dBm (14–15 GHz)
The OTFS10-15 is a surface-mount frequency synthesizer with an output frequency range of 200 MHz to 15 GHz. Control interface: SPI. Reference frequency: 100 MHz. The frequency step is 10 MHz. Frequency switching time: ≤500 µs. Output power: 3 ±5 dBm (200 MHz-14 GHz); -5 ±5 dBm (14-15 GHz). Dimensions: 20 × 16 × 4 mm. Operating temperature: -40 to +70 °C.
- Description
- Datasheet

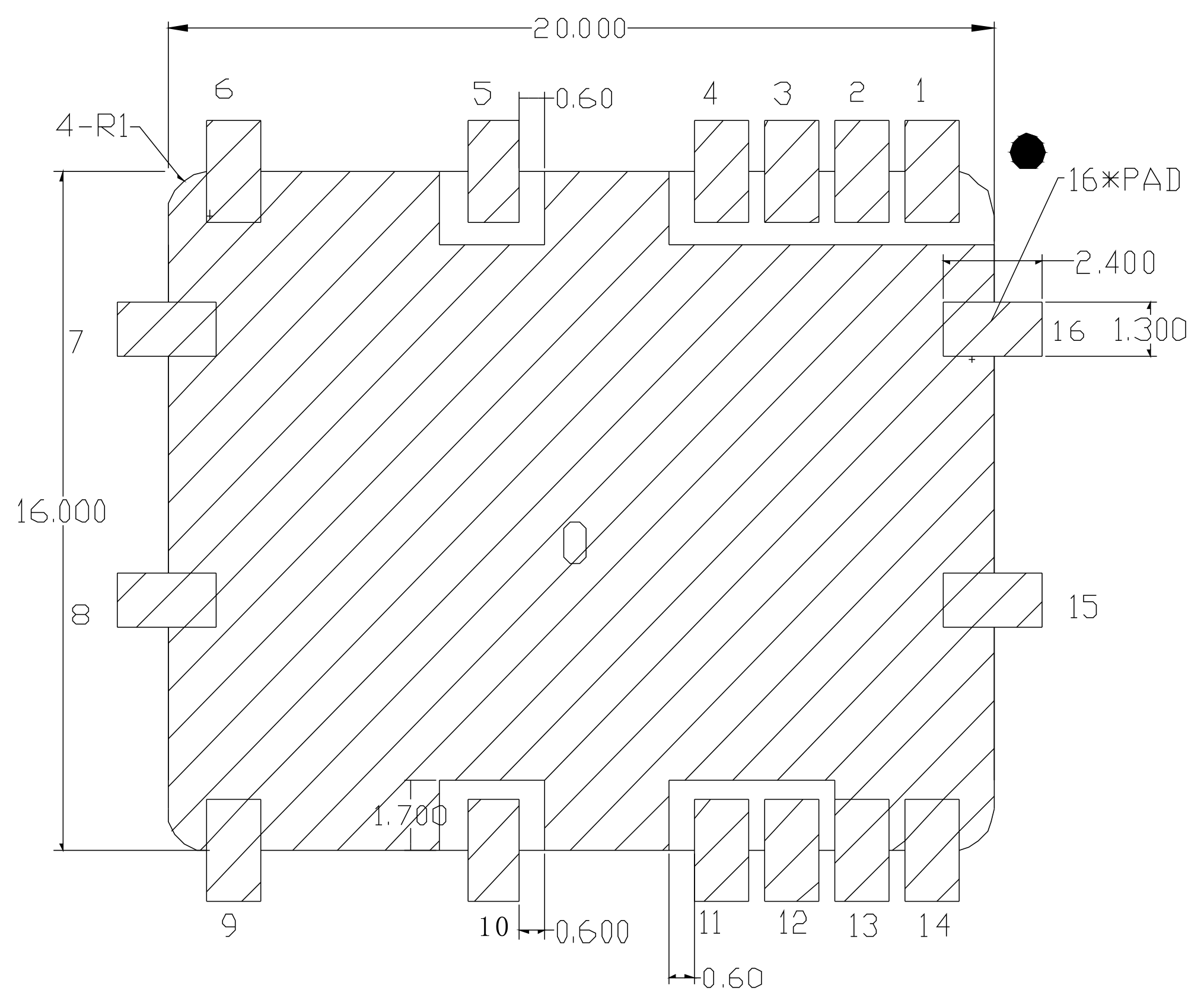

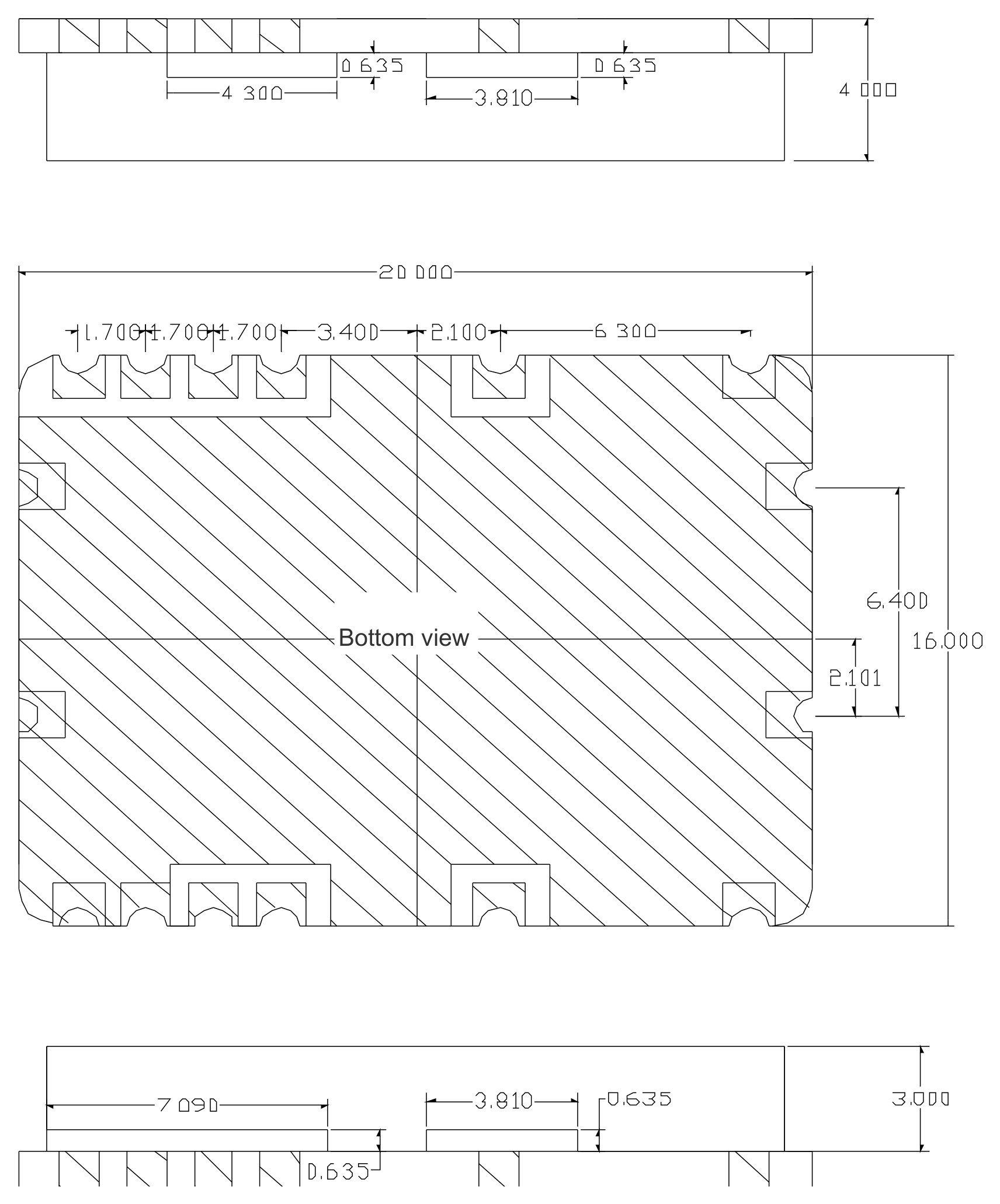

- Outline
- Reviews (0)
Description
The OTFS10-15 is a surface-mount frequency synthesizer with an output frequency range of 200 MHz to 15 GHz. Control interface: SPI. Reference frequency: 100 MHz. The frequency step is 10 MHz. Frequency switching time: ≤500 µs. Output power: 3 ±5 dBm (200 MHz-14 GHz); -5 ±5 dBm (14-15 GHz). Dimensions: 20 × 16 × 4 mm. Operating temperature: -40 to +70 °C.
| OTFS10-15 | |
| 200 MHz to 15 GHz, SPI Surface-Mount Frequency Synthesizer – OTFS10-15 | |
| Property | Value |
|---|---|
| Output frequency range | 200 MHz–15 GHz |
| Frequency step | 10 MHz |
| Frequency switching time | ≤500 µs |
| Output power | 3 ±5 dBm (200 MHz–14 GHz); -5 ±5 dBm (14–15 GHz) |
| Frequency stability | Tracks the external reference |
| Spurious level | ≤-65 dBc (200 MHz–14 GHz); ≤-60 dBc (14–15 GHz) |
| Harmonic level | ≤-3 dBc |
| Reference frequency | 100 MHz |
| Reference input power | 5 ±3 dBm |
| Reference phase noise | -125 dBc/Hz at 100 Hz offset; -153 dBc/Hz at 1 kHz offset; -160 dBc/Hz at 10 kHz offset; -160 dBc/Hz at 100 kHz offset; -165 dBc/Hz at 1 MHz offset |
| Supply voltage | Analog and digital: +3.3 V |
| Supply current | Analog: 340 mA; digital: 10 mA |
| Control interface | SPI |
| Operating temperature | -40 to +70 °C |
| Storage temperature | -55 to +85 °C |
| Dimensions | 20 × 16 × 4 mm |
| Specification conditions | Phase noise applies at 10 MHz steps and degrades at smaller steps. Below 10 MHz steps, spurious level is -50 dBc. External harmonic filtering is recommended. |
| Switching-time definition | From command reception until frequency error is less than 1 MHz. |
| Phase Noise (dBc/Hz) | |
| 0.5 GHz | 100 Hz offset: ≤-108; 1 kHz offset: ≤-119; 10 kHz offset: ≤-126; 100 kHz offset: ≤-126; 1 MHz offset: ≤-144 |
| 1 GHz | 100 Hz offset: ≤-100; 1 kHz offset: ≤-113; 10 kHz offset: ≤-120; 100 kHz offset: ≤-120; 1 MHz offset: ≤-138 |
| 5 GHz | 100 Hz offset: ≤-88; 1 kHz offset: ≤-99; 10 kHz offset: ≤-105; 100 kHz offset: ≤-105; 1 MHz offset: ≤-124 |
| 10 GHz | 100 Hz offset: ≤-82; 1 kHz offset: ≤-93; 10 kHz offset: ≤-99; 100 kHz offset: ≤-100; 1 MHz offset: ≤-118 |
| 15 GHz | 100 Hz offset: ≤-79; 1 kHz offset: ≤-91; 10 kHz offset: ≤-96; 100 kHz offset: ≤-96; 1 MHz offset: ≤-114 |
| Features | |
| |
