200 MHz to 15 GHz, SPI Frequency Synthesizer – OTFS14-15
- Output frequency range: 200 MHz–15 GHz
- Frequency step: 1 Hz
- Frequency switching time: 500 µs typical; 1000 µs maximum
- Output power: 1 ±6 dBm
The OTFS14-15 is a frequency synthesizer with an output frequency range of 200 MHz to 15 GHz. Control interface: SPI. Reference frequency: 100 MHz. The frequency step is 1 Hz. Frequency switching time: 500 µs typical; 1000 µs maximum. Output power: 1 ±6 dBm. Dimensions: 38 × 38 × 10 mm. Operating temperature: -40 to +70 °C.
- Description
- Datasheet

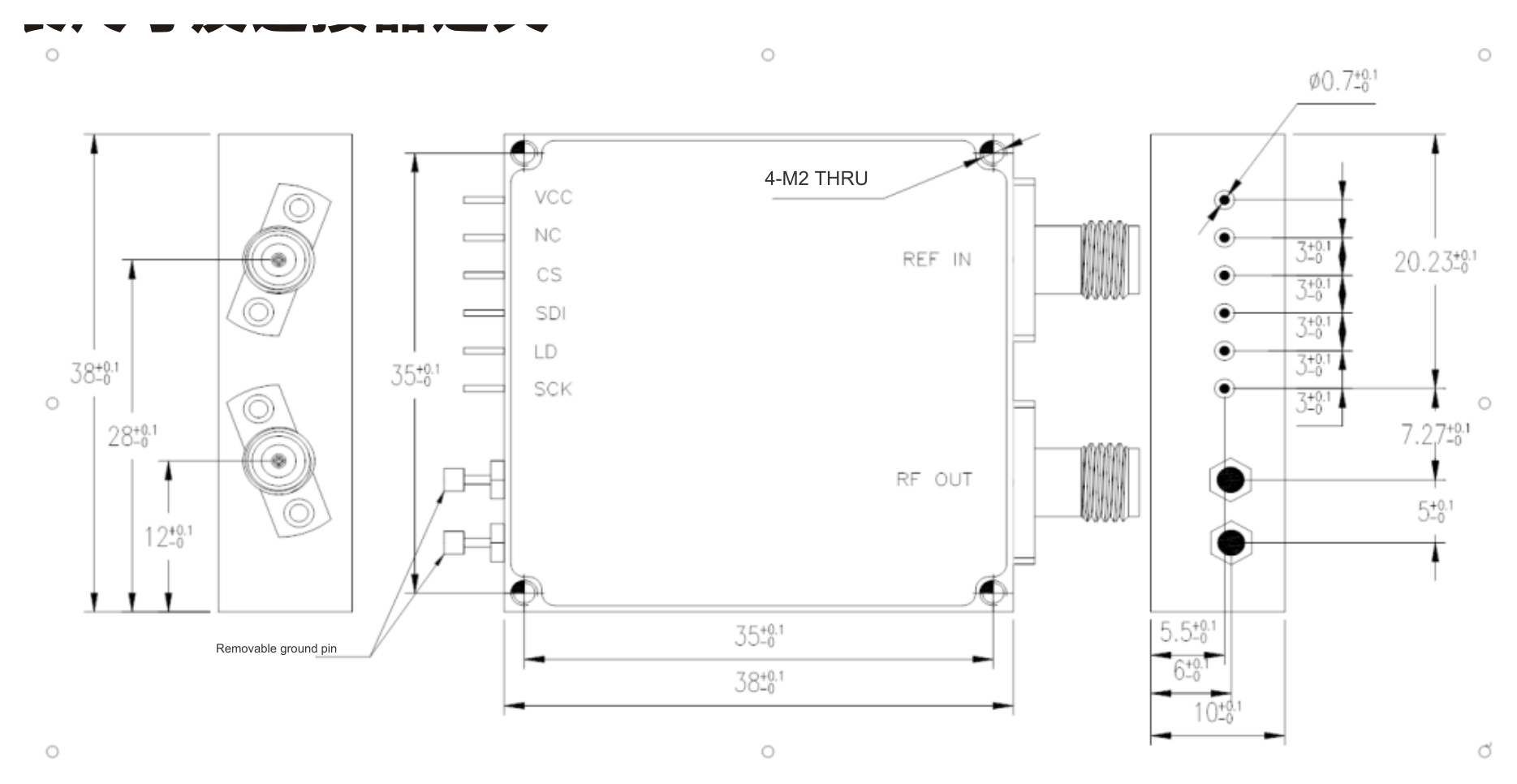

- Outline
- Reviews (0)
Description
The OTFS14-15 is a frequency synthesizer with an output frequency range of 200 MHz to 15 GHz. Control interface: SPI. Reference frequency: 100 MHz. The frequency step is 1 Hz. Frequency switching time: 500 µs typical; 1000 µs maximum. Output power: 1 ±6 dBm. Dimensions: 38 × 38 × 10 mm. Operating temperature: -40 to +70 °C.
| OTFS14-15 | |
| 200 MHz to 15 GHz, SPI Frequency Synthesizer – OTFS14-15 | |
| Property | Value |
|---|---|
| Output frequency range | 200 MHz–15 GHz |
| Frequency step | 1 Hz |
| Frequency switching time | 500 µs typical; 1000 µs maximum |
| Output power | 1 ±6 dBm |
| Spurious level | -65 dBc typical; ≤-60 dBc maximum |
| Harmonic level | ≤-5 dBc |
| Reference frequency | 100 MHz |
| Reference input power | 7 ±3 dBm |
| Reference phase noise | -125 dBc/Hz at 100 Hz offset; -153 dBc/Hz at 1 kHz offset; -160 dBc/Hz at 10 kHz offset; -160 dBc/Hz at 100 kHz offset; -165 dBc/Hz at 1 MHz offset |
| Supply voltage | +3.3 V ±0.1 V; maximum +3.4 V |
| Supply current | 0.68 A |
| Control interface | SPI |
| Operating temperature | -40 to +70 °C |
| Storage temperature | -55 to +85 °C |
| Dimensions | 38 × 38 × 10 mm |
| RF/reference connectors | Removable SMA-K |
| Startup time | ≤2 s |
| Frequency stability | Tracks the external reference |
| Phase Noise (dBc/Hz) | |
| 0.5 GHz | 100 Hz offset: ≤-100; 1 kHz offset: ≤-111; 10 kHz offset: ≤-118; 100 kHz offset: ≤-120; 1 MHz offset: ≤-136 |
| 1 GHz | 100 Hz offset: ≤-94; 1 kHz offset: ≤-105; 10 kHz offset: ≤-112; 100 kHz offset: ≤-114; 1 MHz offset: ≤-130 |
| 5 GHz | 100 Hz offset: ≤-80; 1 kHz offset: ≤-91; 10 kHz offset: ≤-98; 100 kHz offset: ≤-100; 1 MHz offset: ≤-116 |
| 10 GHz | 100 Hz offset: ≤-74; 1 kHz offset: ≤-85; 10 kHz offset: ≤-92; 100 kHz offset: ≤-94; 1 MHz offset: ≤-110 |
| 15 GHz | 100 Hz offset: ≤-70; 1 kHz offset: ≤-81; 10 kHz offset: ≤-88; 100 kHz offset: ≤-90; 1 MHz offset: ≤-106 |
| Features | |
| |
| Specification Notes | |
| The spurious specification covers far-out spurs. Internal optimization can achieve 70 dBc suppression of close-in spurs. Above 11 GHz, an appropriate absorptive high-pass filter is recommended for improved spurious suppression. Additional filtering may be selected for the operating band according to the spur distribution. | |
