23 dBi Gain, 26.5 GHz to 40 GHz, WR-28 Waveguide Millimeter SGH Antenna
$799
This model OLB-28-23 is a Millimeter SGH Antenna, operating frequency range is 26.5 GHz to 40 GHz. Millimeter SGH Antenna offers nominal gain 23dBi and typical half power beam width on the E-plane and H-plane is E 11° / H 13°.
Millimeter SGH Antenna supports linear polarized waveforms Linear. The input of this antenna is a WR-28 waveguide withUG-599/U Flange. The Impedance used Standard gain horn antenna is 50 Ohms.
- Description
- Additional information
- Reviews (0)
Description
SPEC
|
Millimeter SGH Antenna |
|
|
23 dBi Gain, 26.5 GHz to 40 GHz, WR-28 Waveguide Millimeter SGH Antenna |
|
|
OLB-28-23 |
|
|
This model OLB-28-23 is a Millimeter SGH Antenna, operating frequency range is 26.5 GHz to 40 GHz. Millimeter SGH Antenna offers nominal gain 23dBi and typical half power beam width on the E-plane and H-plane is E 11° / H 13°. Millimeter SGH Antenna supports linear polarized waveforms Linear. The input of this antenna is a WR-28 waveguide withUG-599/U Flange. The Impedance used Standard gain horn antenna is 50 Ohms. |
|
|
Property |
Value |
|
Min. Frequency (GHz) |
26.5 |
|
Max. Frequency (GHz) |
40 |
|
Gain(dBi) |
23 |
|
HPBW 3 dB Beamwidth |
E 11° / H 13° |
|
Waveguide |
WR-28 |
|
Flange |
UG-599/U Flange |
|
Material |
Cu |
|
Polarization |
Linear |
|
Impedance (?) |
50 |
|
Features |
|
|
Precisely Machined and Gold Plated |
|
|
Low VSWR |
|
|
Light Weight |
|
|
Linear Polarization |
|
|
Low Return Loss |
|
|
Rectangular Waveguide Interface |
|
|
Lower sidelobes and symmetrical radiation patterns |
|
|
Applications |
|
|
Antenna Ranges |
|
|
Antenna Gain Measurements |
|
|
System Setup |
|

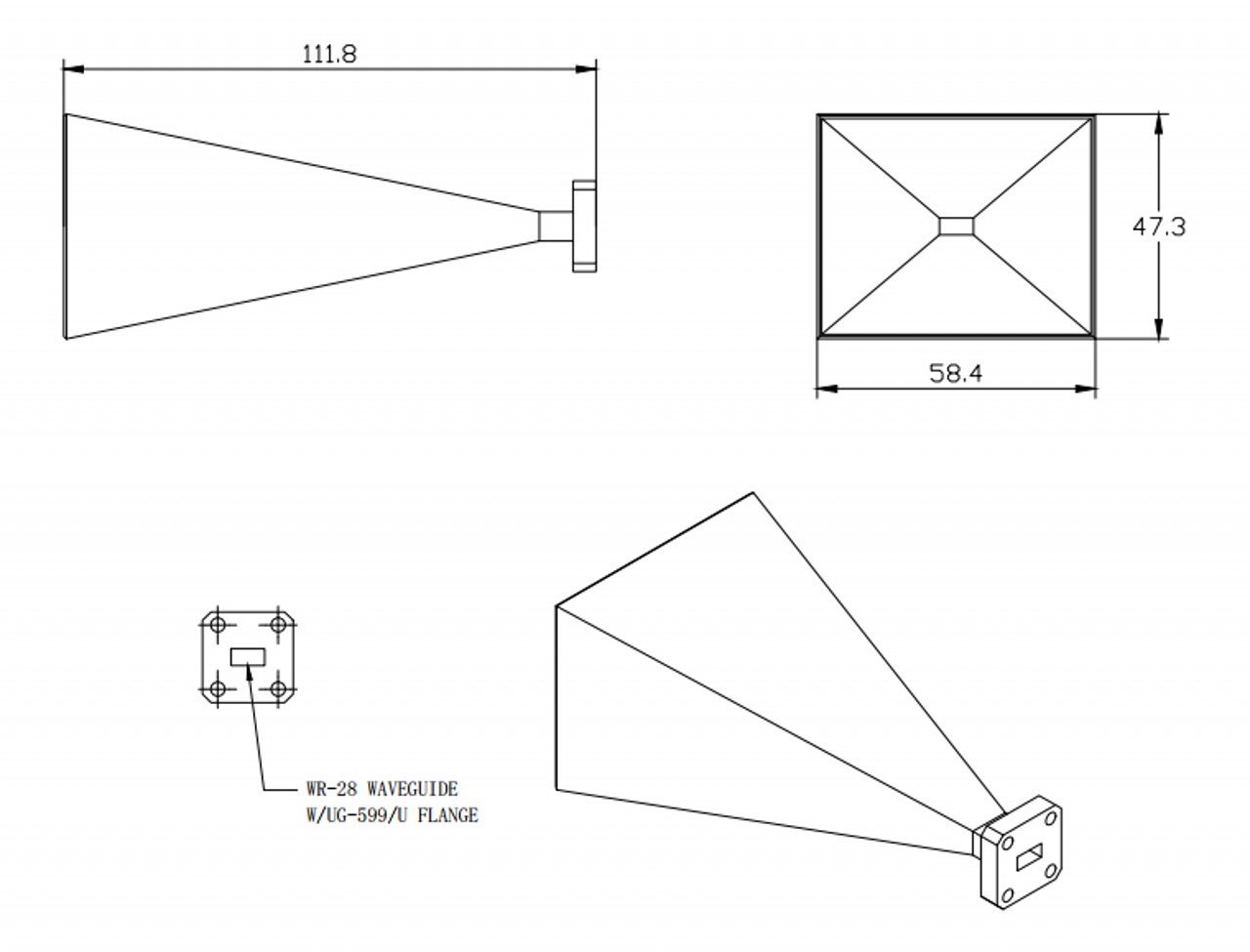

Outline

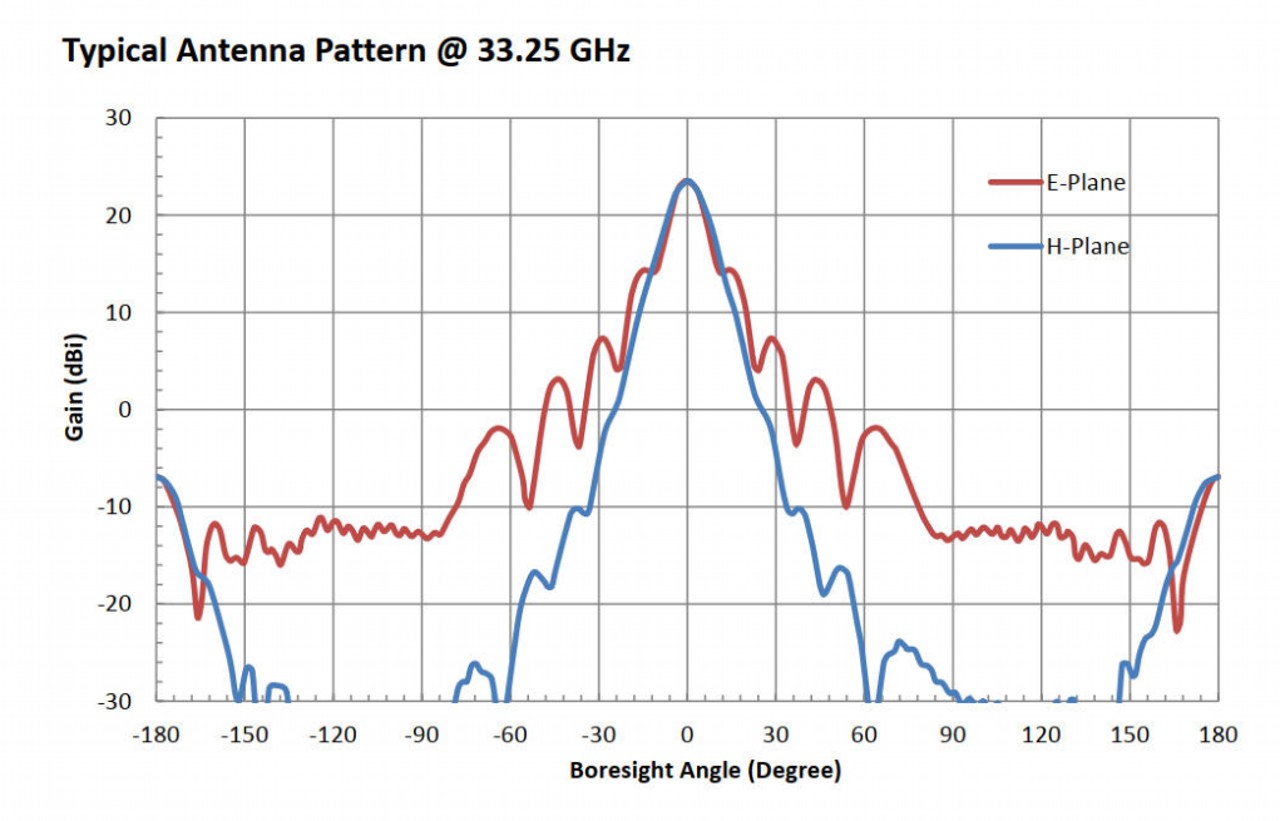

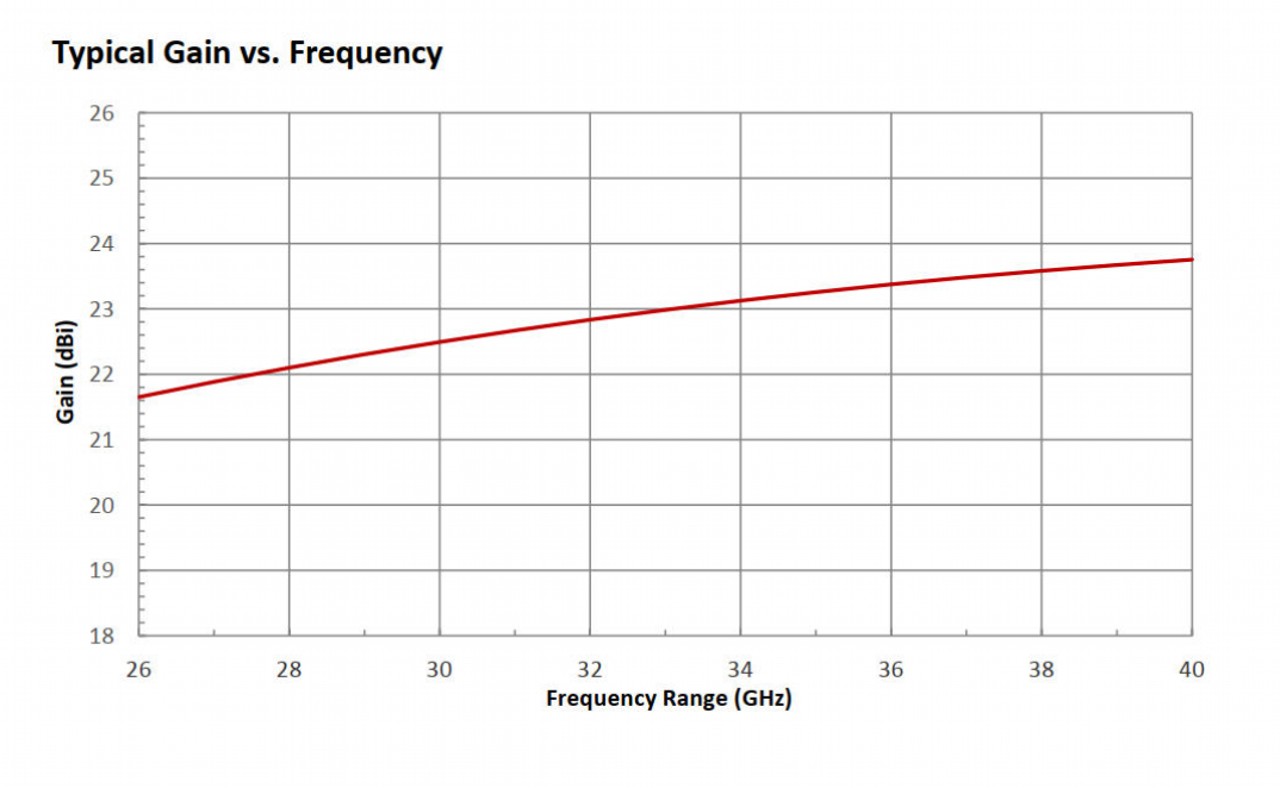

Plot
