25 dBi Gain, 68 GHz to 77 GHz, 0.125″ Diameter Circular Waveguide WR-125 Waveguide E Band Conical Horn Antennas

25 dBi Gain, 68 GHz to 77 GHz, 0.125″ Diameter Circular Waveguide WR-125 Waveguide E Band Conical Horn Antennas

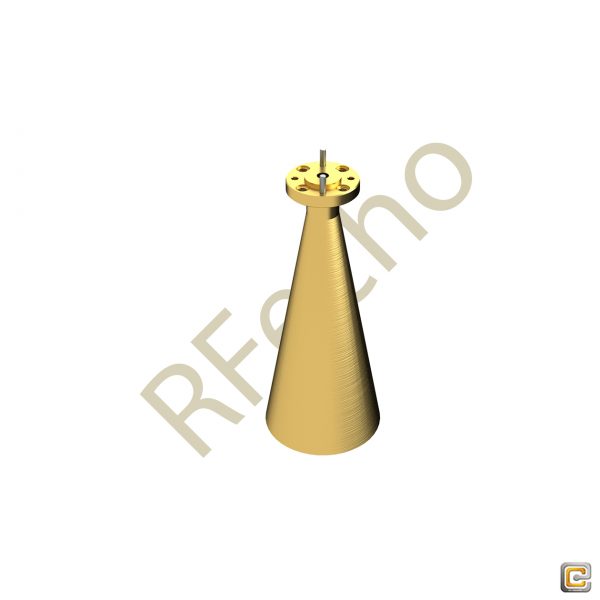

Model OCN-125-25 is a E Band conical horn antenna that operates from 68 GHz to 77 GHz. The antenna offers 25 dB nominal gain and a typical half power beamwidth of 9 degrees on the E-plane and 10 degrees on the H-plane.

The horn also offers typical side lobes of -18 dB on the E-plane and -28 dB on the H-plane. The conical horn can support linear and circular polarization. The input of this antenna is a 0.125 diameter circular waveguide with UG-387/U-M flange.

Description

SPEC

Conical Horn Antennas

25 dBi Gain, 68 GHz to 77 GHz, 0.125″ Diameter Circular Waveguide WR-125 Waveguide E Band Conical Horn Antennas

OCN-125-25

Model OCN-125-25 is a E Band conical horn antenna that operates from 68 GHz to 77 GHz. The antenna offers 25 dB nominal gain and a typical half power beamwidth of 9 degrees on the E-plane and 10 degrees on the H-plane.

The horn also offers typical side lobes of -18 dB on the E-plane and -28 dB on the H-plane. The conical horn can support linear and circular polarization. The input of this antenna is a 0.125 diameter circular waveguide with UG-387/U-M flange.

Property

Value

Min. Frequency (GHz)

68

Max. Frequency (GHz)

77

Gain(dBi)

25

3 dB Beamwidth, E-plane (?)

9

3 dB Beamwidth, H-plane (?)

10

Side Lobes, E-Plane (dB)

-18

Side Lobes, H-Plane (dB)

-28

Return Loss (dB)

NA

Waveguide

WR-125

Band Type

E Band

Flange

UG-387/U-M flange

Diameter (Inch)

0.125

VSWR

1.15:1

Features

Circular Waveguide Interface

Precisely Machined and Gold Plated

High Return Loss

Linear and Circular Polarization

Applications

Antenna Ranges

Feed Horns

System Setups

PDF

Outline

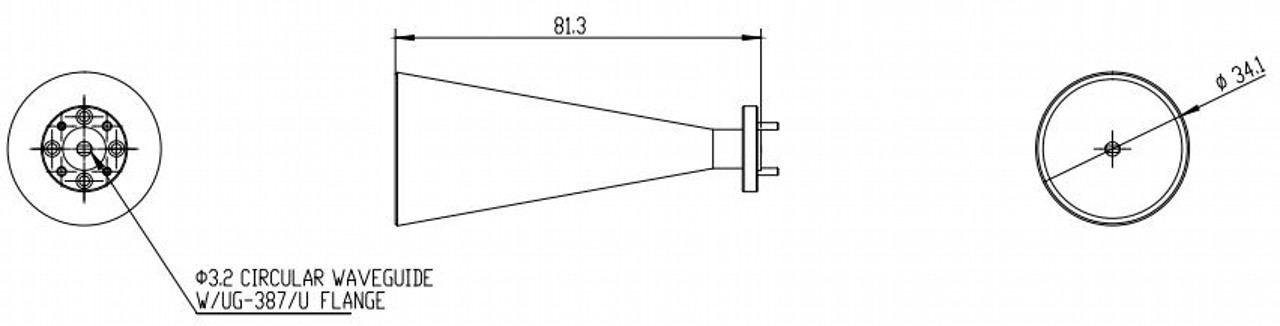

OCN 125 25 outline 25 dBi Gain, 68 GHz to 77 GHz, 0.125" Diameter Circular Waveguide WR-125 Waveguide E Band Conical Horn Antennas

Plot

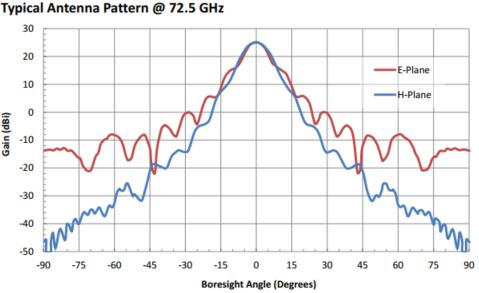

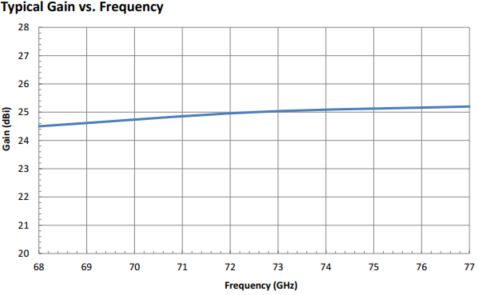

OCN 125 25 plot1 25 dBi Gain, 68 GHz to 77 GHz, 0.125" Diameter Circular Waveguide WR-125 Waveguide E Band Conical Horn AntennasOCN 125 25 plot2 25 dBi Gain, 68 GHz to 77 GHz, 0.125" Diameter Circular Waveguide WR-125 Waveguide E Band Conical Horn Antennas

Additional information

Min. Frequency (GHz)

68

Max. Frequency (GHz)

77

Gain (dBi)

25

Waveguide

VSWR

1.15:1

Side Lobes, H-Plane (dB)

Side Lobes, E-Plane (dB)

Flange

Band Type

Return Loss (dB)

Diameter (inch)
