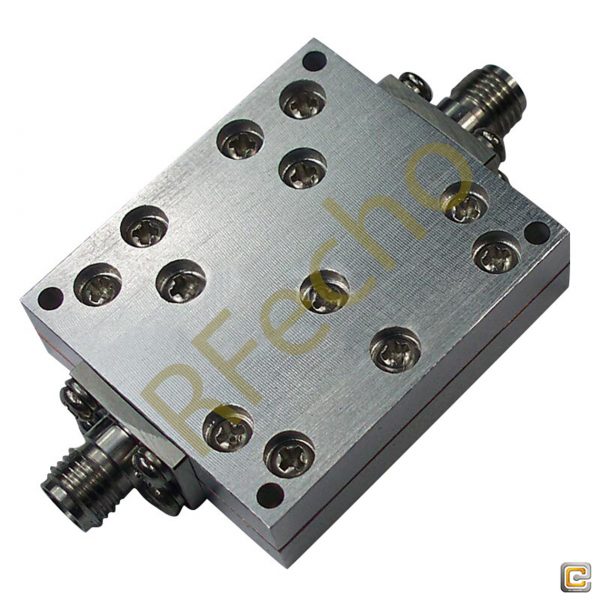

High Pass Passive Microwave Filter 3GHz to 12.75GHz Cavity Passive High Pass Filter rejection ≥ 50dB @ DC~2.5GHz with SMA Female Connector

High Pass Passive Microwave Filter model OHP: 3000-12750 also known as low cut-off filter and low resistance filter, allows frequency higher than a certain cut-off frequency to pass through and greatly attenuates lower frequencies. This High Pass Passive Microwave Filter Manufactured with a passband frequency from 3GHz to 12.75GHz and a Cut-off frequency 2.5GHz. Our Cavity Passive High Pass Filter provides a nominal insertion loss of ≤1.5dB across its passband and a typical rejection of ≥50dB @ DC – 2.5GHz. Since the high end cutoff frequency of High Pass Passive Microwave Filter can be changed by modifying the design, custom designs can be offered under different model numbers. This Cavity Passive High Pass Filter has Passband Return Loss of ≥10dB and power handling of 30W. High Pass Passive Microwave Filter is manufactured with SMA Female Connector and Operating temperature of 15C to 40C.
3GHz to 12.75GHz Ocean High Pass Cavity filter from RFecho is just one part in a large selection of our RF Components. Our 3GHz to 12.75GHz High Pass Passive Microwave Filter is ready for shipping worldwide after purchase. Additional specs of this Cavity Passive High Pass Filter with SMA Female connector input can be found on the pdf file. RFecho also stocks a wide array of other RF components that ship from our warehouse for all your RF components needs.

SKU: OHP-3000-12750 Categories: High Pass Filter, RF Cavity Filter, RF Filters

Description

RFecho High Pass Cavity Filter (abbreviation: OHP), also known as a low cut-off filter and low resistance filter, allows frequency higher than a certain cut-off frequency to pass through and greatly attenuates lower frequencies.

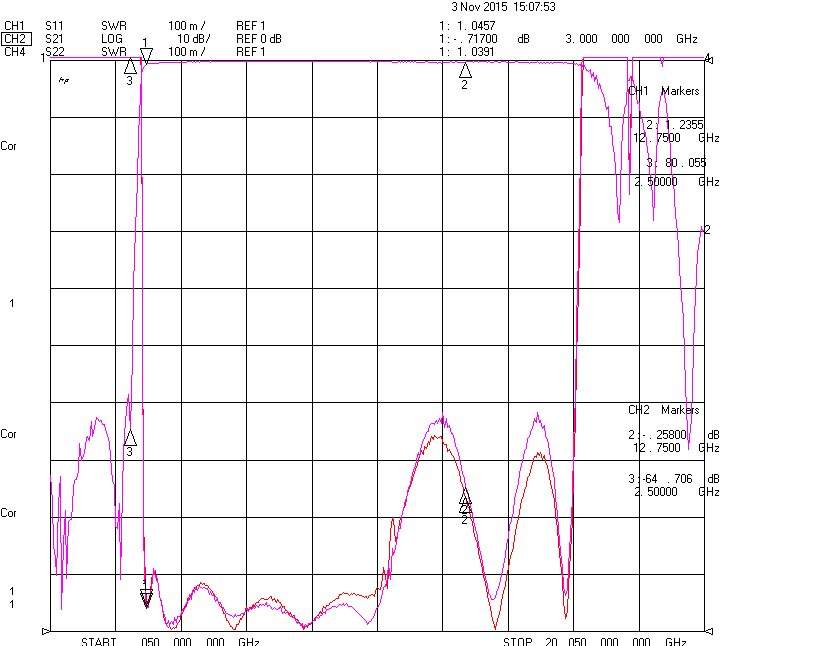

High Pass Cavity Filter – OHP-3000-12750:

  • Cut Off Frequency: 2.5GHz,
  • Pass Band Frequency:  3-12.75GHz,
  • Pass Band Insertion Loss: 1.5dB,
  • Pass Band VSWR: 2.0,
  • Rejection ≥50 dB @ DC-2.5GHz.

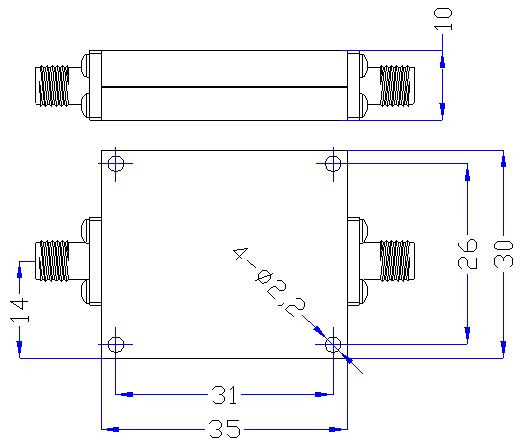

Additional information

Min. Pass Band Frequency (GHz)

3

Max. Pass Band Frequency (GHz)

12.5

Connection Type

SMA-Female

Power Handling (W)

30 Avg Max

Insertion Loss

≤1.5dB

VSWR

NA

Rejection

≥50 dB @ DC-2500MHz

Impedance (Ω)

NA

Surface Finish

Guide Oxygen or Black Paint
