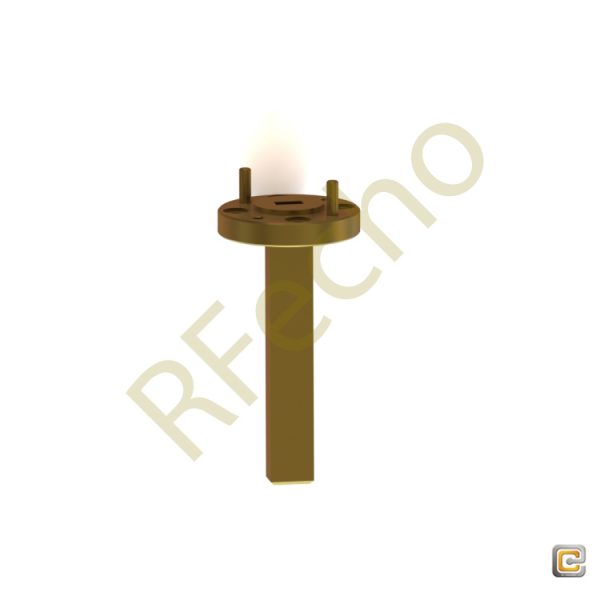

6.5 dBi Gain, 50 GHz to 75 GHz, WR-15 Waveguide Probe Antenna
Frequcncy: 50-75GHz
Gain: 6.5dBi.
High Return Loss
Rectangular Waveguide Interface
Precisely Machined and Gold Plated
OPRO-15 Waveguide Probe Antenna supports linear polarized waveforms
- Description
- Datasheet

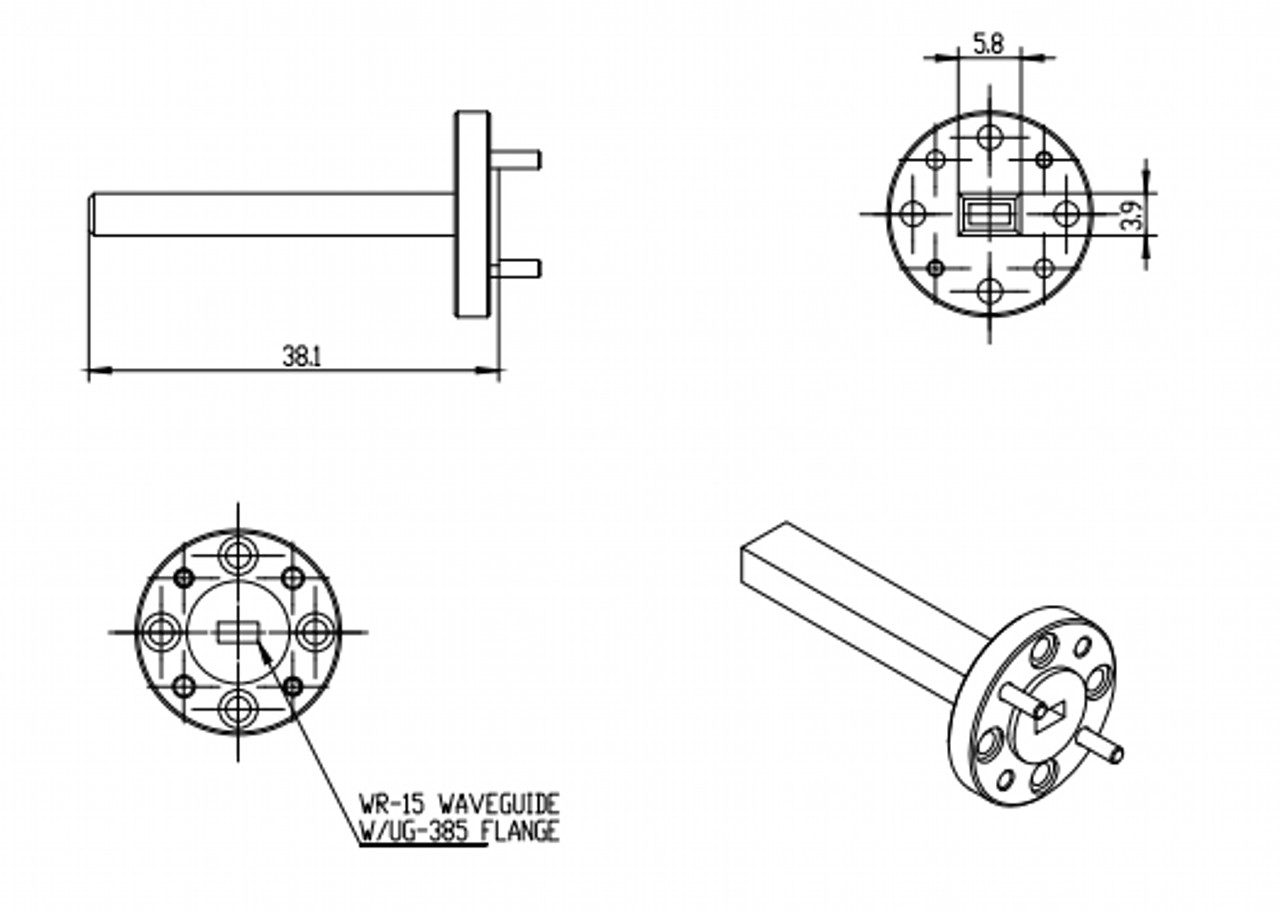

- Outline
- Plot
- Reviews (0)
Description
| Probe Antenna | |
| 6.5 dBi Gain, 50 GHz to 75 GHz, WR-15 Waveguide Probe Antenna | |
| OPRO-15 | |

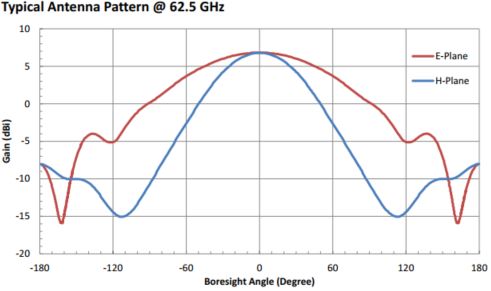

| Model OPRO-15 is a V Band Probe Antenna, operates from 50 GHz to 75 GHz. The antenna offers the nominal gain of 6.5 dBi, and 115 degrees typical half power beamwidth on the E-plane and 60 degrees typical halfpower beamwidth on the H-plane. Probe Antenna supports linear polarized waveforms. The input of this antenna is a WR-15 waveguide. Probe antenna offers the -10 dB on E-plan side lobes and -14 dB on H-plan side lobes. | |
| Property | Value |
| Min. Frequency (GHz) | 50 |
| Max. Frequency (GHz) | 75 |

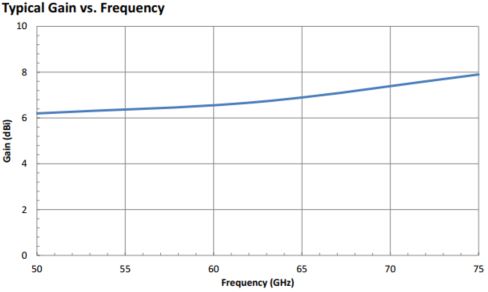

| Gain(dBi) | 6.5 |
| Waveguide | WR-15 |
| Polarization | Linear |
| HPBW 3 dB Beamwidth (E-Plane) | 115 |
| HPBW 3 dB Beamwidth (H-Plane) | 60 |
| Side Lobes, E-Plane (dB) | -10 |
| Side Lobes, H-Plane (dB) | -14 |
| VSWR | 2:1 |
| Band Type | V Band |
| Features | |
| Circular Waveguide Interface | |
| Precisely Machined and Gold Plated | |
| High Return Loss | |
| Linear Polarization | |
| Applications | |
| Antenna Ranges | |
| Feed Horns | |
| System Setups | |
