Broadband dual ridged horn antenna 2-20GHz, 4-13dBi Gain

Description

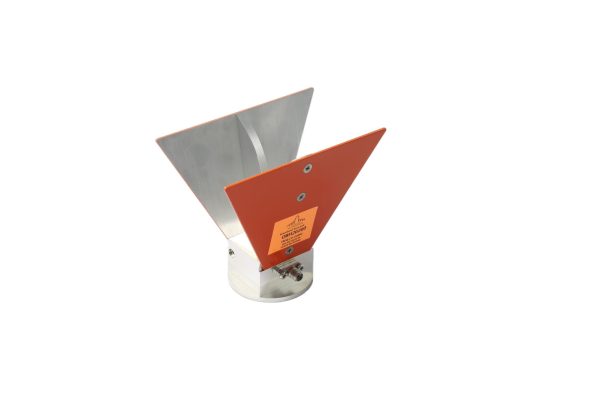

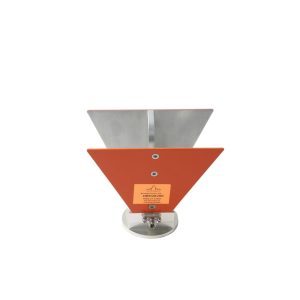

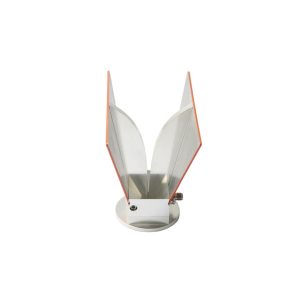

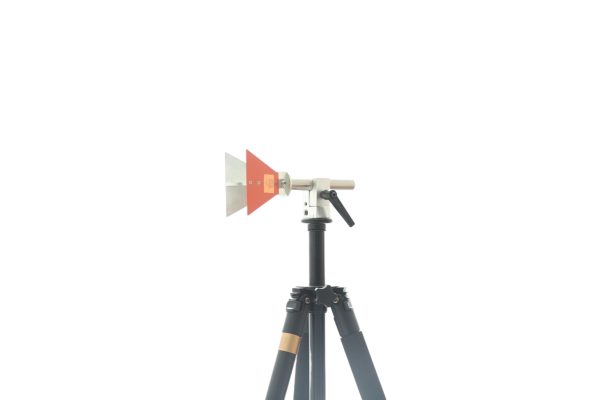

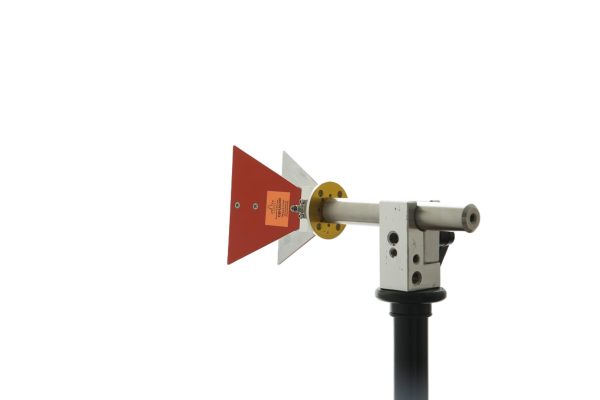

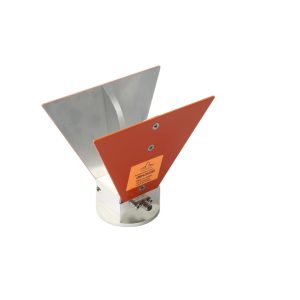

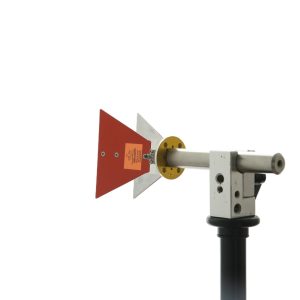

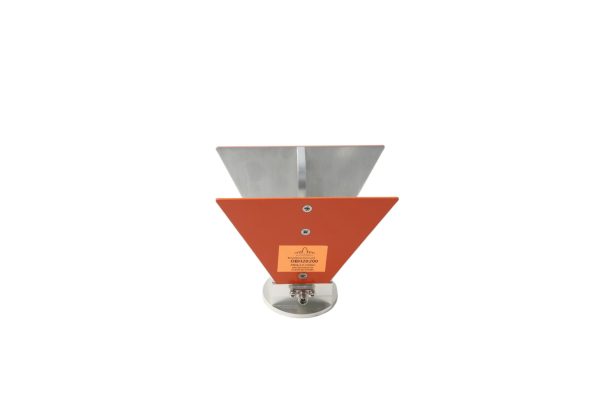

The OBH-20200 Dual-Ridged Horn Antenna is a cutting-edge broadband antenna designed for operation within a frequency range of 2GHz to 20GHz, effectively covering both the C and Ku bands. Its standout feature is its broadband capability, with a bandwidth that is 50% wider than similar antennas, allowing for a greater range of applications. Especially, this antenna is exceptionally lightweight, weighing only 136g. Throughout its operational bandwidth, the OBH-20200 maintains a VSWR of less than 2.0, ensuring optimal power transmission and minimal signal reflection. The antenna features a SMA interface and can handle maximum power of 100W.

Additionally, users receive comprehensive and accurate test data, including antenna factors, gain, VSWR, and radiation patterns. This data allows for precise integration into testing systems, providing flexibility and accuracy in various applications. Overall, the OBH-20200 combines advanced performance with user-friendly features, making it an invaluable tool for professionals in telecommunications and related fields.

With these benefits, the OBH-20200 is designed with various demanding applications. Firstly, it offers expanded communication capabilities by covering an additional 2GHz, making it ideal for higher-frequency applications and broader wireless communication systems. This antenna also supports higher bandwidth and data rates, essential for next-generation communication technologies. Additionally, the OBH-20200 excels in high-resolution radar applications, providing improved radar systems for advanced surveillance and target tracking in both military and civil contexts. Its capabilities extend to ground mapping and imaging, making it suitable for use in synthetic aperture radar (SAR) systems that require detailed imaging. Furthermore, the antenna enhances versatility in electronic warfare (EW) applications, enabling effective jamming and signal interception across a broader spectrum of frequencies, ensuring robust performance in diverse operational scenarios .Dual-Ridged Horn Antenna https://www.rfecho.com/product-category/rf-antenna/broadband-dual-ridged-horn-antenna/
