Ocean Microwave band-pass filter (Ocean band-pass filter,,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequency bandto pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-380000-1000, it’s Center Frequency(F0) is 38GHz, it’s Pass Band Bandwidth is  ±500MHz (37.5 ~38.5GHz), it’s Pass Band Insertion Loss is ≤1.5dB. It’s Stop Band frequency is≥55dB@ DC ~ 36.5GHz≥50dB @ 39.5 ~ 55GHz.





Availability: Available on backorder SKU: OBP-380000-1000 Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters

Description

Ocean Microwave band-pass filter (Ocean band-pass filter,,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequency bandto pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-380000-1000, it’s Center Frequency(F0) is 38GHz, it’s Pass Band Bandwidth is  ±500MHz (37.5 ~38.5GHz), it’s Pass Band Insertion Loss is ≤1.5dB. It’s Stop Band frequency is≥55dB@ DC ~ 36.5GHz≥50dB @ 39.5 ~ 55GHz.

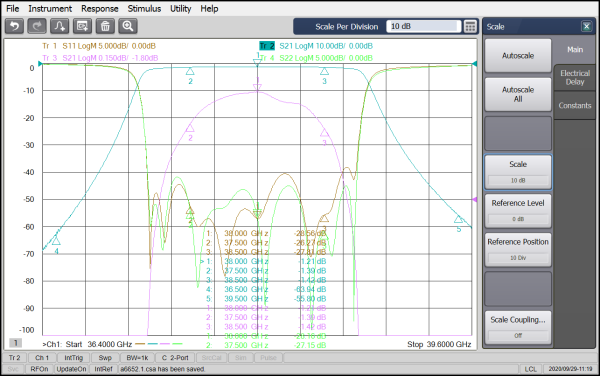

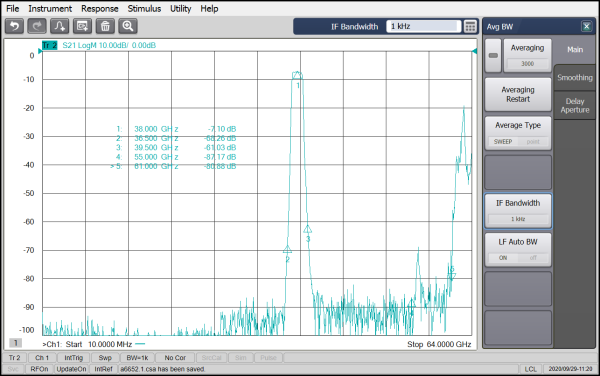

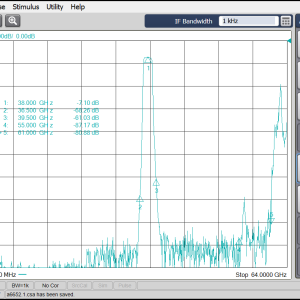

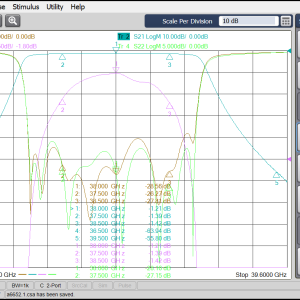

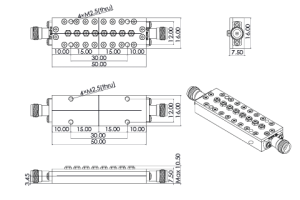

Outline

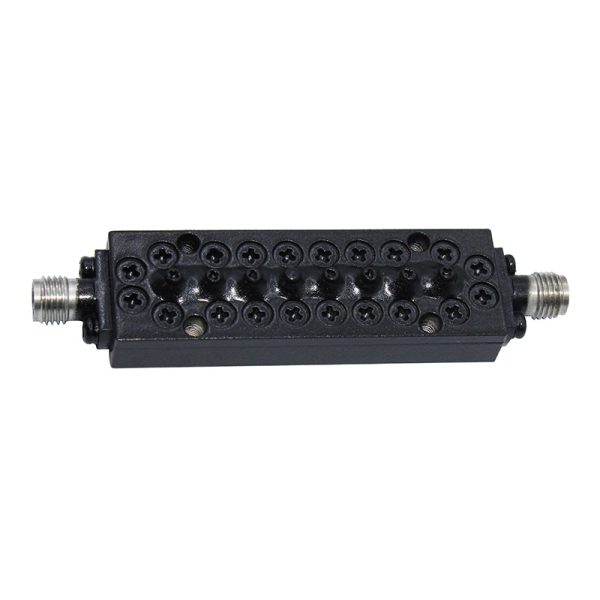

Band pass Filter From ±500MHz (37.5 ~38.5GHz) OBP-380000-1000 With SMA-Female Connectors

Bandpass Filter Datasheet (Click to download)

OBP-375000-5000NO.2

Additional information

Center Frequency (F0) (MHz)

38000

Min. Pass Band Frequency (MHz)

37500

Max. Pass Band Frequency (MHz)

38500

Pass Band Insertion Loss (dB)

≤1.5 ≤0.3 ≥18

Stop Band Rejection

≥55dB @ DC ~ 36.5GHz ≥50dB @ 39.5 ~ 55GHz

Impedance (Ω)

50

Power Handling (W)

≤5

Connection Type

2.92mm(K)-Female
