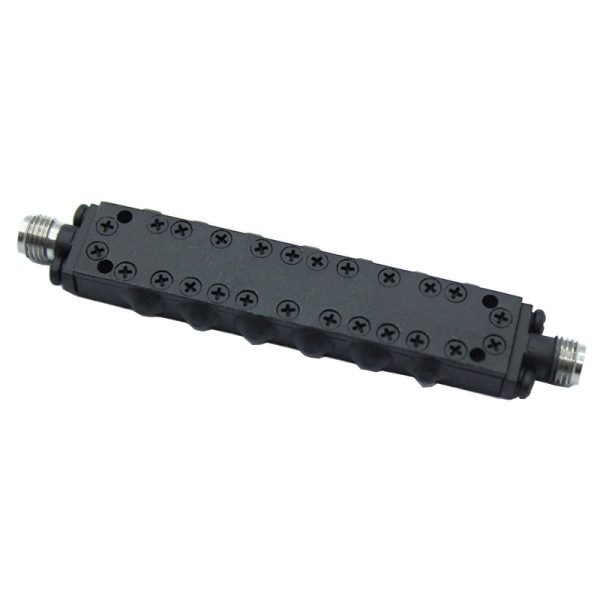

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.

The product name of this Ocean band-pass filter (OBP) is OBP-22200-3800, its Center Frequency(F0) is 22.2GHz, its Pass Band Bandwidth is 20.3~24.1GHz,its Pass Band Insertion Loss is ≤2.0dB, Pass BandVSWR is ≤1.8:1, and the Stop Bandfrequency is ≥45dB@19.2GHz≥45dB @25.2GHz≥70dB @18.4GHz≥70dB @26GHz.

Availability: Available on backorder SKU: OBP-22200-3800 Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters

Description

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.

The product name of this Ocean band-pass filter (OBP) is OBP-22200-3800, its Center Frequency(F0) is 22.2GHz, its Pass Band Bandwidth is 20.3~24.1GHz,its Pass Band Insertion Loss is ≤2.0dB, Pass BandVSWR is ≤1.8:1, and the Stop Bandfrequency is ≥45dB@19.2GHz≥45dB @25.2GHz≥70dB @18.4GHz≥70dB @26GHz.

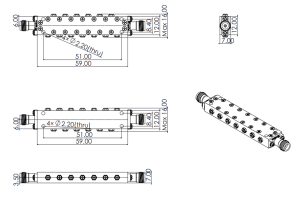

Outline

Band Pass Filter From  20.3~24.1GHz OBP-22200-3800 With 2.92mm(K)-Female Connectors

PDF

Band Pass Filter Datasheet (Click to download)

Additional information

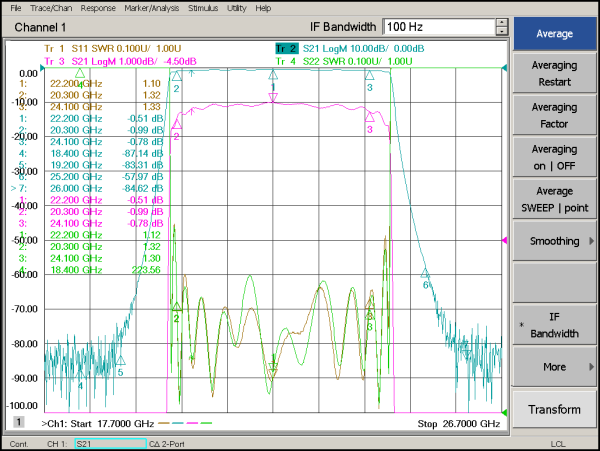

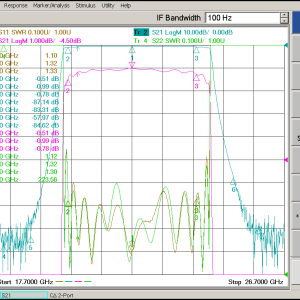

Center Frequency (F0) (MHz)

2220

Min. Pass Band Frequency (MHz)

20300

Max. Pass Band Frequency (MHz)

24100

Pass Band Insertion Loss (dB)

≤2.0dB

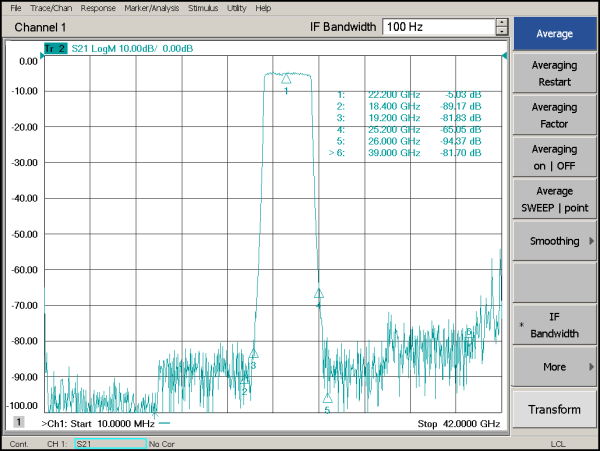

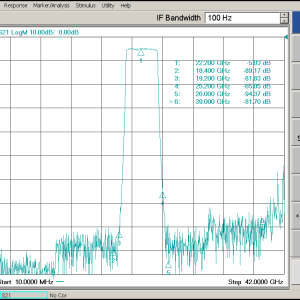

Stop Band Rejection

≥45dB @ 19.2GHz ≥45dB @ 25.2GHz ≥70dB @ 18.4GHz ≥70dB @ 26GHz

Impedance (Ω)

50

Power Handling (W)

≤10W

Connection Type

2.92mm(K)-Female
