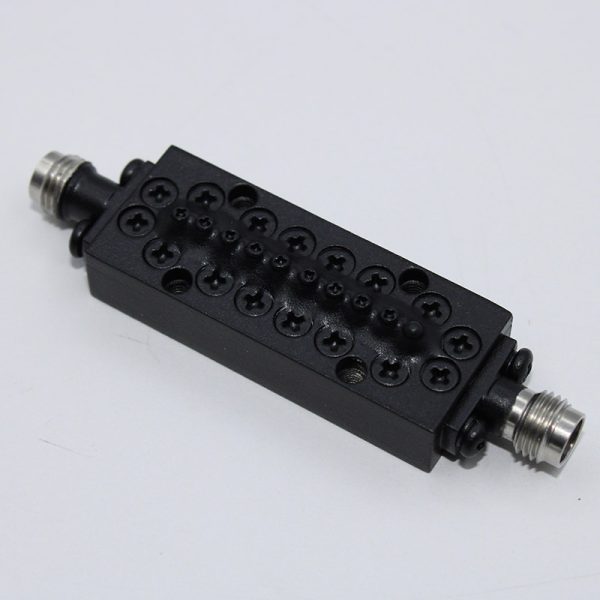

Band pass Filter From 44~50GHz OBP-470000-6000 With SMA-Female Connectors

Band pass Filter From 44~50GHz OBP-470000-6000 With SMA-Female Connectors

Ocean Microwave band-pass filter (Ocean band-pass filter,,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-470000-6000,it’s Center Frequency(F0) is 47GHz, it’s Pass Band Bandwidth is 44~50GHz, it’s Pass Band Insertion Loss is≤1.7dB,Pass Band VSWR≤1.5:1and the Stop Band frequency is ≥45dB @37.5GHz≥45dB @55GHz





Availability: Available on backorder SKU: OBP-470000-6000 Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters

Description

Ocean Microwave band-pass filter (Ocean band-pass filter,,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-470000-6000,it’s Center Frequency(F0) is 47GHz, it’s Pass Band Bandwidth is 44~50GHz, it’s Pass Band Insertion Loss is≤1.7dB,Pass Band VSWR≤1.5:1and the Stop Band frequency is ≥45dB @37.5GHz≥45dB @55GHz

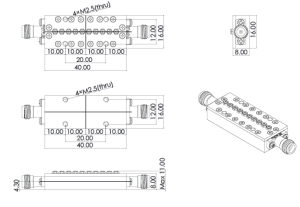

Outline

Band pass Filter From 44~50GHz OBP-470000-6000 With SMA-Female Connectors

Bandpass Filter Datasheet (Click to download)

OBP-470000-6000

Additional information

Center Frequency (F0) (MHz)

47000

Min. Pass Band Frequency (MHz)

44000

Max. Pass Band Frequency (MHz)

50000

Pass Band Insertion Loss (dB)

≤1.7

Stop Band Rejection

≥45dB @ 37.5GHz≥45dB @ 55GHz

Impedance (Ω)

50

Power Handling (W)

≤5

Connection Type

2.4mm(Q)-Female
