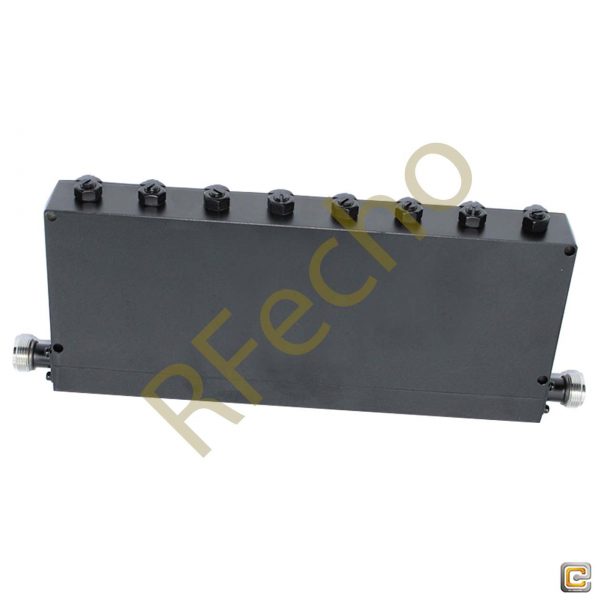

Cavity Band Rejection Filter OBR-940-40

Cavity Band Rejection Filter OBR-940-40

Ocean Microwave Bandstop Filters (Ocean Bandstop Filters,abbreviation:OBR) refer to filters that can pass through most frequency but attenuate some range of frequency to extremely low levels, which is opposite to the concept of band-pass filters. Among them, the notch filter is a special band-stop filter with a very small stop band range and a very high Q Factor.
The product name of this Ocean Bandstop Filters (OBR) is OBR-940-40,its Stop Band Frequencyis 920~960MHz,Stop Band attenuation is 45dB,its Pass Band Frequency is DC~895MHz & 985~2500MHz, and its Pass Band Insertion Loss is 1.5dB. Its Pass Band VSWR is 1.5.

SKU: OBR-940-40 Categories: ,

Description

PDF

Outline

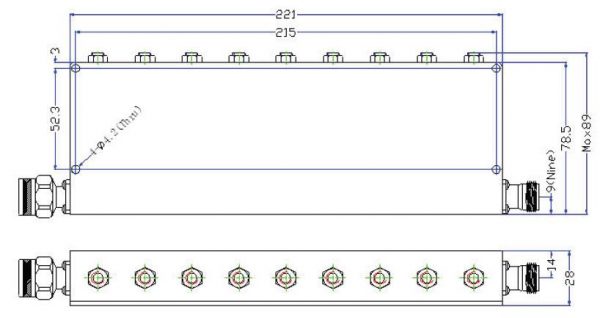

OBR 940 40 outline Cavity Band Rejection Filter OBR-940-40

Plot

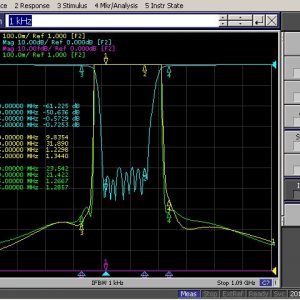

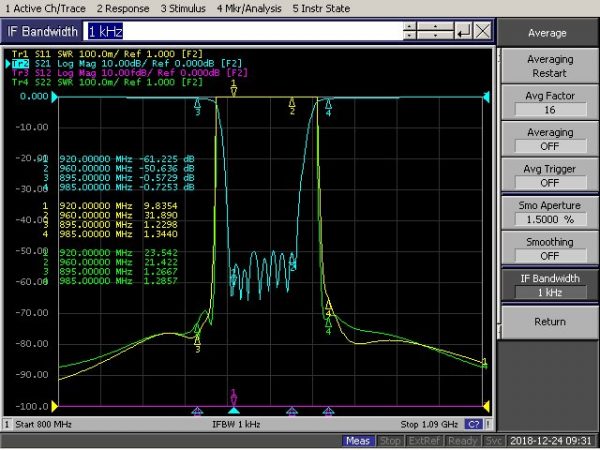

OBR 940 40 plot1 Cavity Band Rejection Filter OBR-940-40

Additional information

Center Frequency (F0) (MHz)

Stop Band Min. Frequency (MHz)

Stop Band Max. Frequency (MHz)

Stop Band Attenuation (dB)

Band Min. Frequency (MHz) A

Band Max. Frequency (MHz) A

Band Min. Frequency (MHz) B

Band Max. Frequency (MHz) B

Pass Band Insertion Loss (dB)

Impedance (Ω)

Power Handling (W)

Connection Type
