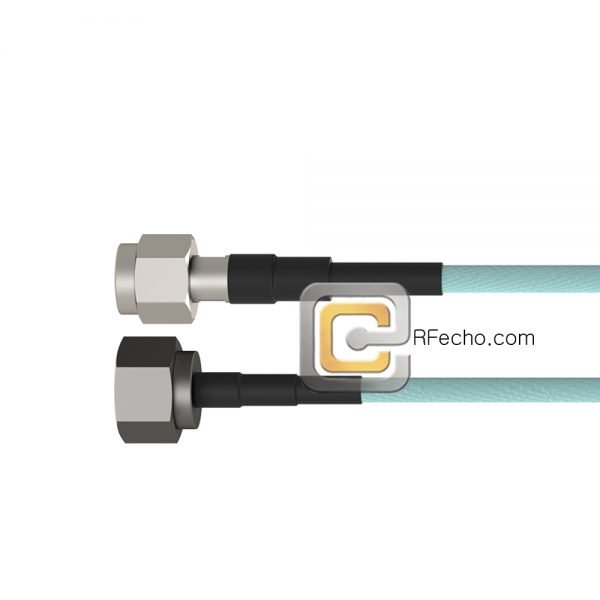

Flexible Low Loss — LL142 RF Cable

$99.72 – $397.39

E-Testing ECO

N male to TNC male · 11 GHz

F038-291S0-411S0-110-N

SKU: F038-291S0-411S0-110-N Categories: E-Testing ECO, LL142, RF Cables

Description

Technical specifications

11 GHzMaximum frequency
LL142Flexible coaxial cable
Ø 4.95 mmBase cable jacket diameter
End A
N male, straight
End B
TNC male, straight
Armour
None
Assembly insertion loss
Confirm for required length and frequency
Base cable bend radius
25.4 mm
Typical cable attenuation at 18 GHz
1.12 dB/m

Cable details

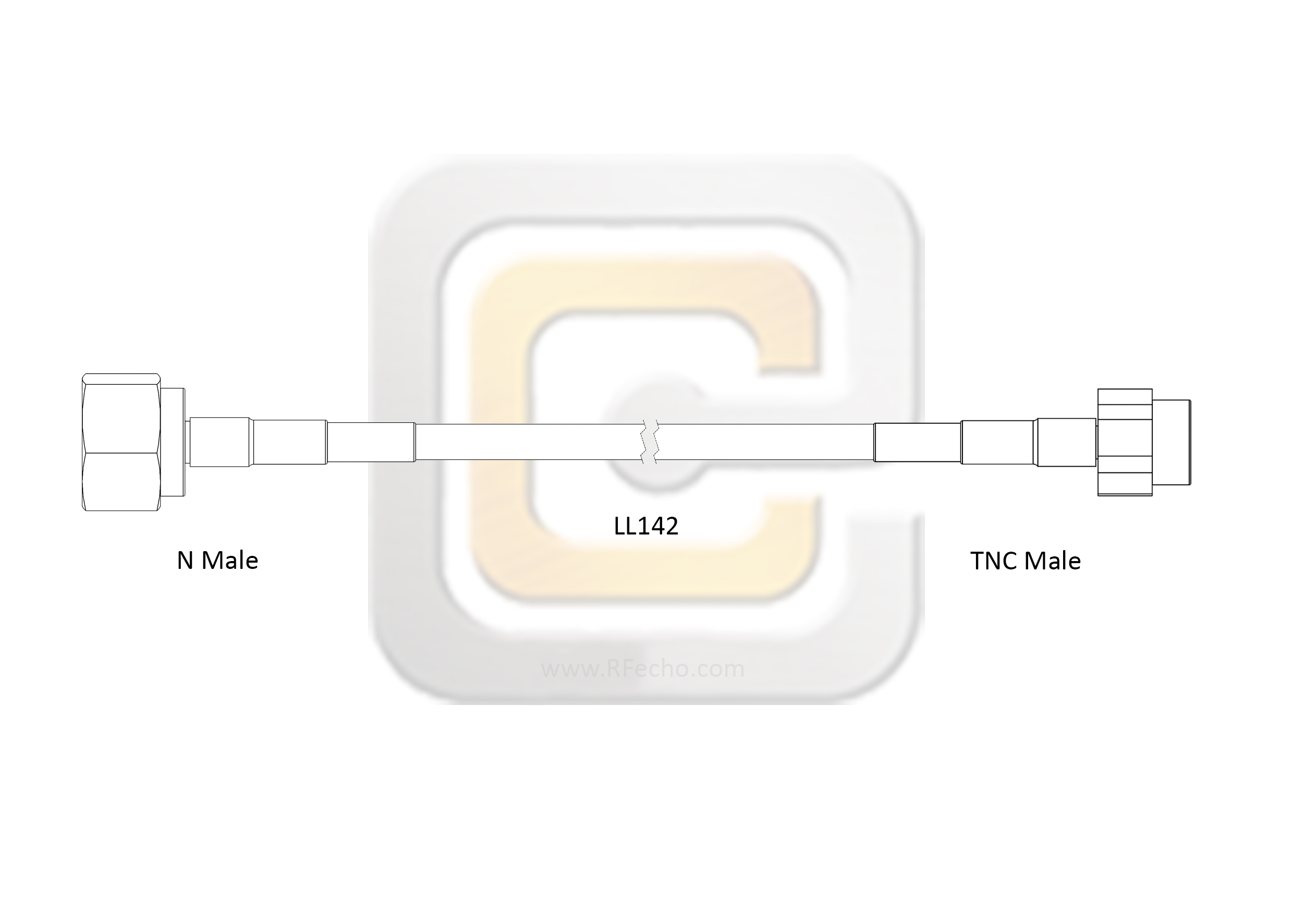

N male — LL142 — TNC male

LL142 plain cable routing
Cable routing · Cable family routing illustration.
N straight male connector close-up
N male · Straight connector.
TNC straight male connector close-up
TNC male · Straight connector.

Cable cutaway

LL142 construction cutaway
Illustrative cable construction. Layer thicknesses are schematic.

Loss versus frequency

LL142 loss versus frequency
Typical base cable attenuation. The assembly frequency rating is listed above. Total insertion loss depends on length, frequency and connectors.
