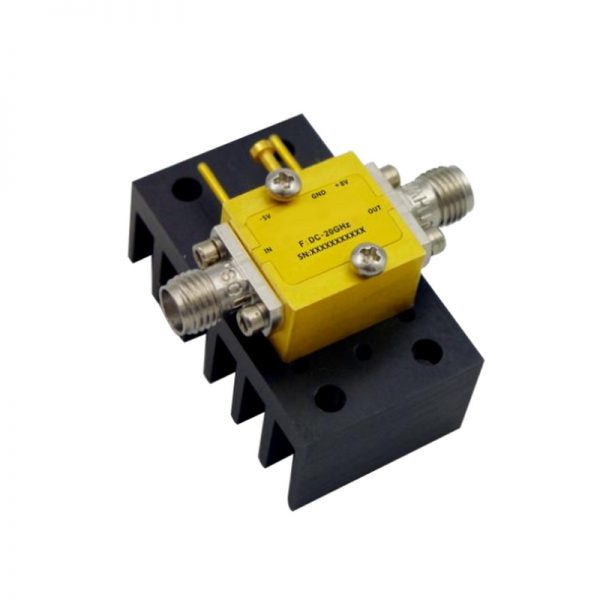

Ultra Wide Band Low Noise Amplifier From 0.01GHz to 20GHz With a Nominal 13dB Gain NF 2.5dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 0.01GHz to 20GHz With a Nominal 13dB Gain NF 2.5dB SMA Connectors

0 out of 5

• Gain: 14dB Typical
• Noise Figure: 2.5dB Typical
• P1dB Output Power : +12dBm Typical
• Supply Voltage: +8V

SKU: OLNA300012000A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 14dB Typical
• Noise Figure: 2.5dB Typical
• P1dB Output Power : +12dBm Typical
• Supply Voltage: +8V



Data Sheet ( Download Datasheet PDF )

044-OLNA300012000A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

0.01

Max. Pass Band Frequency (GHz)

20

Gain (dB)

13

NF (dB)

2.5

P1dB (dBm)

12

IP3 (dBm)

27

VSWR

1.6

"Voltage (VDC)"

8

"Current (mA)"

60

Connection Type

SMA
