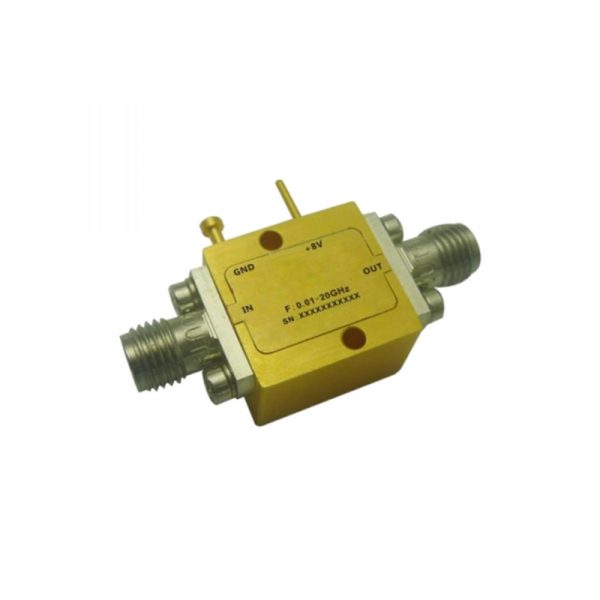

Ultra Wide Band Low Noise Amplifier From 0.01GHz to 20GHz With a Nominal 15dB Gain NF 2.5dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 0.01GHz to 20GHz With a Nominal 15dB Gain NF 2.5dB SMA Connectors

0 out of 5

• Gain: 17dB Typical
• Noise Figure: 2.5dB Typical
• P1dB Output Power: +18dBm Typical
• Supply Voltage: +8V
• 50 Ohm Matched

SKU: OLNA200012000A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 17dB Typical
• Noise Figure: 2.5dB Typical
• P1dB Output Power: +18dBm Typical
• Supply Voltage: +8V
• 50 Ohm Matched



Data Sheet ( Download Datasheet PDF )

213-OLNA200012000A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

0.01

Max. Pass Band Frequency (GHz)

20

Gain (dB)

15

NF (dB)

2.5

P1dB (dBm)

17

IP3 (dBm)

28

VSWR

1.8

"Voltage (VDC)"

8

"Current (mA)"

80

Connection Type

SMA
