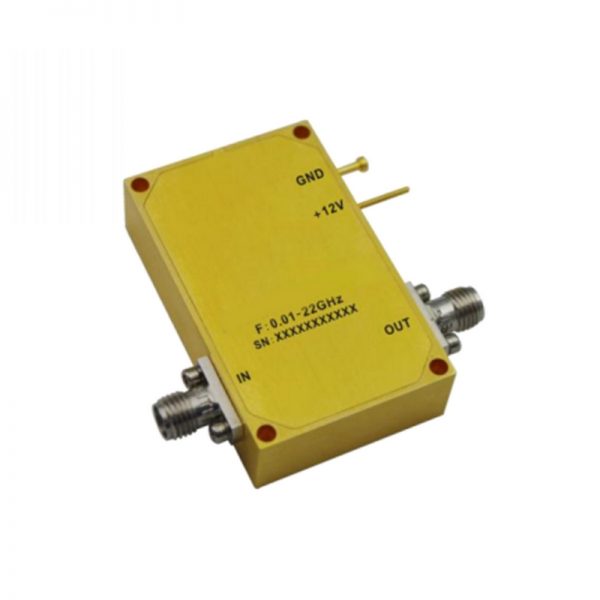

Ultra Wide Band Low Noise Amplifier From 0.01GHz to 22GHz With a Nominal 29dB Gain NF 3.5dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 0.01GHz to 22GHz With a Nominal 29dB Gain NF 3.5dB SMA Connectors

0 out of 5

• Gain: 26dB Typical
• Noise Figure: 3.5dB Typical
• Output power +28dBm typical
• High P1dB: + 23dBm Full Band
• Supply Voltage: +12 V
• 50 Ohm Matched

SKU: OLNA300012200A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 26dB Typical
• Noise Figure: 3.5dB Typical
• Output power +28dBm typical
• High P1dB: + 23dBm Full Band
• Supply Voltage: +12 V
• 50 Ohm Matched



Data Sheet ( Download Datasheet PDF )

061-OLNA300012200A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

0.01

Max. Pass Band Frequency (GHz)

22

Gain (dB)

29

NF (dB)

3.5

P1dB (dBm)

27

IP3 (dBm)

32

VSWR

1.8

"Voltage (VDC)"

12

"Current (mA)"

470

Connection Type

SMA
