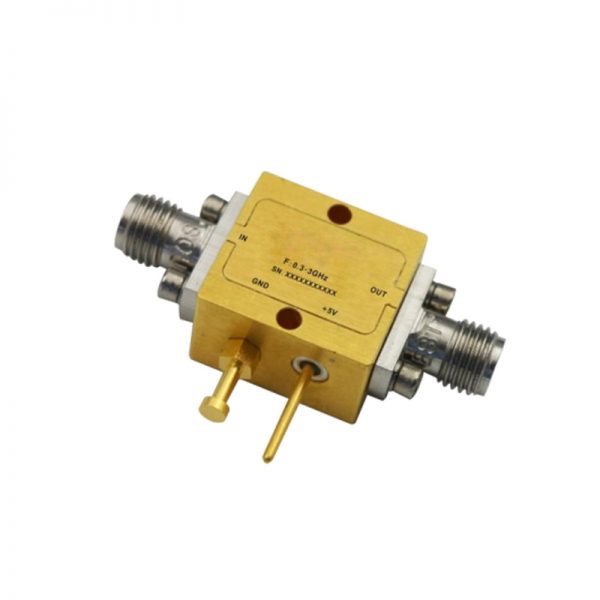

Ultra Wide Band Low Noise Amplifier From 0.3GHz to 3GHz With a Nominal 15dB Gain NF 2.8dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 0.3GHz to 3GHz With a Nominal 15dB Gain NF 2.8dB SMA Connectors

0 out of 5

• Gain:15dB Typical
• Noise Figure:1.5dB Typical
• P1dB Output Power: +21dBm Typical
• Supply Voltage: +5V

SKU: OLNA200300300B Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain:15dB Typical
• Noise Figure:1.5dB Typical
• P1dB Output Power: +21dBm Typical
• Supply Voltage: +5V



Data Sheet ( Download Datasheet PDF )

093-OLNA200300300B



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

0.3

Max. Pass Band Frequency (GHz)

3

Gain (dB)

15

NF (dB)

2.8

P1dB (dBm)

21

IP3 (dBm)

37

VSWR

1.6

"Voltage (VDC)"

5

"Current (mA)"

90

Connection Type

SMA
