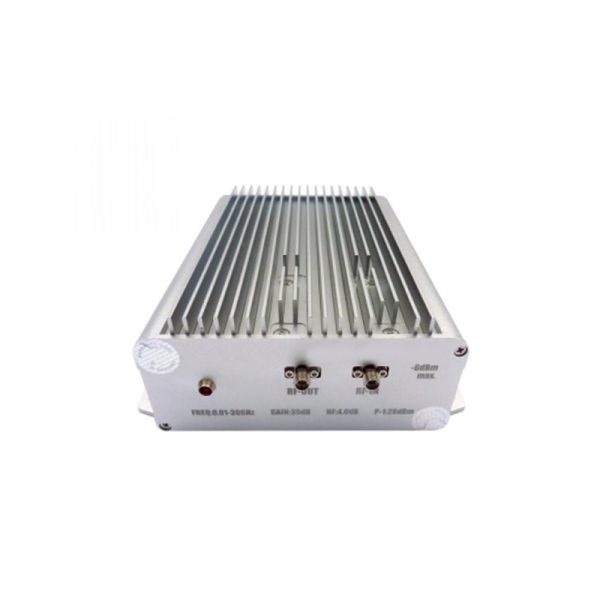

Ultra Wide Band Low Noise Amplifier From 0.01GHz to 3GHz With a Nominal 36dB Gain NF 2.5dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 0.01GHz to 3GHz With a Nominal 36dB Gain NF 2.5dB SMA Connectors

0 out of 5

• High Output Power > 20dBm.
• High peak to average handling capability.
• High linearity and low noise figure.
• Convenient AC Power Input. (AC 110V/220V)
• Integrated Heat Sink and Fan.

SKU: OACLA00010300C Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• High Output Power > 20dBm.
• High peak to average handling capability.
• High linearity and low noise figure.
• Convenient AC Power Input. (AC 110V/220V)
• Integrated Heat Sink and Fan.



Data Sheet ( Download Datasheet PDF )

116-OACLA00010300C



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

0.01

Max. Pass Band Frequency (GHz)

3

Gain (dB)

36

NF (dB)

2.5

P1dB (dBm)

21

IP3 (dBm)

36

VSWR

1.8

"Voltage (VDC)"

AC110-220V

Connection Type

SMA
