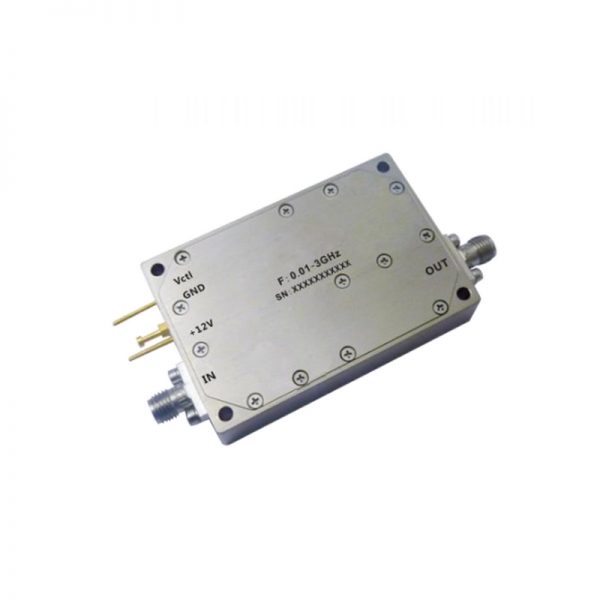

Ultra Wide Band Low Noise Amplifier From 0.01GHz to 3GHz With a Nominal 54dB Gain NF 1.5dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 0.01GHz to 3GHz With a Nominal 54dB Gain NF 1.5dB SMA Connectors

• Gain: 45dB Typical
• Noise Figure: 3.0dB Typical
• Output P1dB : +18dBm Typical
• Supply Voltage: +12V
• 50 Ohm Matched

SKU: OLNA300010300A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 45dB Typical
• Noise Figure: 3.0dB Typical
• Output P1dB : +18dBm Typical
• Supply Voltage: +12V
• 50 Ohm Matched



Data Sheet ( Download Datasheet PDF )

211-OLNA300010300A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

0.01

Max. Pass Band Frequency (GHz)

3

Gain (dB)

54

NF (dB)

1.5

P1dB (dBm)

18

IP3 (dBm)

30

VSWR

2

"Voltage (VDC)"

12

"Current (mA)"

300

Connection Type

SMA
