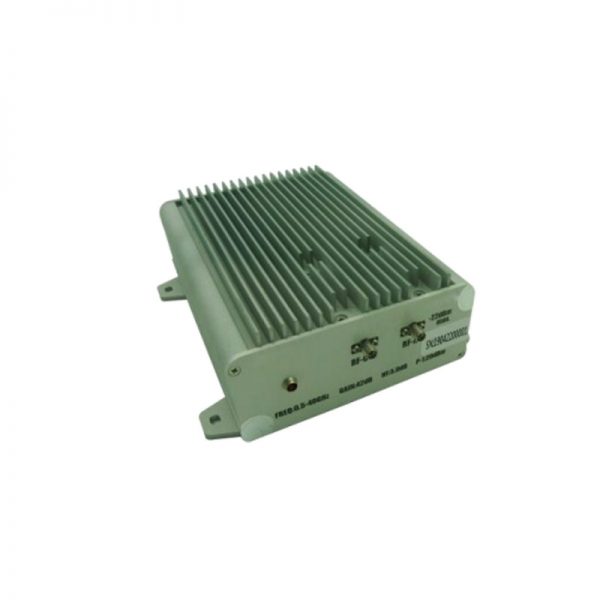

Ultra Wide Band Low Noise Amplifier From 0.5GHz to 40GHz With a Nominal 45dB Gain NF 4dB 2.92mm-F Connectors

Ultra Wide Band Low Noise Amplifier From 0.5GHz to 40GHz With a Nominal 45dB Gain NF 4dB 2.92mm-F Connectors

• High Output Power18dBmTypical.
• High peak to average handling capability.
• High linearity and low noise figure.
• Convenient AC Power Input. (AC 110V/220V)
• Integrated Heat Sink and Fan.

SKU: OACLA00504000B Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• High Output Power18dBmTypical.
• High peak to average handling capability.
• High linearity and low noise figure.
• Convenient AC Power Input. (AC 110V/220V)
• Integrated Heat Sink and Fan.



Data Sheet ( Download Datasheet PDF )

194-OACLA00504000B



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

0.5

Max. Pass Band Frequency (GHz)

40

Gain (dB)

45

NF (dB)

4

P1dB (dBm)

18

IP3 (dBm)

27

VSWR

1.6

"Voltage (VDC)"

110-220V

"Current (mA)"

120

Connection Type

2.92mm-F
