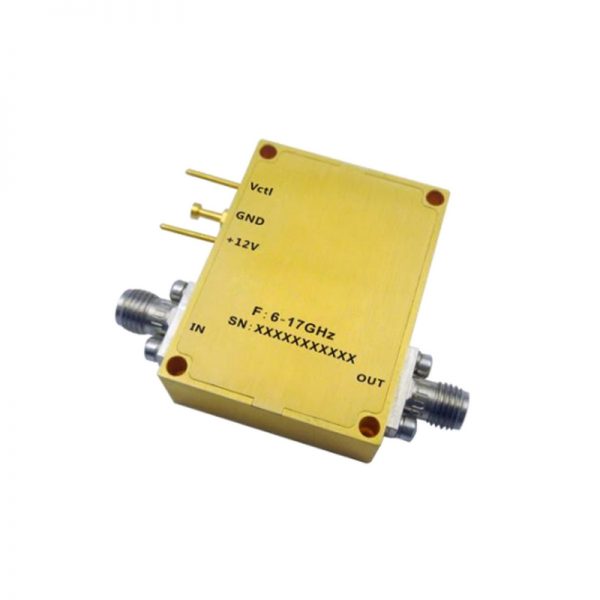

Ultra Wide Band Low Noise Amplifier From 6GHz to 17GHz With a Nominal 40dB Gain NF 2dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 6GHz to 17GHz With a Nominal 40dB Gain NF 2dB SMA Connectors

• Gain: 18dB Typical
• Noise Figure: 3.0dB Typical
• Output P1dB : +21dBm Typical
• PSAT Output Power: 22dBm
• Supply Voltage: +5V

SKU: OLNA206001700B Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 18dB Typical
• Noise Figure: 3.0dB Typical
• Output P1dB : +21dBm Typical
• PSAT Output Power: 22dBm
• Supply Voltage: +5V



Data Sheet ( Download Datasheet PDF )

209-OLNA206001700B



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

6

Max. Pass Band Frequency (GHz)

17

Gain (dB)

40

NF (dB)

2

P1dB (dBm)

21

IP3 (dBm)

26

VSWR

2

"Voltage (VDC)"

12

"Current (mA)"

160

Connection Type

SMA
