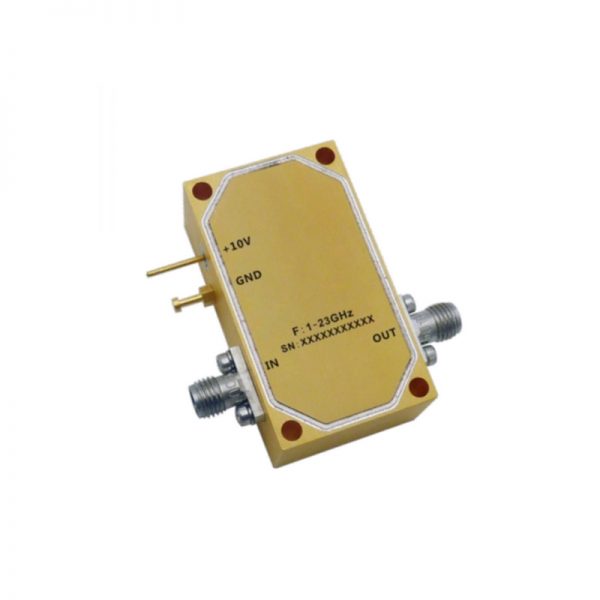

Ultra Wide Band Low Noise Amplifier From 1GHz to 23GHz With a Nominal 16dB Gain NF 5dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 1GHz to 23GHz With a Nominal 16dB Gain NF 5dB SMA Connectors

0 out of 5

• Gain: 15dBTypical
• Output Power +23dBm Typical
• High P1dB: +15dBm Full Band
• Supply Voltage: +10V

SKU: OLNA301002300C Categories: Low Noise Amplifier, Routing

Description

Key Specifications

• Gain: 15dBTypical
• Output Power +23dBm Typical
• High P1dB: +15dBm Full Band
• Supply Voltage: +10V



Data Sheet ( Download Datasheet PDF )

224-OLNA301002300C



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

1

Max. Pass Band Frequency (GHz)

23

Gain (dB)

16

NF (dB)

5

P1dB (dBm)

15

IP3 (dBm)

29

"Voltage (VDC)"

10

"Current (mA)"

125

Connection Type

SMA
