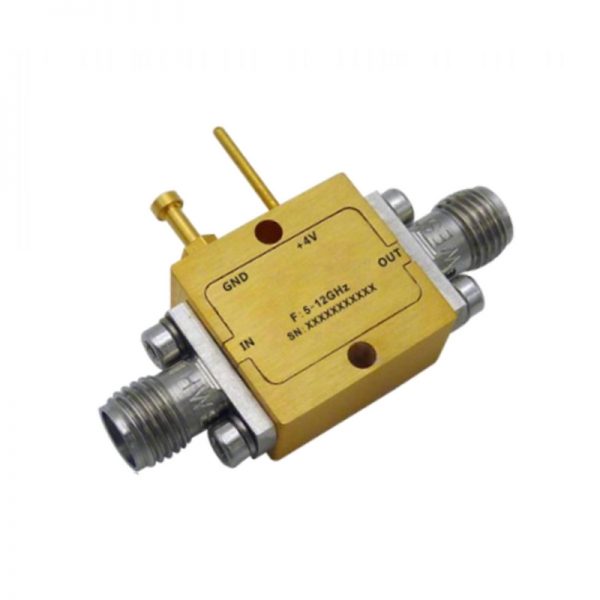

Ultra Wide Band Low Noise Amplifier From 5GHz to 12GHz With a Nominal 28dB Gain NF 1.5dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 5GHz to 12GHz With a Nominal 28dB Gain NF 1.5dB SMA Connectors

0 out of 5

• Gain: 29dB Typical
• Noise Figure: 1.5dB Typical
• P1dB Output Power: +12.5dBm Typical
• Supply Voltage: +4V

SKU: OLNA205001100A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 29dB Typical
• Noise Figure: 1.5dB Typical
• P1dB Output Power: +12.5dBm Typical
• Supply Voltage: +4V



Data Sheet ( Download Datasheet PDF )

218-OLNA205001100A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

5

Max. Pass Band Frequency (GHz)

12

Gain (dB)

28

NF (dB)

1.5

P1dB (dBm)

13.5

IP3 (dBm)

25

VSWR

1.6

"Voltage (VDC)"

4

"Current (mA)"

45

Connection Type

SMA
