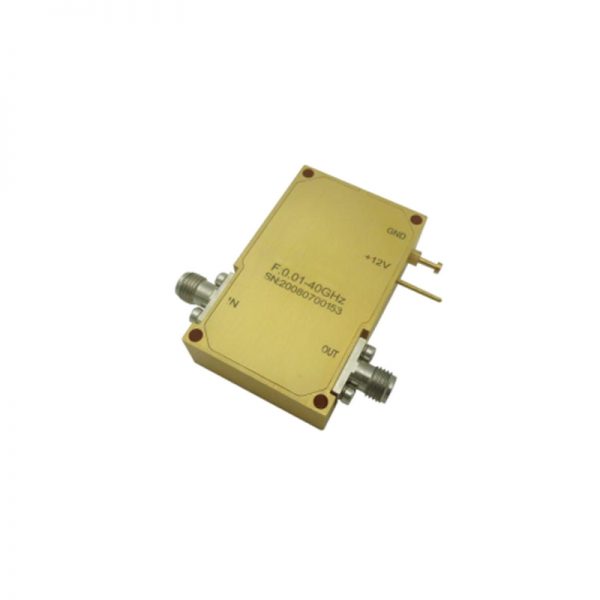

Ultra Wide Band Low Noise Amplifier From 0.01GHz to 40GHz With a Nominal 25dB Gain NF 6.5dB 2.92mm Connectors

Ultra Wide Band Low Noise Amplifier From 0.01GHz to 40GHz With a Nominal 25dB Gain NF 6.5dB 2.92mm Connectors

0 out of 5

• Gain: 30dB Typical
• Noise Figure: 5.0dB Typical
• P1dB Output Power: 21dBm Typical
• Supply Voltage: +12V

SKU: OLNA400014000A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 30dB Typical
• Noise Figure: 5.0dB Typical
• P1dB Output Power: 21dBm Typical
• Supply Voltage: +12V



Data Sheet ( Download Datasheet PDF )

099-OLNA400014000A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

0.01

Max. Pass Band Frequency (GHz)

40

Gain (dB)

25

NF (dB)

6.5

P1dB (dBm)

16

IP3 (dBm)

23

VSWR

2

"Voltage (VDC)"

12

"Current (mA)"

400

Connection Type

2.92mm
