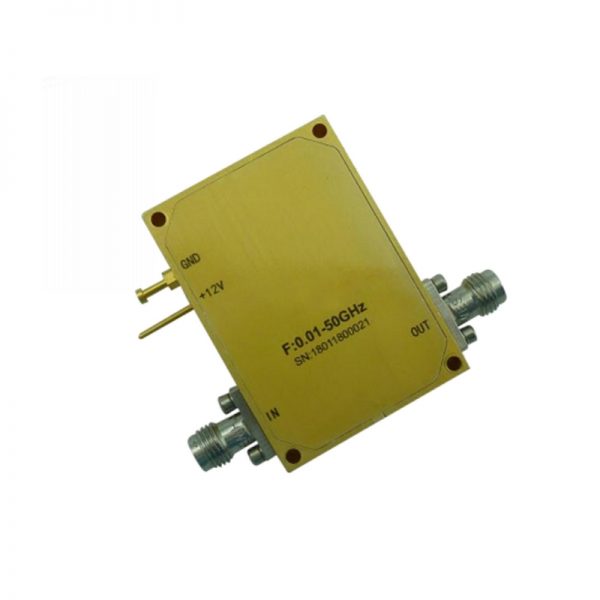

Ultra Wide Band Low Noise Amplifier From 0.01GHz to 50GHz With a Nominal 45dB Gain NF 4dB 2.4mm Connectors

Ultra Wide Band Low Noise Amplifier From 0.01GHz to 50GHz With a Nominal 45dB Gain NF 4dB 2.4mm Connectors

0 out of 5

• Gain: 45dB Typical
• Noise Figure: 4.0dB Typical
• P1dB Output Power: +21dBm Typical
• Supply Voltage: +12V @ 550mA
• 50 Ohm Matched

SKU: OLNA400015000A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 45dB Typical
• Noise Figure: 4.0dB Typical
• P1dB Output Power: +21dBm Typical
• Supply Voltage: +12V @ 550mA
• 50 Ohm Matched



Data Sheet ( Download Datasheet PDF )

104-OLNA400015000A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

0.01

Max. Pass Band Frequency (GHz)

50

Gain (dB)

45

NF (dB)

4

P1dB (dBm)

18

IP3 (dBm)

30

VSWR

2

"Voltage (VDC)"

12

"Current (mA)"

550

Connection Type

2.4mm
