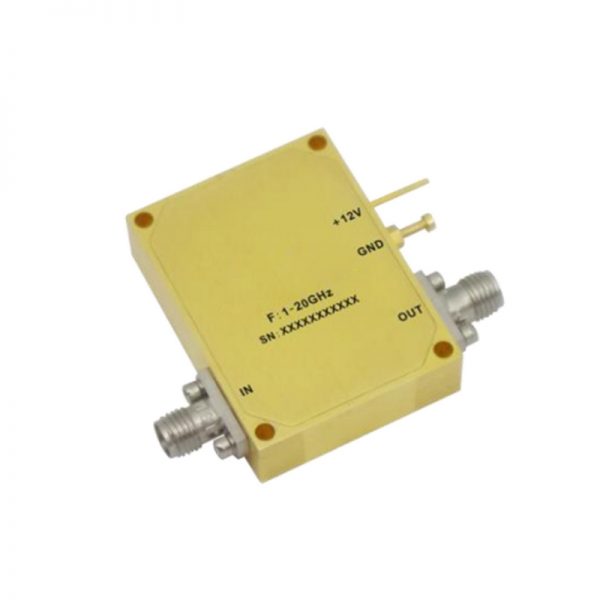

Ultra Wide Band Low Noise Amplifier From 1GHz to 20GHz With a Nominal 30dB Gain NF 9dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 1GHz to 20GHz With a Nominal 30dB Gain NF 9dB SMA Connectors

0 out of 5

• Gain:35dB Typical
• Noise Figure:5dB Typical
• P1dB Output Power: +14dB m Typical
• Supply Voltage: +12V @ 190mA
• 50 Ohm Matched Input / Output

SKU: OLNA501002000A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain:35dB Typical
• Noise Figure:5dB Typical
• P1dB Output Power: +14dB m Typical
• Supply Voltage: +12V @ 190mA
• 50 Ohm Matched Input / Output



Data Sheet ( Download Datasheet PDF )

121-OLNA501002000A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

1

Max. Pass Band Frequency (GHz)

20

Gain (dB)

30

NF (dB)

9

P1dB (dBm)

10

IP3 (dBm)

16

VSWR

1.5

"Voltage (VDC)"

12

"Current (mA)"

190

Connection Type

SMA
