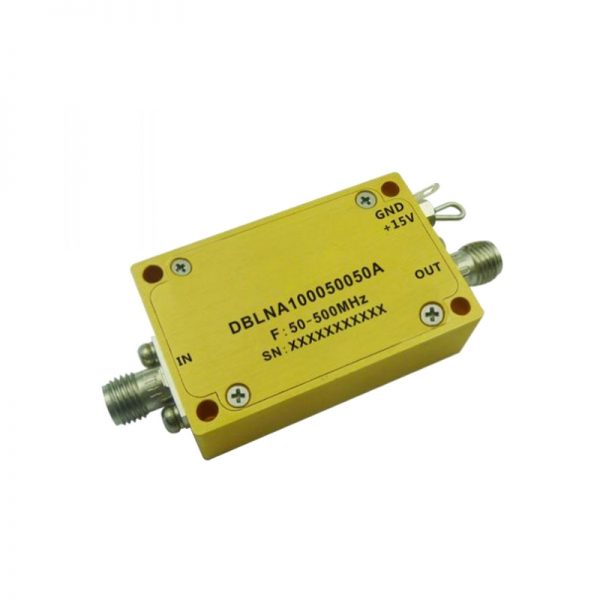

Ultra Wide Band Low Noise Amplifier From 0.05GHz to 0.5GHz With a Nominal 50dB Gain NF 0.8dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 0.05GHz to 0.5GHz With a Nominal 50dB Gain NF 0.8dB SMA Connectors

• Gain: 50dB Typical
• Noise Figure: 0.45dB Typical
• P1dB Output Power: +21dBmTypical
• Supply Voltage: +15V/220mA
• 50 Ohm Matched

SKU: OLNA100050050A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 50dB Typical
• Noise Figure: 0.45dB Typical
• P1dB Output Power: +21dBmTypical
• Supply Voltage: +15V/220mA
• 50 Ohm Matched



Data Sheet ( Download Datasheet PDF )

159-OLNA100050050A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

0.05

Max. Pass Band Frequency (GHz)

0.5

Gain (dB)

50

NF (dB)

0.8

P1dB (dBm)

20

IP3 (dBm)

32

VSWR

2

"Voltage (VDC)"

15

"Current (mA)"

220

Connection Type

SMA
