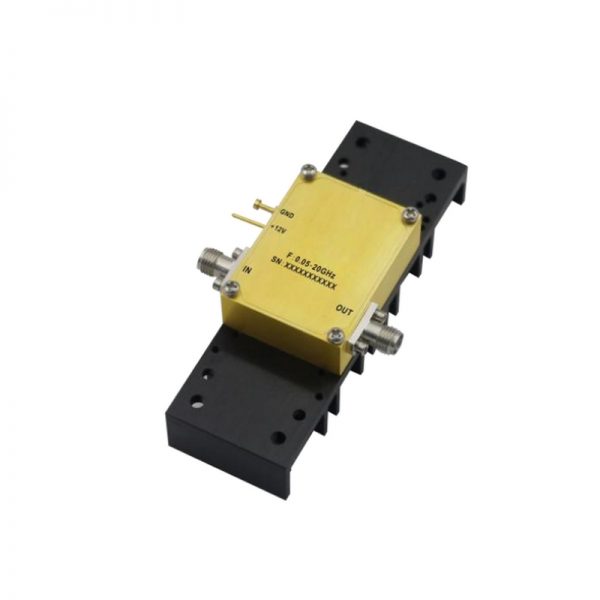

Ultra Wide Band Low Noise Amplifier From 0.05GHz to 20GHz With a Nominal 28dB Gain NF 1.8dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 0.05GHz to 20GHz With a Nominal 28dB Gain NF 1.8dB SMA Connectors

0 out of 5

• Gain: 28dB Typical
• Functional Bandwidth : 0.05GHz to 22GHz
• Noise Figure: 1.8dB Typical
• P1dB Output Power: 16dBm Typical
• Supply Voltage: +12V @ 130mA
• 50 Ohm Matched

SKU: OLNA200052000C Categories: Low Noise Amplifier, Routing

Description

Key Specifications

• Gain: 28dB Typical
• Functional Bandwidth : 0.05GHz to 22GHz
• Noise Figure: 1.8dB Typical
• P1dB Output Power: 16dBm Typical
• Supply Voltage: +12V @ 130mA
• 50 Ohm Matched



Data Sheet ( Download Datasheet PDF )

045-OLNA200052000C



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

0.05

Max. Pass Band Frequency (GHz)

20

Gain (dB)

28

NF (dB)

1.8

P1dB (dBm)

16

IP3 (dBm)

27

VSWR

1.5

"Voltage (VDC)"

12

"Current (mA)"

130

Connection Type

SMA
