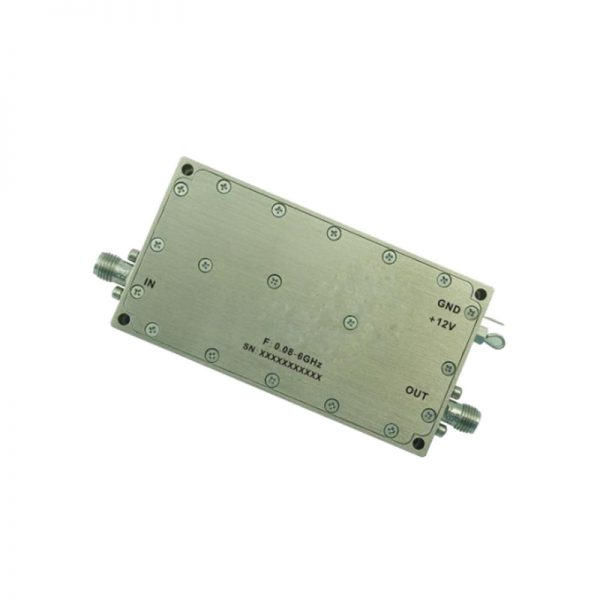

Ultra Wide Band Low Noise Amplifier From 0.08GHz to 6GHz With a Nominal 46dB Gain NF 3dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 0.08GHz to 6GHz With a Nominal 46dB Gain NF 3dB SMA Connectors

0 out of 5

• Gain: 42dB Typical
• Noise Figure: 2.5dB Typical
• P1dB Output Power: 25dBm Typical
• Supply Voltage: +12V @ 380mA
• 50 Ohm Matched Input / OutputSize: 2.92” x 1.58” x 0.47”

SKU: OLNA300080600A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 42dB Typical
• Noise Figure: 2.5dB Typical
• P1dB Output Power: 25dBm Typical
• Supply Voltage: +12V @ 380mA
• 50 Ohm Matched Input / OutputSize: 2.92” x 1.58” x 0.47”



Data Sheet ( Download Datasheet PDF )

161-OLNA300080600A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

0.08

Max. Pass Band Frequency (GHz)

6

Gain (dB)

46

NF (dB)

3

P1dB (dBm)

25

IP3 (dBm)

33

VSWR

1.8

"Voltage (VDC)"

12

"Current (mA)"

380

Connection Type

SMA
