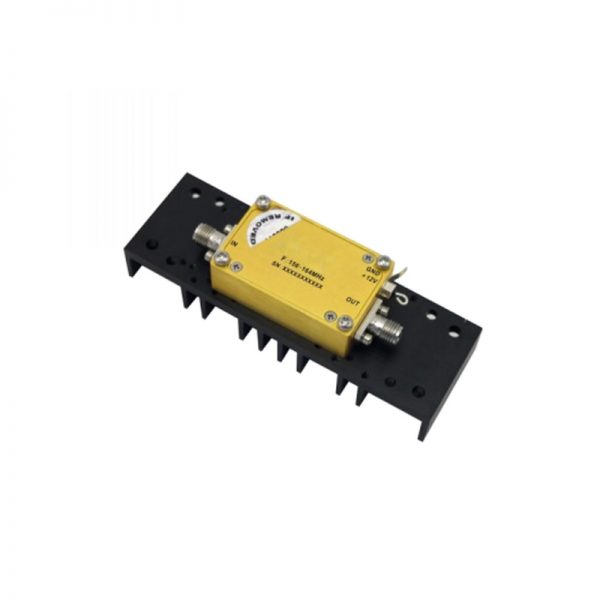

Ultra Wide Band Low Noise Amplifier From 0.156GHz to 0.164GHz With a Nominal 50dB Gain NF 1dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 0.156GHz to 0.164GHz With a Nominal 50dB Gain NF 1dB SMA Connectors

0 out of 5

• Gain: 55dB Typical
• Noise Figure: 0.7 Typical
• P1dB Output Power: +22dBm Typical
• Supply Voltage: +12V
• 50 Ohm Matched Input / Output

SKU: OLNA100150016A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 55dB Typical
• Noise Figure: 0.7 Typical
• P1dB Output Power: +22dBm Typical
• Supply Voltage: +12V
• 50 Ohm Matched Input / Output



Data Sheet ( Download Datasheet PDF )

155-OLNA100150016A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

0.156

Max. Pass Band Frequency (GHz)

0.164

Gain (dB)

50

NF (dB)

1

P1dB (dBm)

21

IP3 (dBm)

34

VSWR

1.8

"Voltage (VDC)"

12

"Current (mA)"

260

Connection Type

SMA
