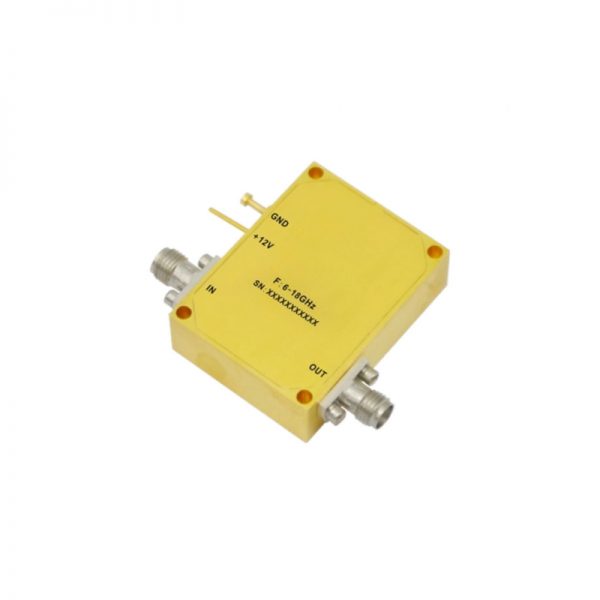

Ultra Wide Band Low Noise Amplifier From 6GHz to 18GHz With a Nominal 39dB Gain NF 2.5dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 6GHz to 18GHz With a Nominal 39dB Gain NF 2.5dB SMA Connectors

0 out of 5

• Gain: 39 dB Typical
• Noise Figure: 2.2 dB Typical
• P1dB Output Power: +28dBmTypical
• Supply Voltage: +12 V
• 50 Ohm Matched Input / Output
• Size: 1.57” x 1.18” x0.47”

SKU: OLNA306001800J Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 39 dB Typical
• Noise Figure: 2.2 dB Typical
• P1dB Output Power: +28dBmTypical
• Supply Voltage: +12 V
• 50 Ohm Matched Input / Output
• Size: 1.57” x 1.18” x0.47”



Data Sheet ( Download Datasheet PDF )

130-OLNA306001800J



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

6

Max. Pass Band Frequency (GHz)

18

Gain (dB)

39

NF (dB)

2.5

P1dB (dBm)

28

IP3 (dBm)

39

VSWR

1.8

"Voltage (VDC)"

12

"Current (mA)"

500

Connection Type

SMA
